Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Remove the push-pin retainer from the trim panel.
  3. Close the liftgate window.
  4. Open the liftgate.
    Fig 1: Removing Screw Retaining Pullstrap To Liftgate Trim Panel
    G01719015Courtesy of GENERAL MOTORS CORP.
  5. Remove the screw that retains the pullstrap to the liftgate trim panel.
  6. Remove the pullstrap from the liftgate trim panel.
  7. Use a flat-bladed tool in order to carefully release the trim panel retainers.

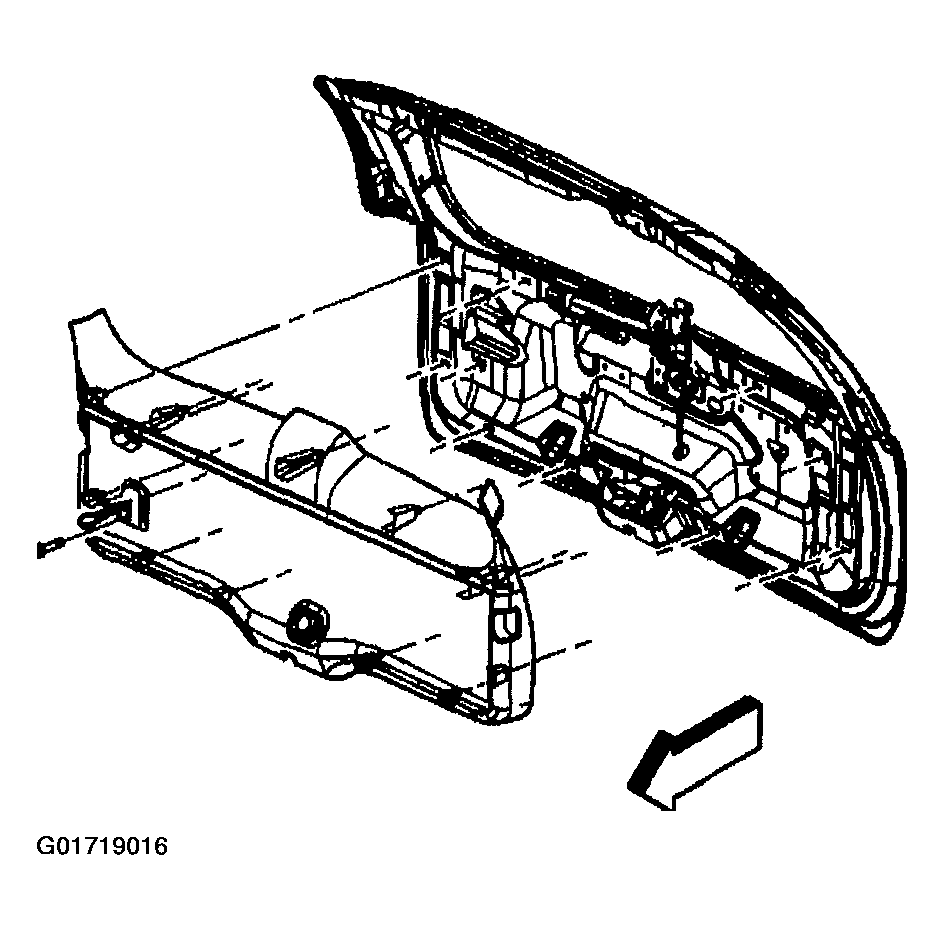

    8. Fig 2: Removing Trim Panel From The Liftgate
    G01719016Courtesy of GENERAL MOTORS CORP.
  8. Remove the trim panel from the liftgate.
