Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

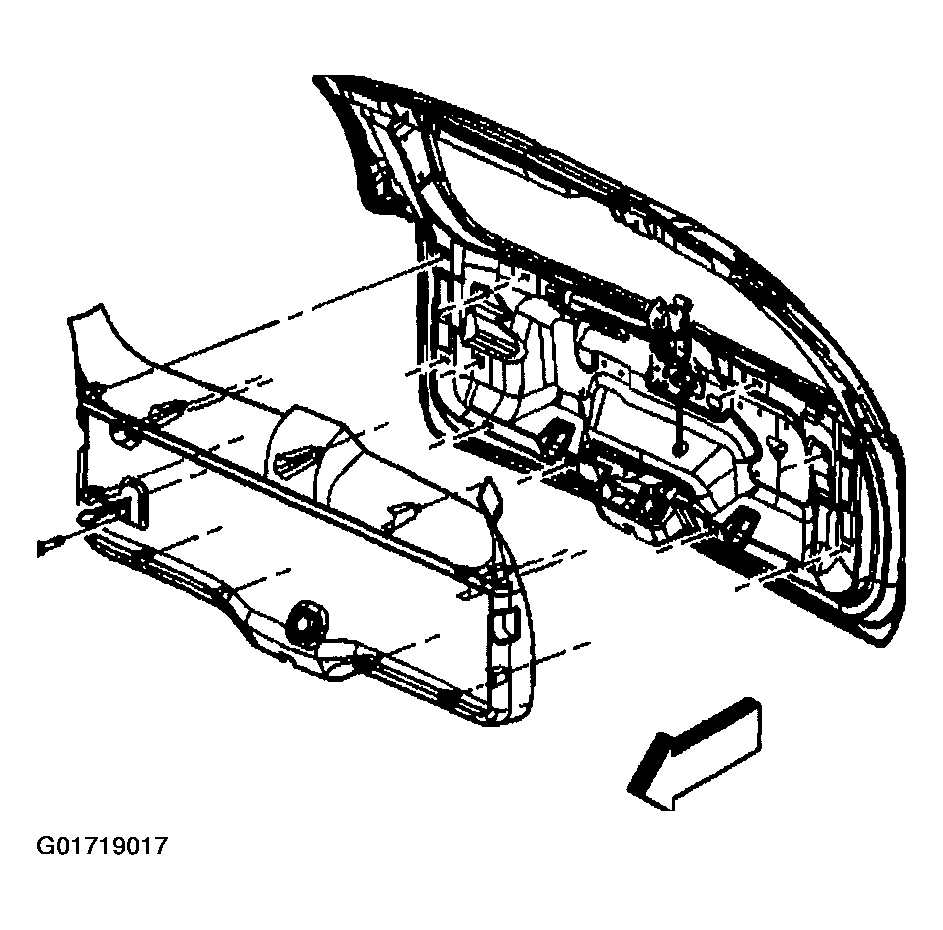

    Fig 1: Installing Trim Panel To Liftgate
    G01719017Courtesy of GENERAL MOTORS CORP.
  1. Install the trim panel to the liftgate.
  2. Ensure that the trim panel retainers are fully seated.
  3. Install the pullstrap to the trim panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
    4. Fig 2: Installing Screw Retains
    G01719018Courtesy of GENERAL MOTORS CORP.
  4. Install the screw that retains the pullstrap to the trim panel.

    Tighten

    Tighten the pullstrap screw to 4 N.m (35 lb in).

  5. Close the liftgate.
  6. Open the liftgate window.
  7. Install the push-pin retainer.
  8. Close the liftgate window.
