Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the posslbility of damage to the vehicle or personal injury.
  1. Open and support the liftgate.
    NOTE: Refer to Liftgate/Hood Assist Rod CAUTIONS & NOTICES Notice in Cautions and Notices.
  2. Lift up the retainer clips on the liftgate struts using a small flat-bladed tool.
  3. Remove the upper end of the liftgate struts from the ball joint.
  4. Remove the lower end of the liftgate struts from the ball joint.
  5. Remove the liftgate struts from the liftgate.

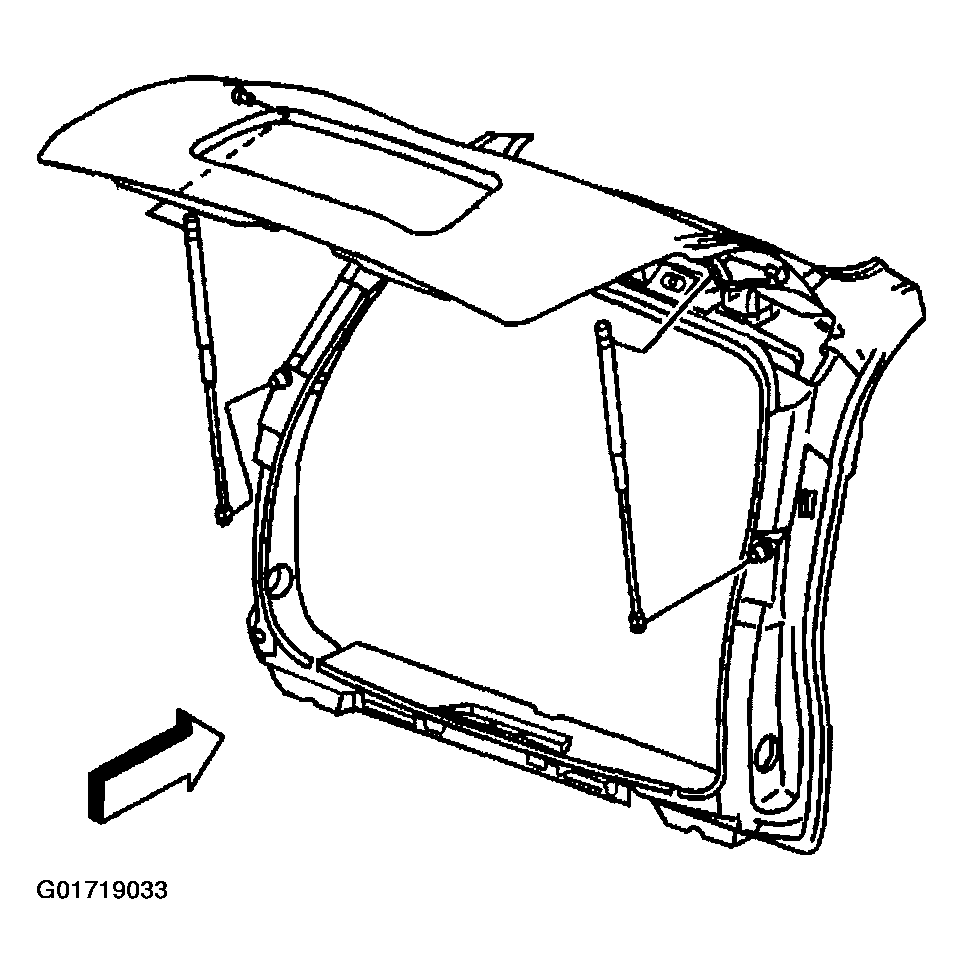

    Fig 1: Removing Liftgate Struts From Liftgate
    G01719033Courtesy of GENERAL MOTORS CORP.
