Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Apply pressure only at the end of the hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

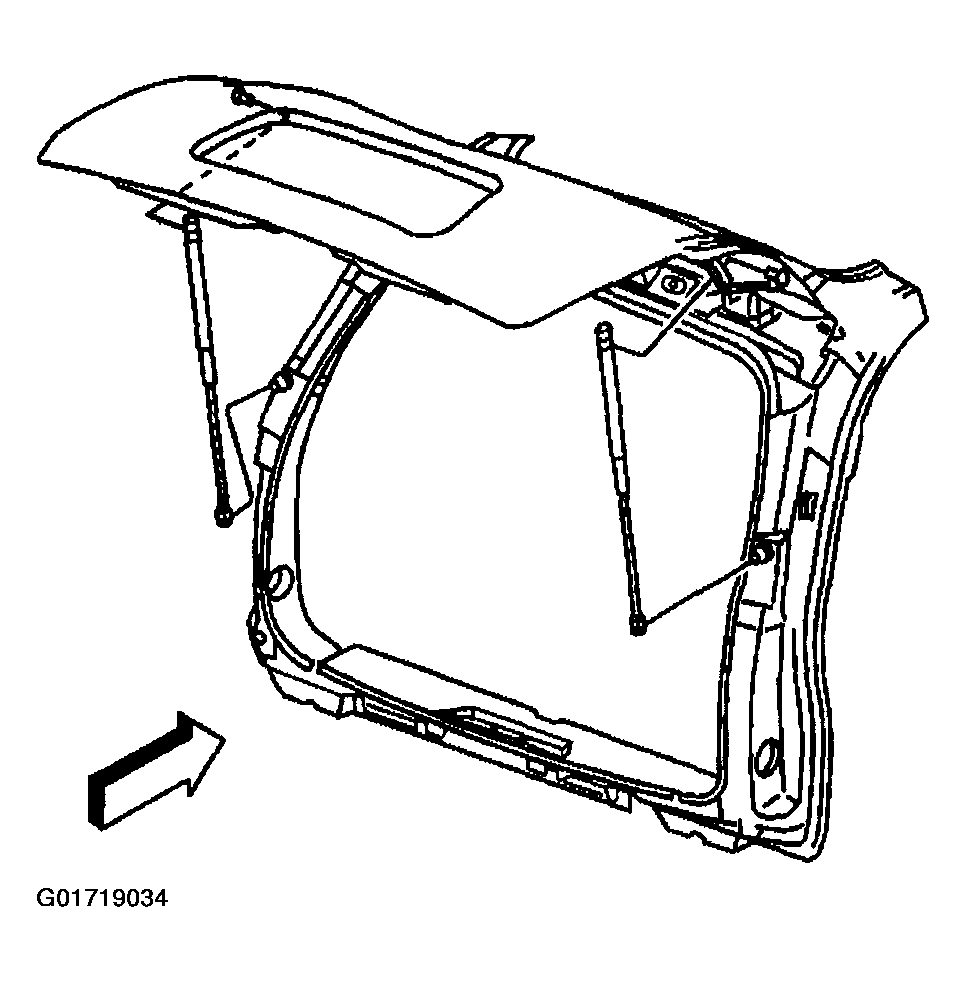

Fig 1: Positioning Liftgate Struts To Liftgate
G01719034Courtesy of GENERAL MOTORS CORP.
  1. Position the liftgate struts to the liftgate.
  2. Install the upper end of the liftgate struts to the ball joint. Press in to place until fully seated.
  3. Install the lower end of the liftgate struts to the ball joint. Press in to place until fully seated.
  4. Remove the support device from the liftgate.
  5. Close the liftgate.
