Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the liftgate window.
    NOTE: Refer to CAUTIONS & NOTICES Liftgate/Hood Assist Rod Notice in Cautions and Notices.
  2. Lift up the retainer clips on the liftgate window struts using a small flat-bladed tool.
  3. Remove the upper end of the liftgate window struts from the ball joint.
  4. Remove the lower end of the liftgate window struts from the ball joint.
  5. Remove the liftgate window struts from the liftgate window.

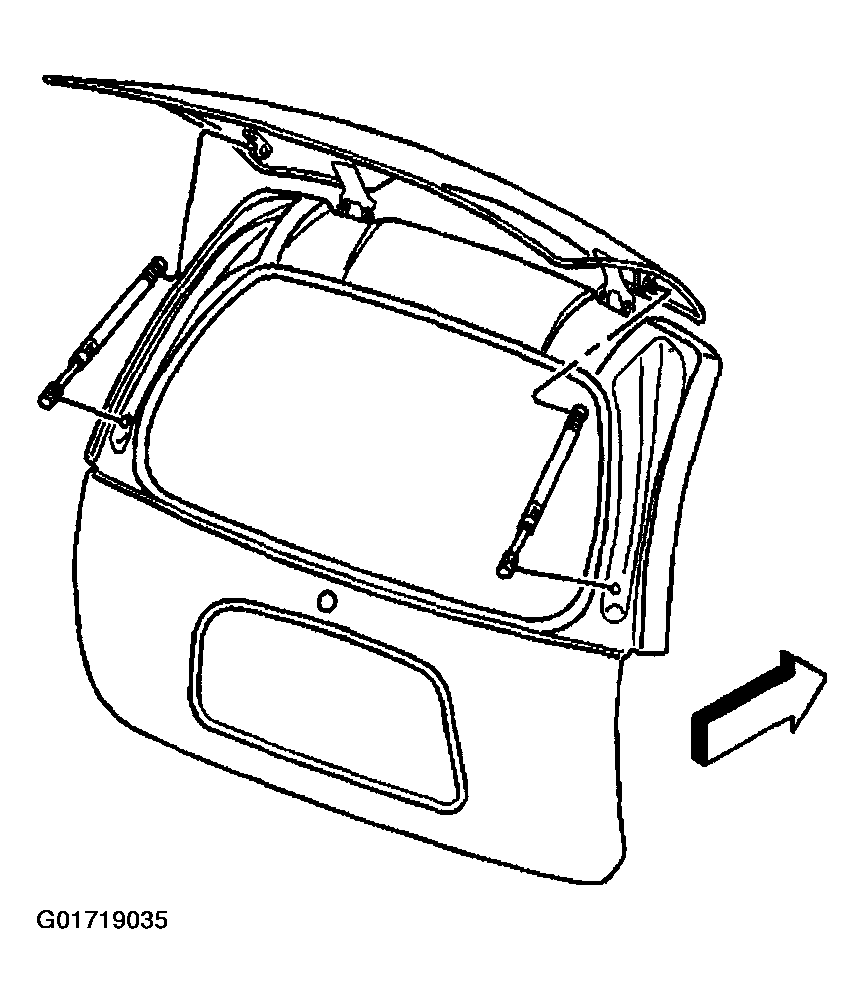

    Fig 1: Removing Liftgate Window Struts From Liftgate Window
    G01719035Courtesy of GENERAL MOTORS CORP.
