Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Apply pressure only at the end of the hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

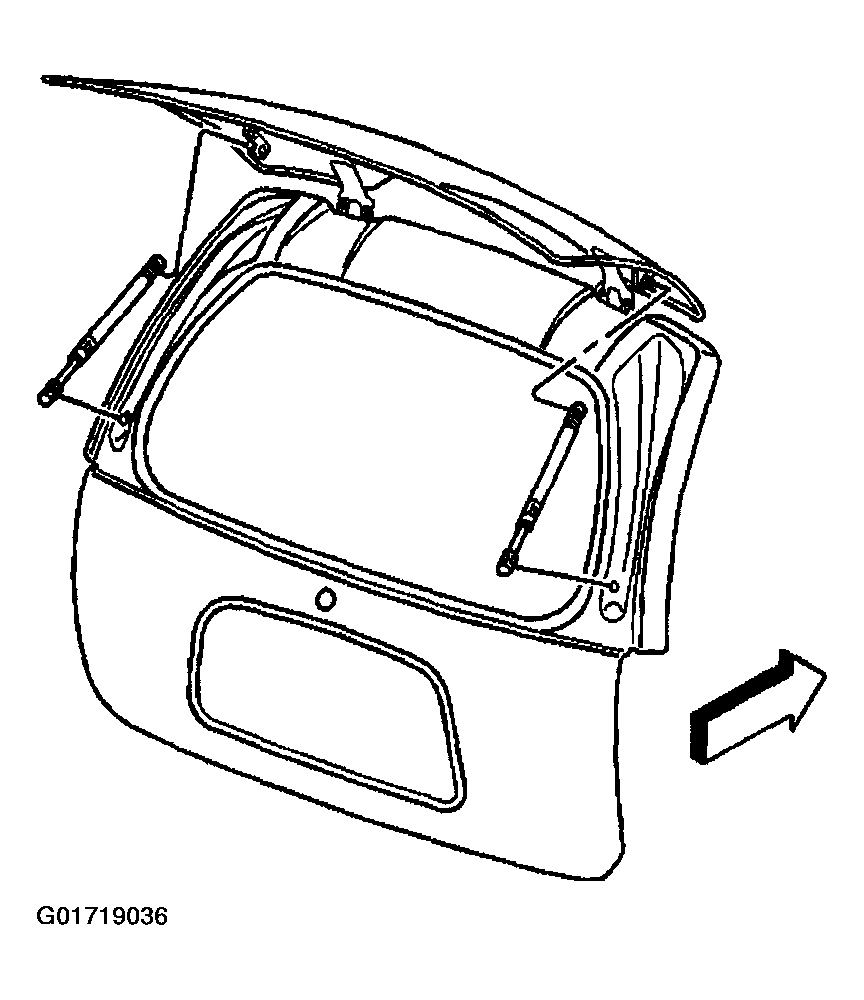

Fig 1: Positioning Liftgate Window Struts To Liftgate Window
G01719036Courtesy of GENERAL MOTORS CORP.
  1. Position the liftgate window struts to the liftgate window.
  2. Install the upper end of the liftgate window struts to the ball joint. Press in to place until fully seated.
  3. Install the lower end of the liftgate window struts to the ball joint. Press in to place until fully seated.
  4. Remove the support device from the liftgate window.
  5. Close the liftgate window.
