Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Release the 5 clips that retain the reveal molding to the body.
  3. Peel the reveal molding away from the body and remove from the vehicle.

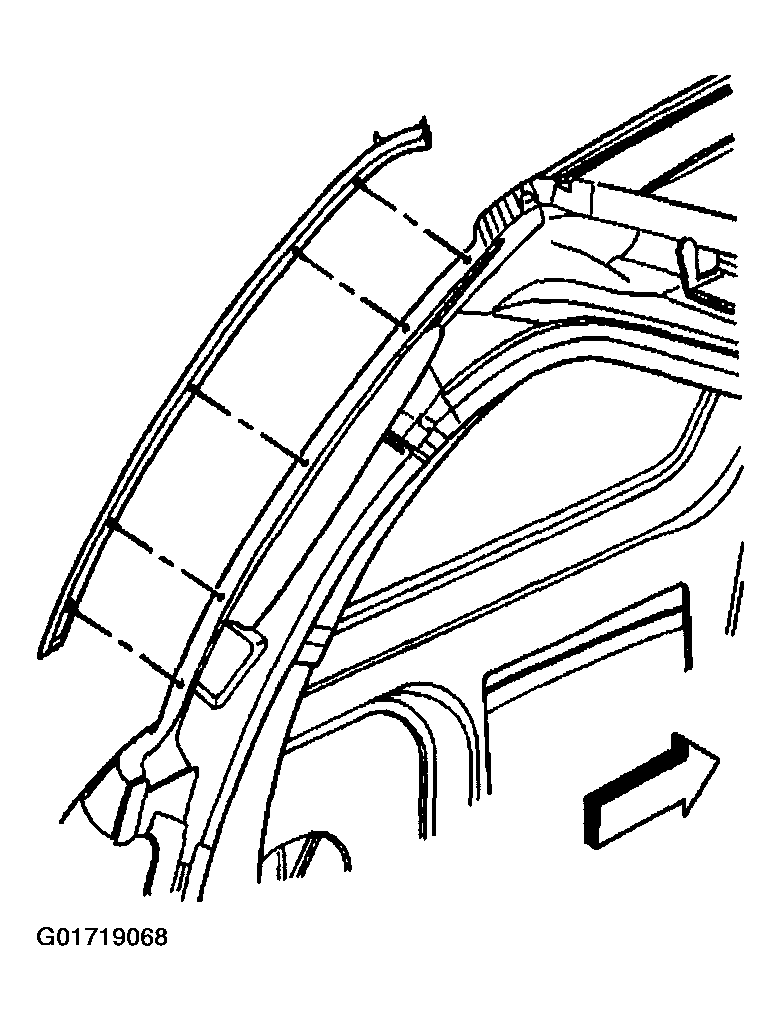

    Fig 1: Releasing 5 Clips Retaining Reveal Molding
    G01719068Courtesy of GENERAL MOTORS CORP.
