Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the adhesive liner from the reveal molding, if applicable.
  2. Position the reveal molding to the body.
  3. Align the retaining clips on the reveal molding with the recesses in the body.
  4. Starting at the bottom of the reveal molding, seat the molding to the body. Ensure that the retaining clips are fully seated.
  5. Close the liftgate.

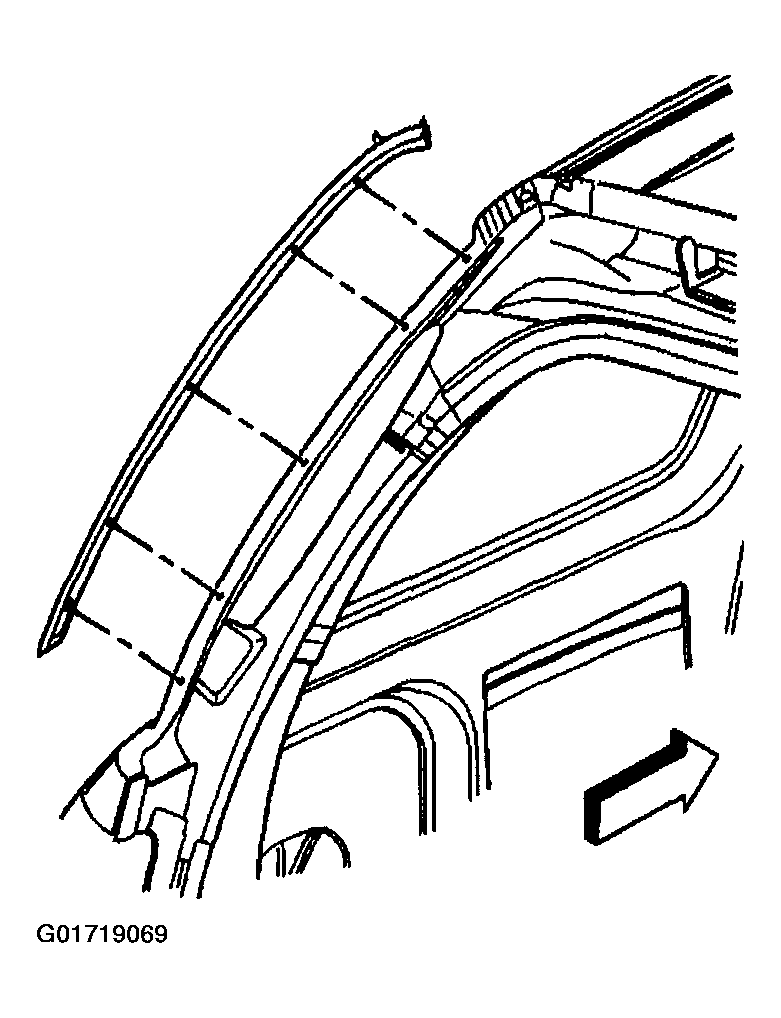

    Fig 1: Aligning Retaining Clips On Reveal Molding
    G01719069Courtesy of GENERAL MOTORS CORP.
