Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.
  2. Using a small flat-bladed tool, apply pressure at two upper locations and two lower locations to release the retainers on the pressure relief valve.
  3. Remove the pressure relief valve from the lower quarter panel.

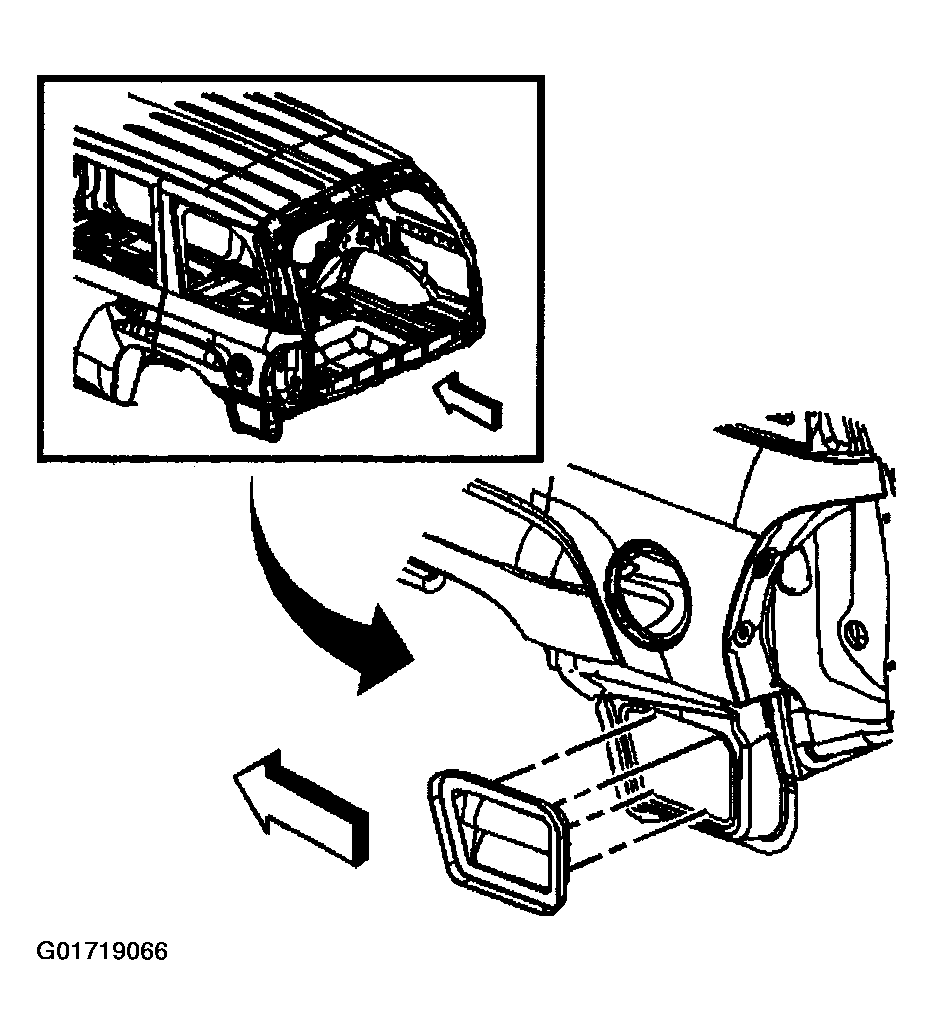

    Fig 1: Removing Pressure Relief Valve From Lower Quarter Panel
    G01719066Courtesy of GENERAL MOTORS CORP.
