Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve to the lower quarter panel.
  2. Press the pressure relief valve into the quarter lower panel until the retainers lock into place at the upper and lower locations.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.

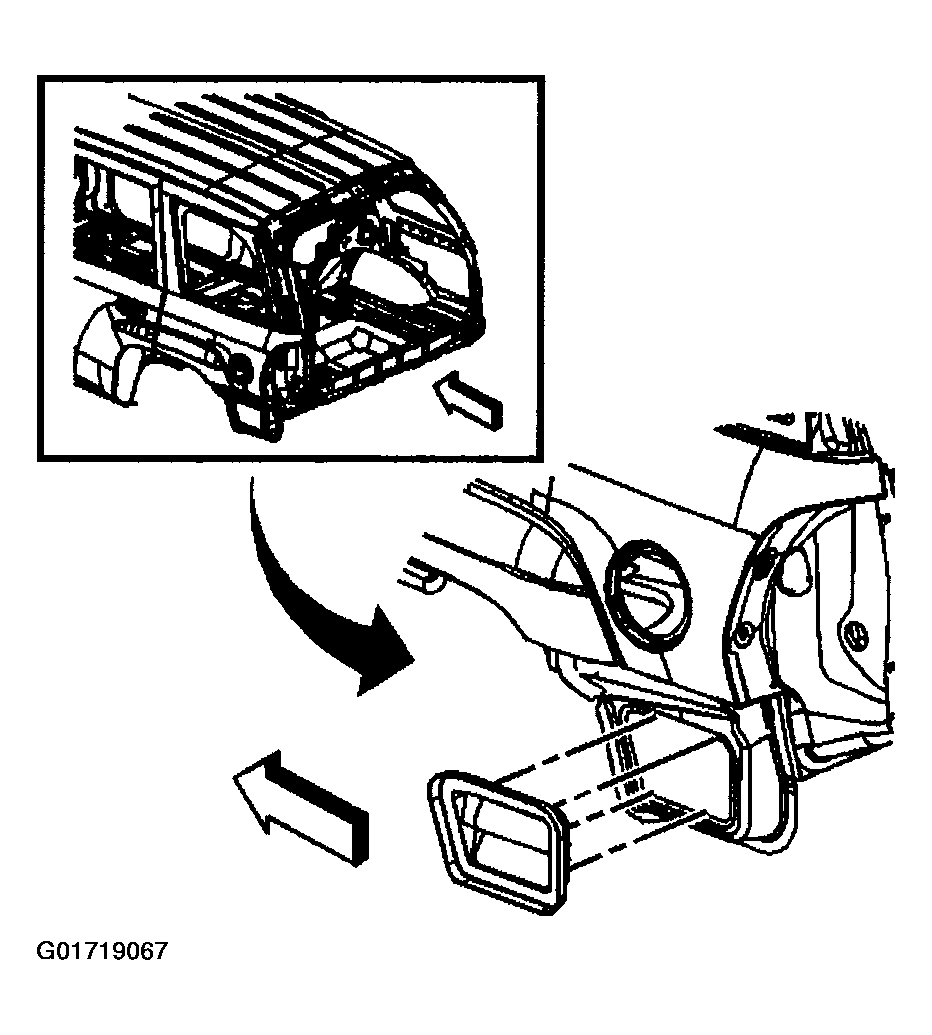

    Fig 1: Installing Pressure Relief Valve To Lower Quarter Panel
    G01719067Courtesy of GENERAL MOTORS CORP.
