Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Using a grease pencil, mark the position of the liftgate striker to the body.

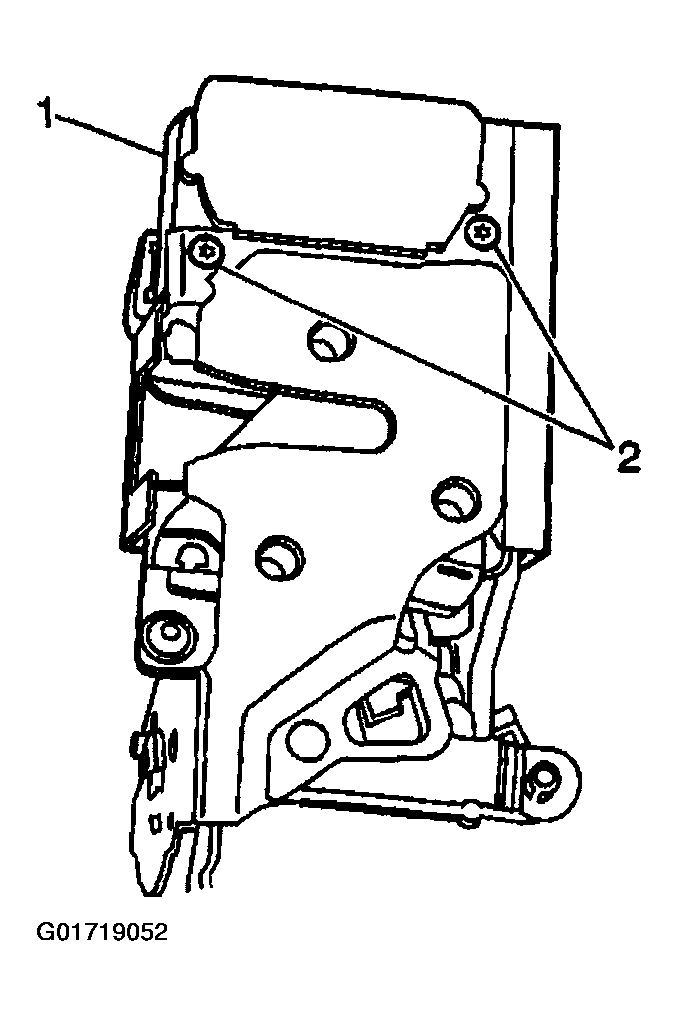

  3. Fig 1: Removing Bolts Retaining Liftgate Striker To Body
    G01719052Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts that retain the liftgate striker to the body.
  5. Remove the striker from the body.
