Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the striker to the body and position as previously marked.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

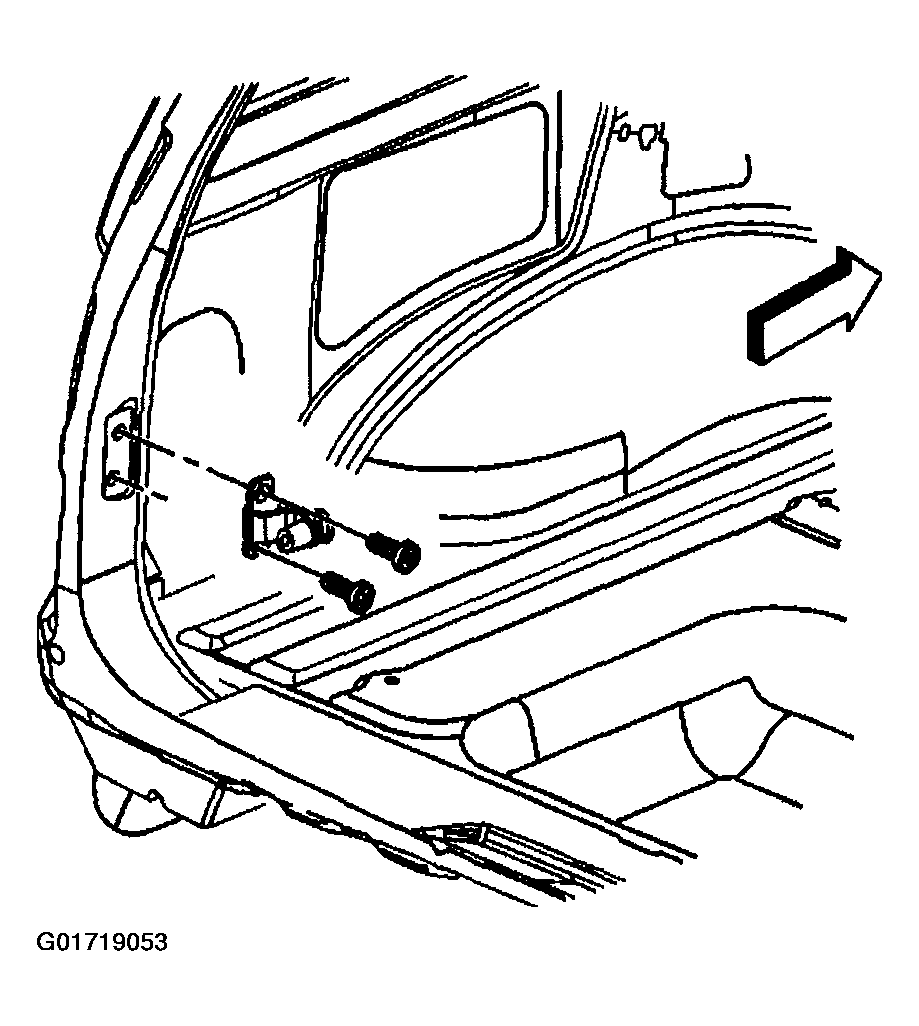

    2. Fig 1: Installing Bolts That Retaining Striker To Body
    G01719053Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts that retain the striker to the body.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Adjust the striker, if necessary.
  4. Close the liftgate.
