Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .

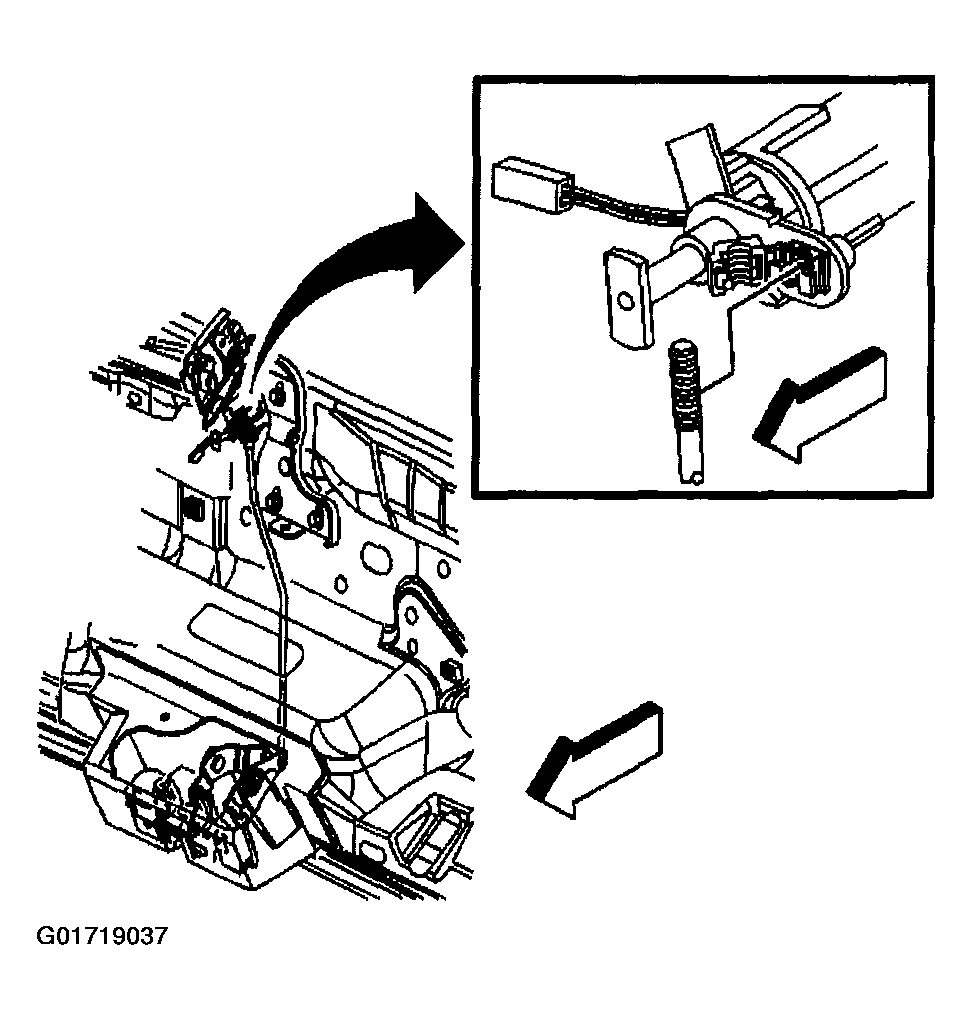

    2. Fig 1: Removing Lock Rod From Lock Cylinder
    G01719037Courtesy of GENERAL MOTORS CORP.
  2. Remove the lock rod from the lock cylinder.
  3. Remove the C clip from groove in the lock cylinder.
  4. Remove the lock cylinder from the liftgate.

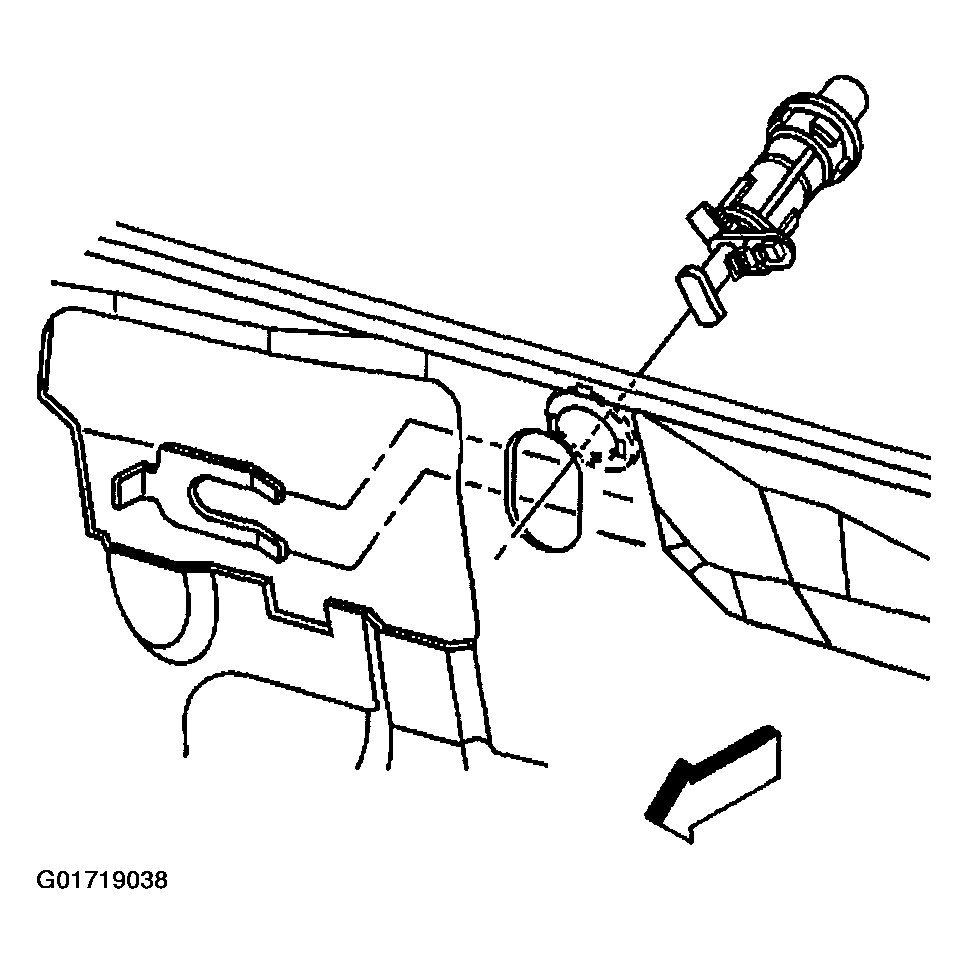

    Fig 2: Removing Lock Cylinder From Liftgate
    G01719038Courtesy of GENERAL MOTORS CORP.
