Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Installing Lock Cylinder To Liftgate

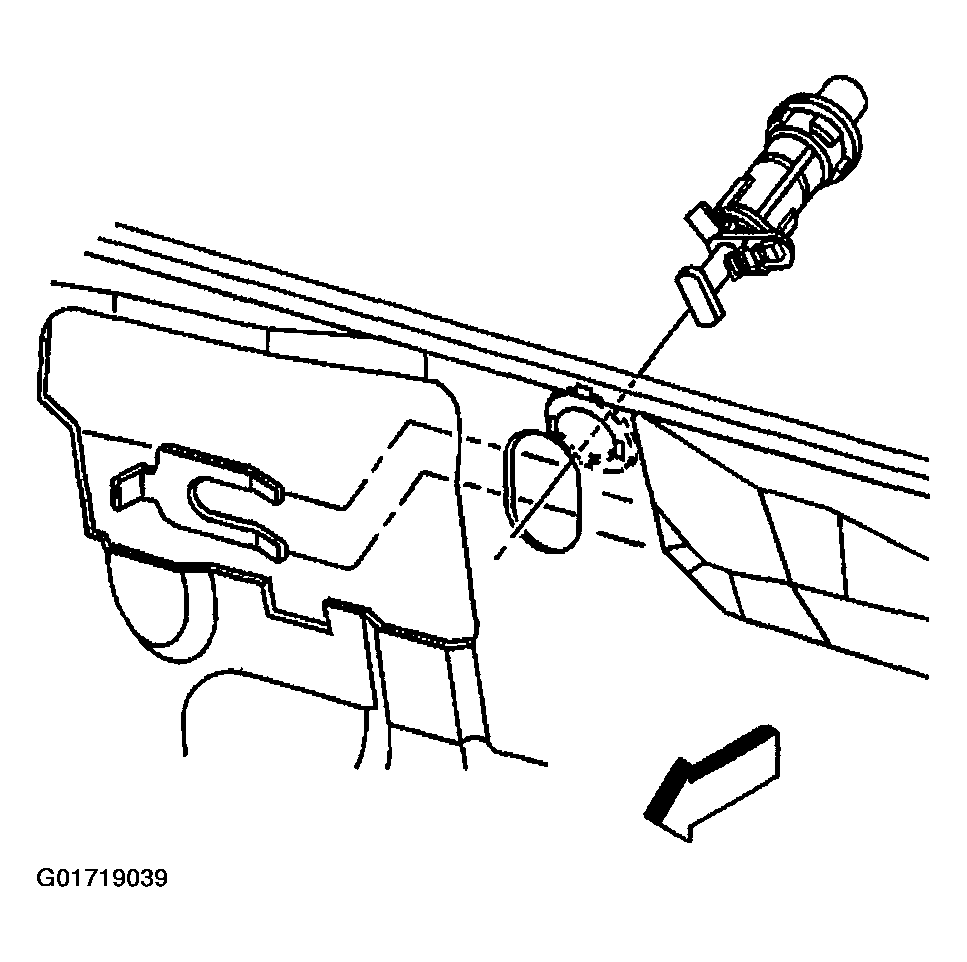

G01719039Courtesy of GENERAL MOTORS CORP.
  1. Install the lock cylinder to the liftgate.
  2. Install the C clip to the groove in the lock cylinder.
    3. Fig 2: Installing Lock Rod To Lock Cylinder

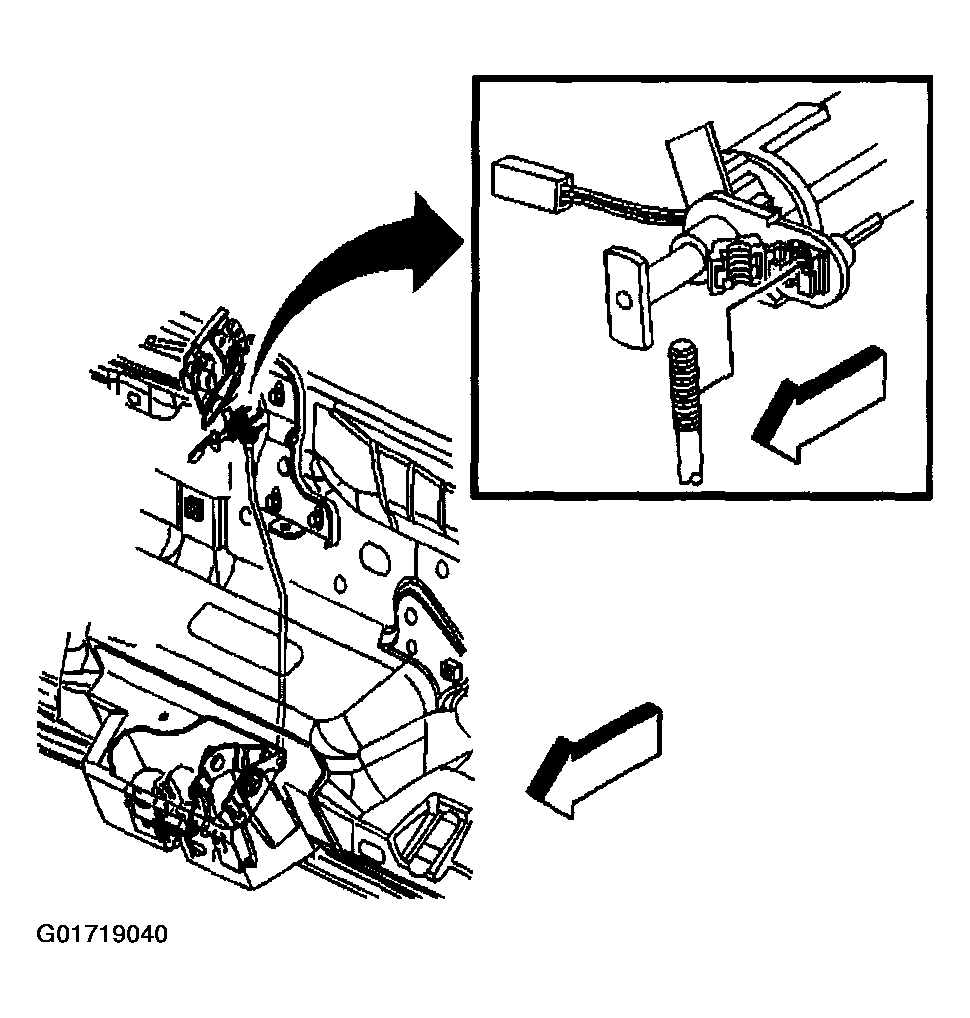

    G01719040Courtesy of GENERAL MOTORS CORP.
  3. Install the lock rod to the lock cylinder.
  4. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .
