Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

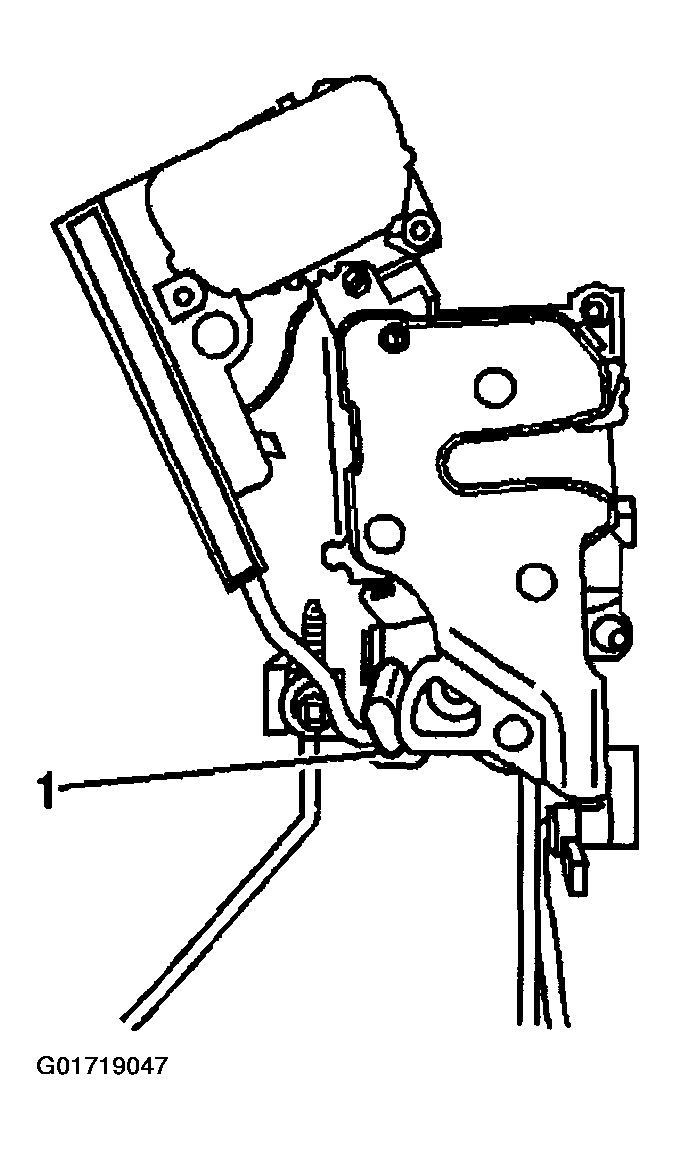

    Fig 1: Installing Rubber Bumper To Latch
    G01719047Courtesy of GENERAL MOTORS CORP.
  1. Install the rubber bumper (1) to the latch.
  2. Rotate the actuator toward the latch in order to fully engage the rubber bumper into the latch.

    Important:  Ensure that the first tooth of the gear on the actuator and the first tooth of the gear on the latch align and interlock properly.

  3. Install the actuator to the top of the latch.

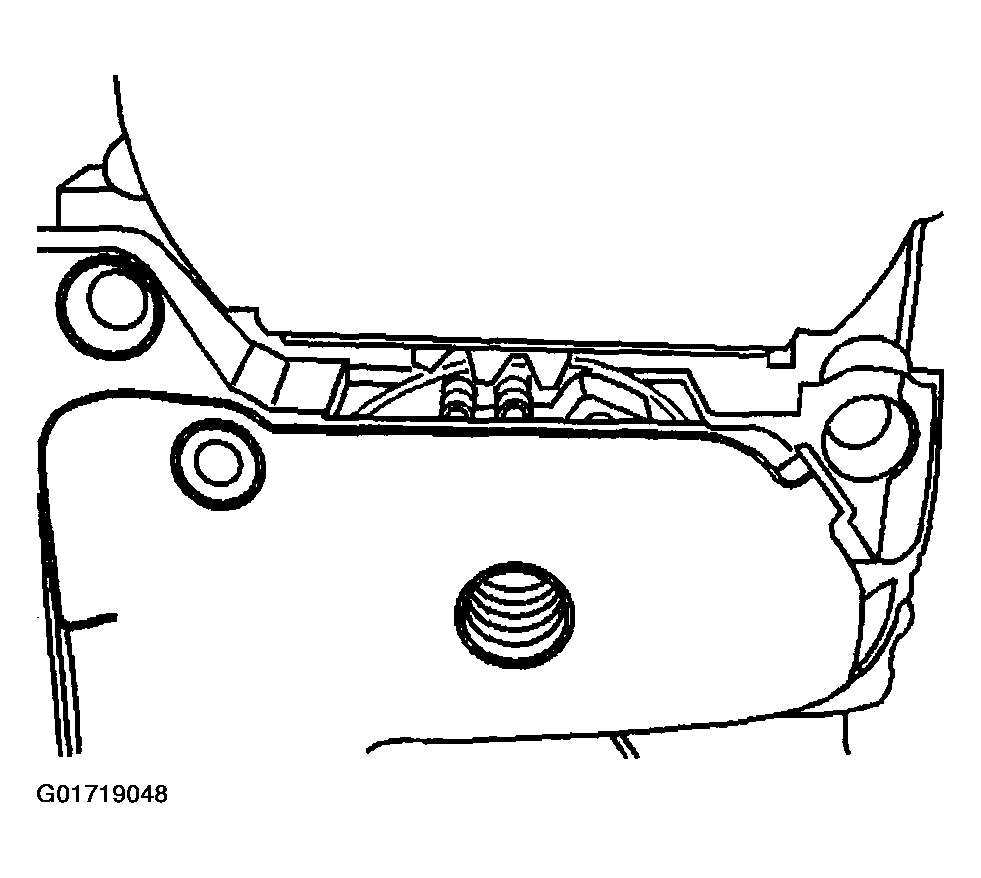

    Fig 2: Installing Actuator To Top Of Latch
    G01719048Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

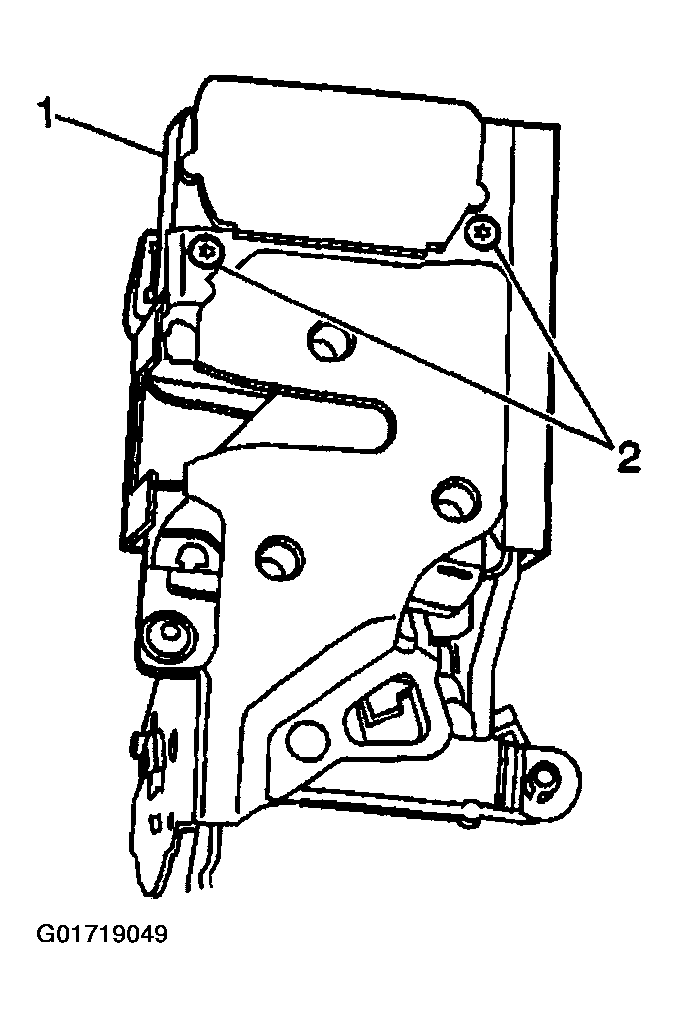

    4. Fig 3: Installing 2 Screws Retaining Lock Actuator To Latch Assembly
    G01719049Courtesy of GENERAL MOTORS CORP.
  4. Install the 2 screws (2) that retain the lock actuator (1) to the latch assembly.

    Tighten

    Tighten the screws to 0.75 N.m (6 lb in).

  5. Install the latch assembly to the liftgate. Refer to LATCH REPLACEMENT - Lift Gate .
