Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate window. Refer to Window Replacement - Lift Gate in Stationary Windows.
  2. Remove the rear quarter trim located above the tail lamps. Refer to MOLDING REPLACEMENT - REAR PANEL in Exterior Trim.
  3. Remove the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT--REAR WINDOW in Interior Trim.
  4. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .
  5. Disconnect the rear windshield washer fluid supply line.

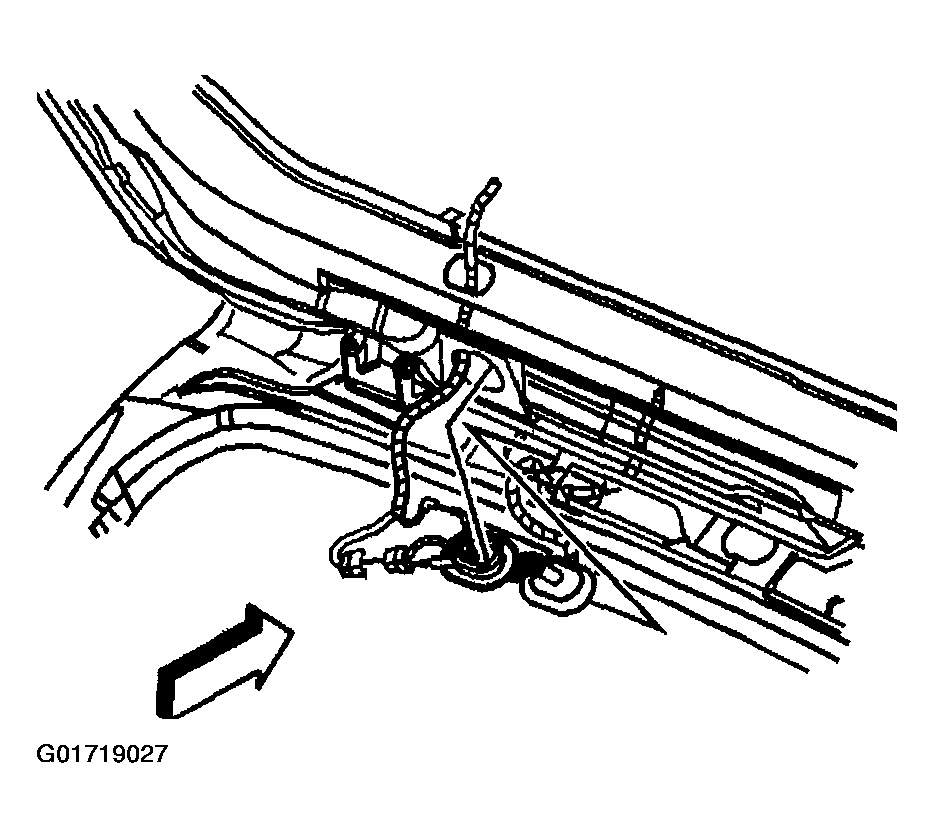

    6. Fig 1: Disconnecting Center High Mount Stop Lamp (CHMSL) Electrical Connector
    G01719027Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the center high mount stop lamp (CHMSL) electrical connector located behind the header panel.
  7. Disconnect the rear windshield defogger electrical connectors (2).

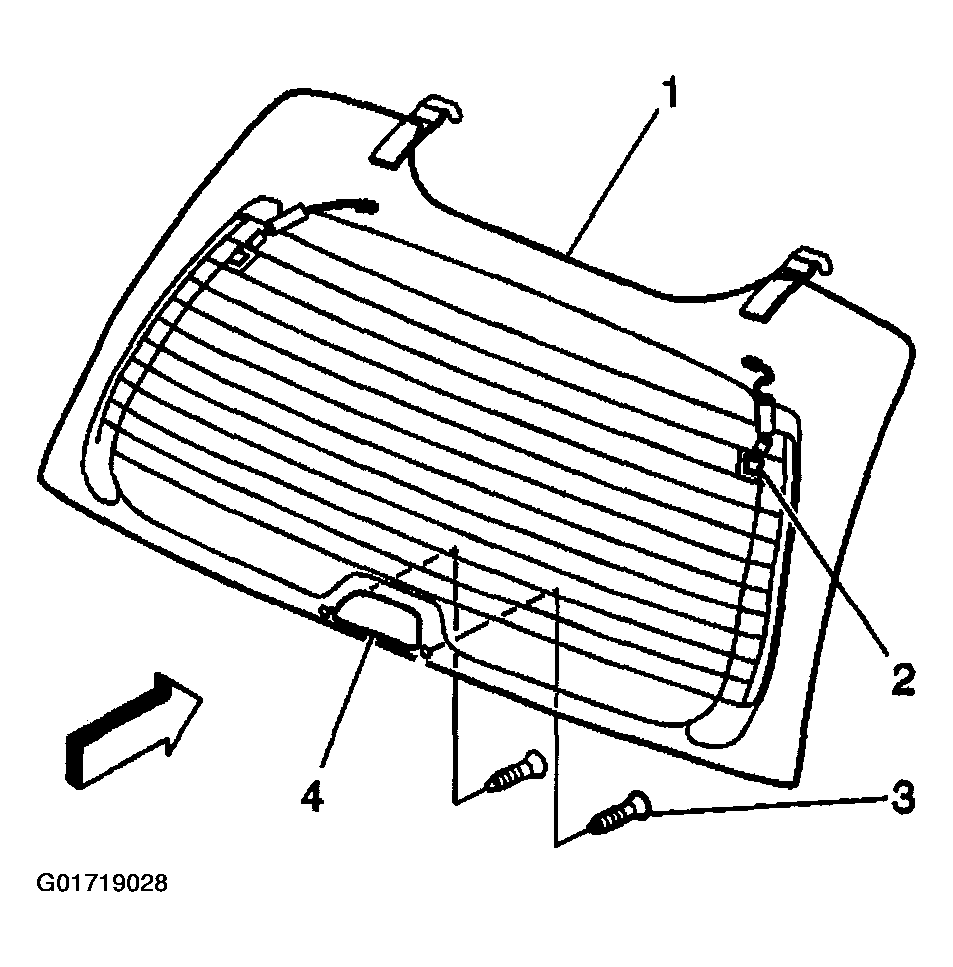

    Fig 2: Disconnecting Rear Windshield Defogger Electrical Connectors
    G01719028Courtesy of GENERAL MOTORS CORP.
  8. Remove the license plate pocket. Refer to License Plate Pocket Replacement .
  9. Remove the key cylinder. Refer to LOCK CYLINDER REPLACEMENT - Lift Gate .
  10. Remove the window latch assembly. Refer to LATCH REPLACEMENT - Lift Gate Window .
  11. Remove the window wiper assembly. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  12. Remove the liftgate control module. Refer to Lift Gate Control Module Replacement .
  13. Remove the liftgate wire harness. Refer to WIRING HARNESS REPLACEMENT - Lift Gate .
  14. Remove the liftgate struts. Refer to STRUT REPLACEMENT - Lift Gate
  15. Mark the location of the liftgate hinges using a grease pencil or other suitable marking device.

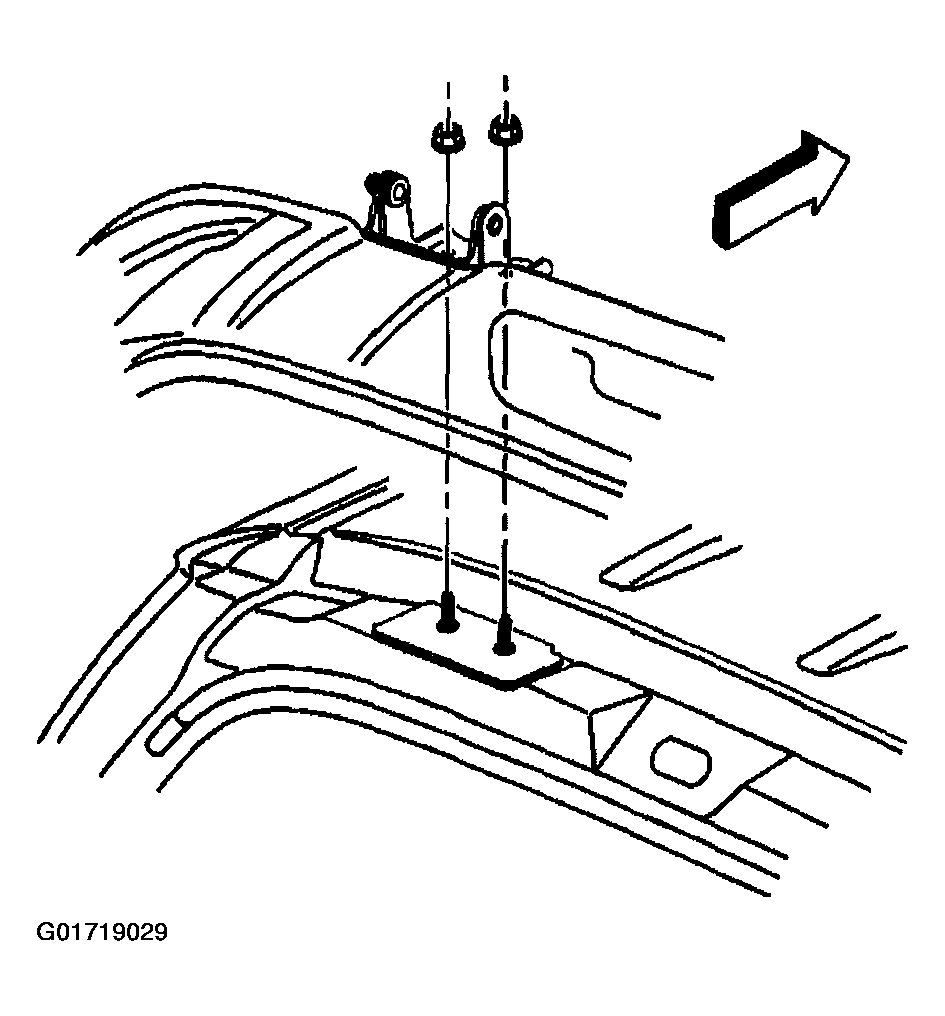

    16. Fig 3: Removing Liftgate Hinge Nuts With An Assistant
    G01719029Courtesy of GENERAL MOTORS CORP.
  16. Remove the liftgate hinge nuts with an assistant.
  17. Remove the liftgate from the vehicle with an assistant.
