Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT--REAR WINDOW in Interior Trim.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .

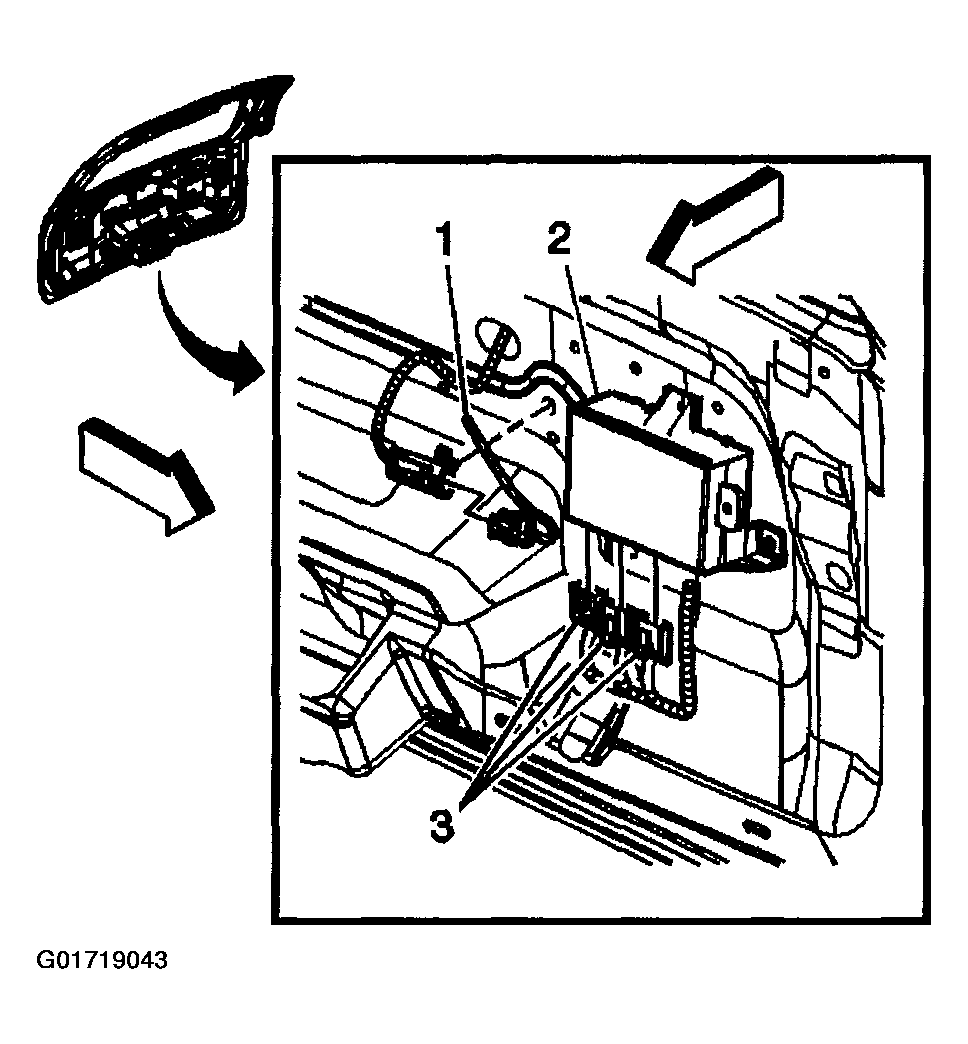

    3. Fig 1: Disconnecting Electrical Connectors From Module As Necessary
    G01719043Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors (3) from the module as necessary.
  4. Remove the bolts that retain the module to the liftgate.
  5. Remove the module from the liftgate.
