Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the module to the liftgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the module to the liftgate.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

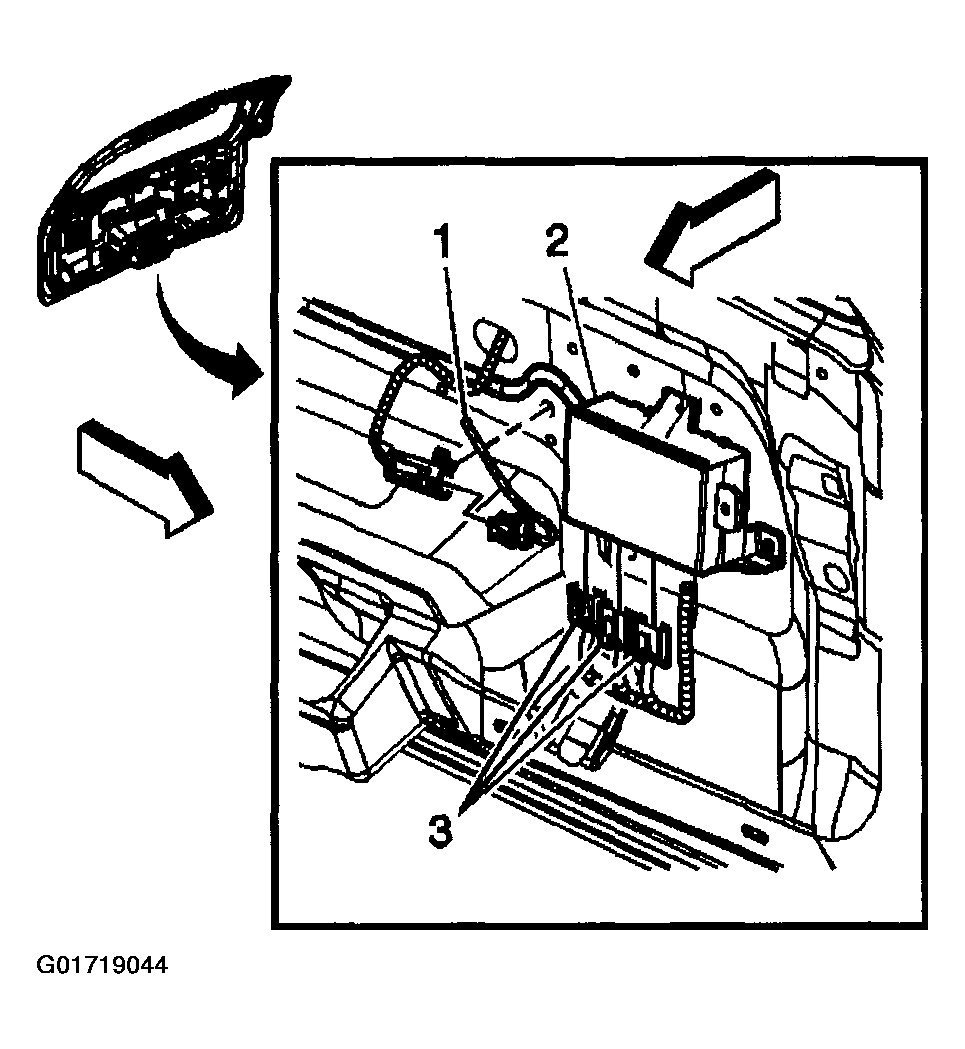

    3. Fig 1: Connecting Electrical Connectors As Necessary
    G01719044Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors (3) as necessary.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .
  5. Install the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT--REAR WINDOW in Interior Trim.
  6. Reprogram the liftgate control module. Refer to Lift Gate Control Module Programming .
