Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate applique to the liftgate pinch-weld flange. Ensure that the liftgate applique is fully seated.
  2. Close the liftgate and open the liftgate window.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

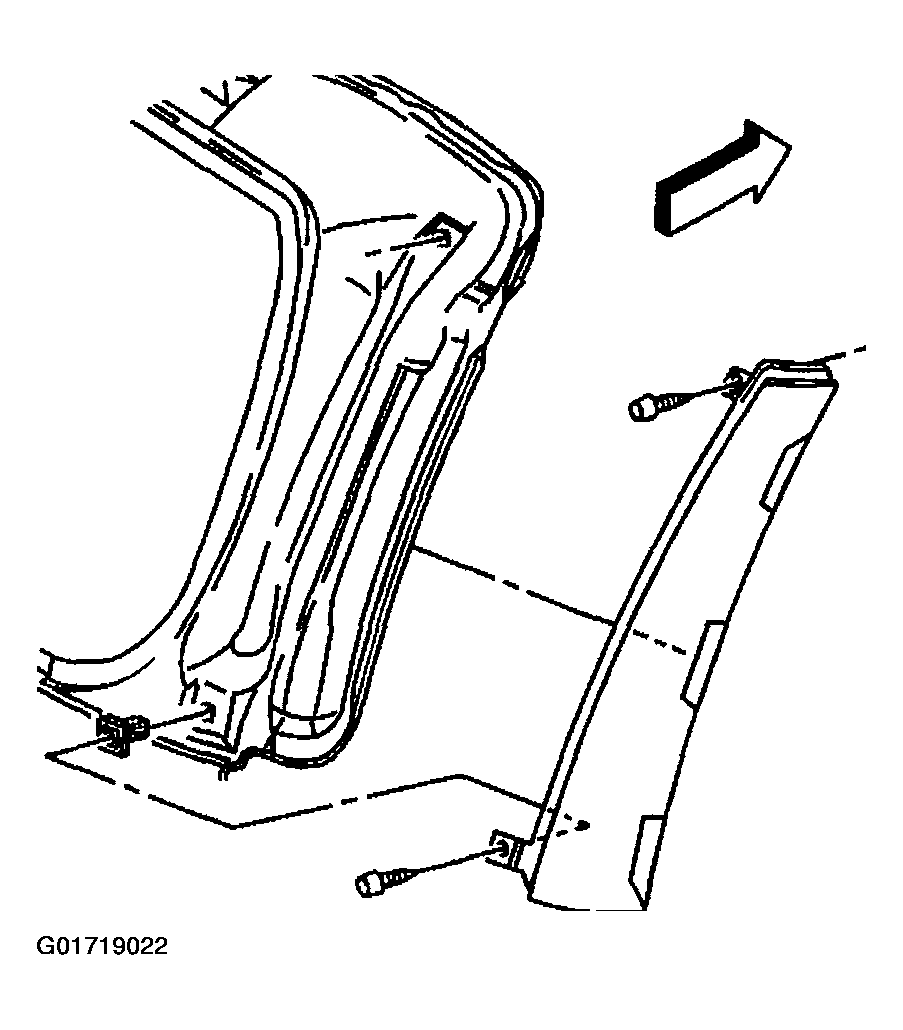

    3. Fig 1: Installing Screws Retaining Liftgate Applique To Body
    G01719022Courtesy of GENERAL MOTORS CORP.
  3. Install the screws that retain the liftgate applique to the body.

    Tighten

    Tighten the liftgate applique screws to 5 N.m (44 lb in).

  4. Close the liftgate window.
