Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license pocket lamps. Refer to LICENSE LAMP REPLACEMENT in Lighting Systems.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .

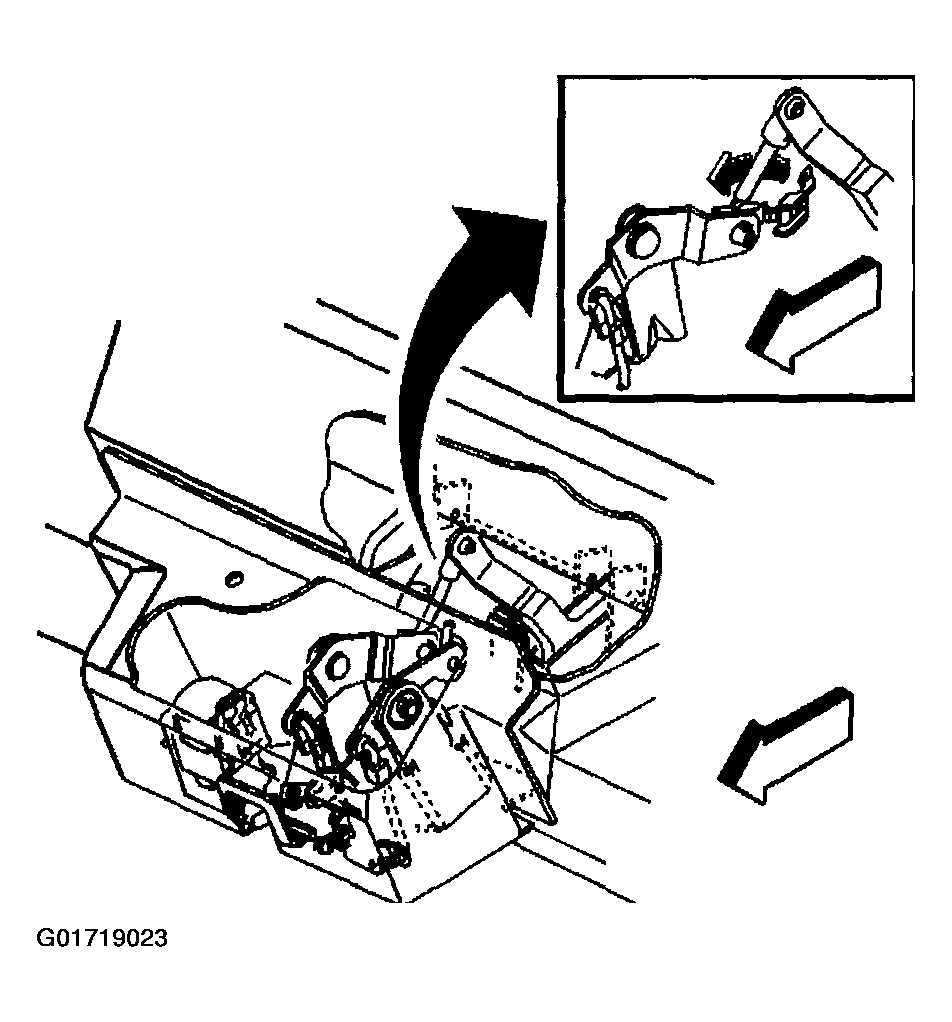

    3. Fig 1: Disconnecting Bellcrank Rod From Outside Door Release Handle
    G01719023Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the bellcrank rod from the outside door release handle.

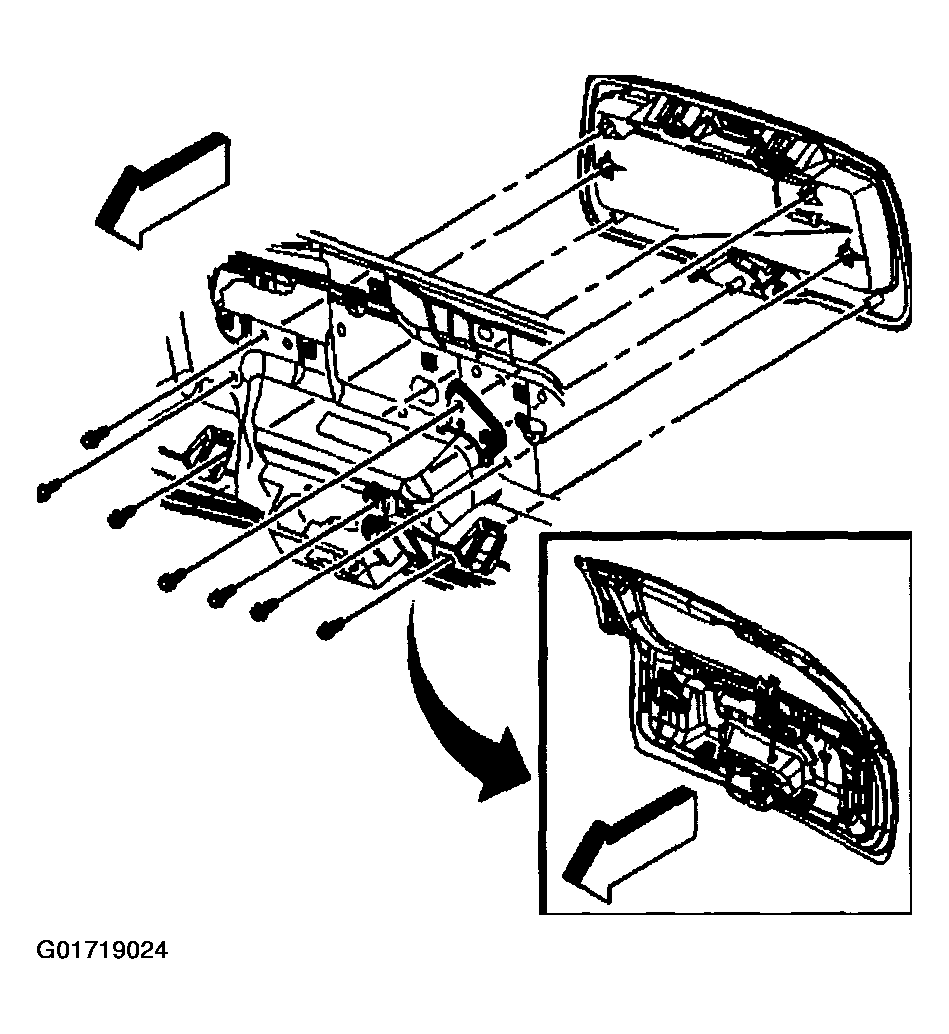

    4. Fig 2: Removing screws that retain the license pocket to the liftgate
    G01719024Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that retain the license pocket to the liftgate.
  5. Remove the license pocket from the liftgate.
