Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the panel to the liftgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

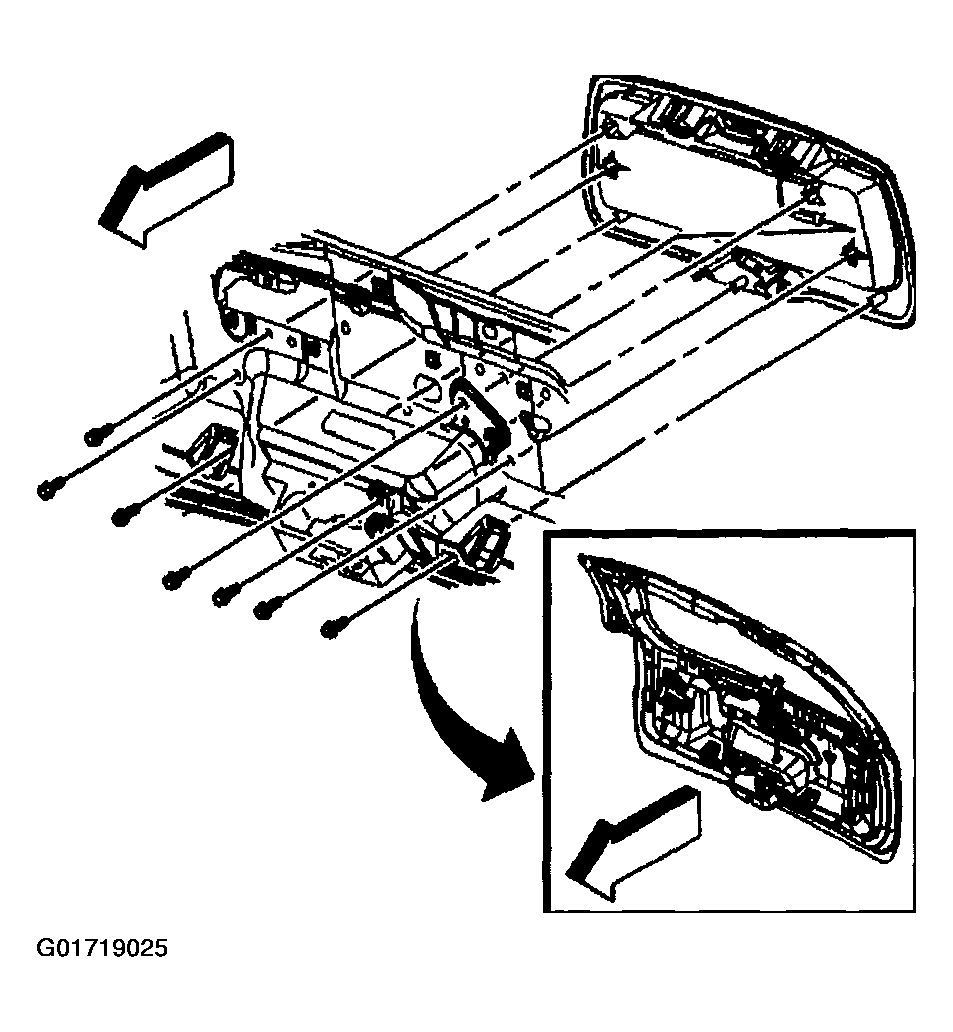

    Fig 1: Installing Screws Retaining Panel To Liftgate
    G01719025Courtesy of GENERAL MOTORS CORP.
  2. Install the screws that retain the panel to the liftgate, starting with the bottom center screw first.

    Tighten

    Tighten the screws to 5 N.m (44 lb in).

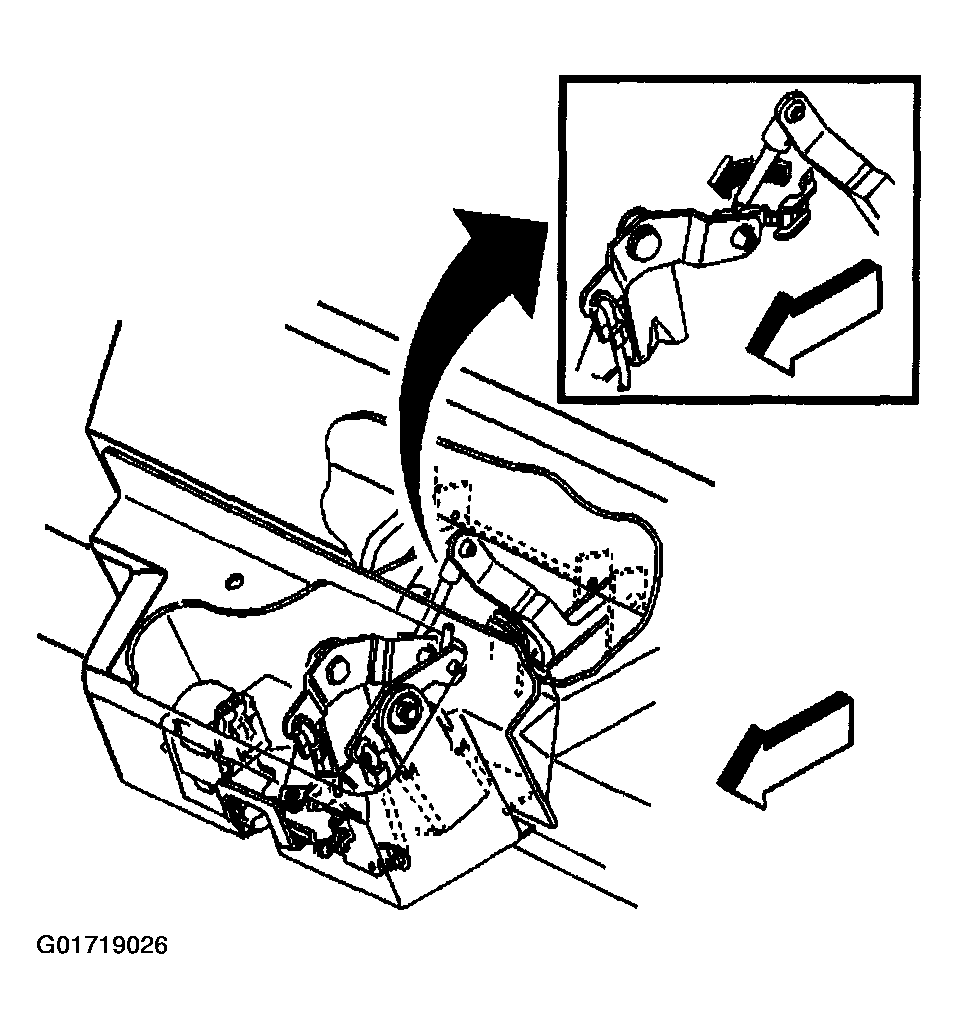

    3. Fig 2: Installing Bellcrank Rod To Outside Door Release Handle
    G01719026Courtesy of GENERAL MOTORS CORP.
  3. Install the bellcrank rod to the outside door release handle.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .
  5. Install the license pocket lamps. Refer to LICENSE LAMP REPLACEMENT in Lighting Systems.
