Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT--REAR WINDOW in Interior Trim.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada)
  3. Disconnect the outside handle rod from the bellcrank.

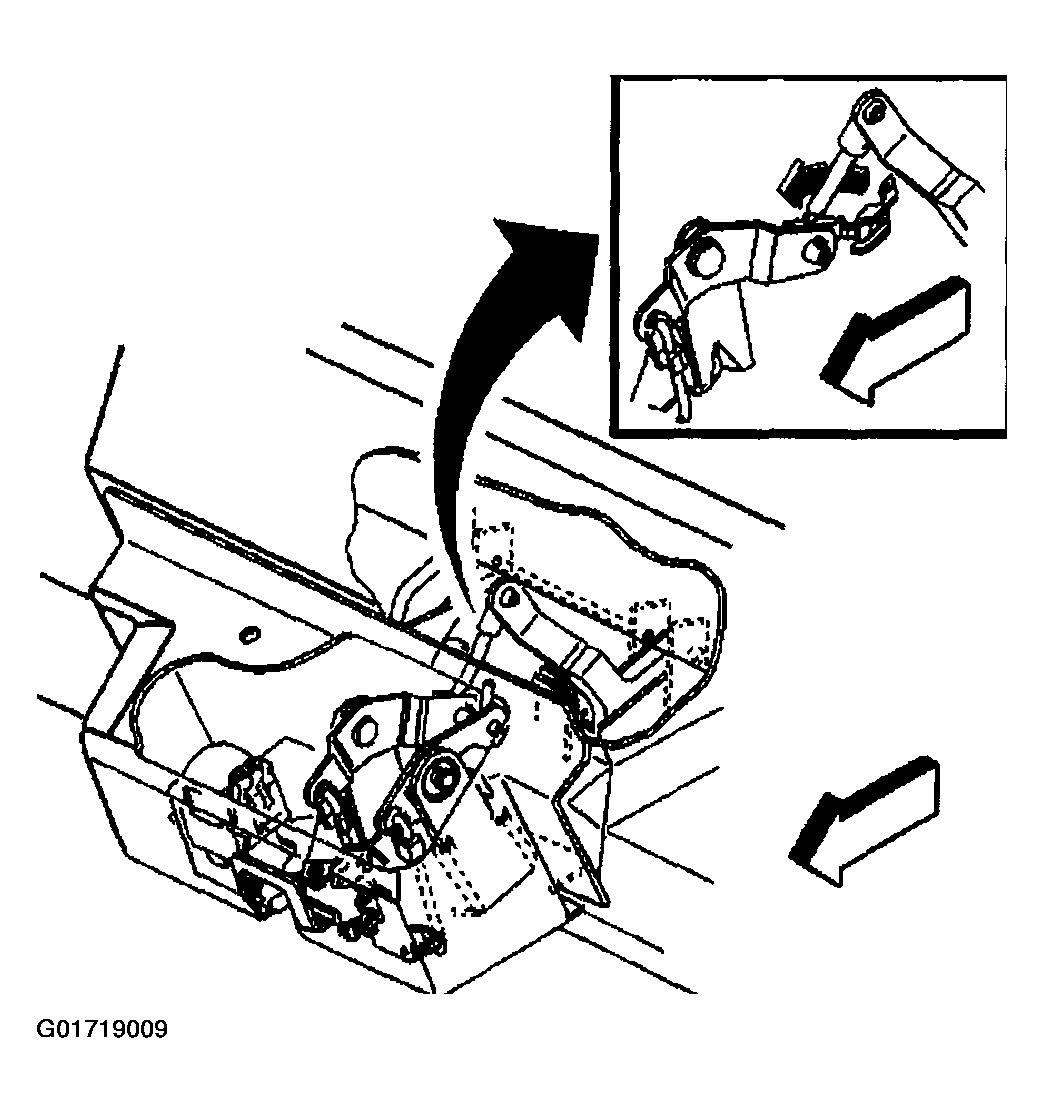

    Fig 1: Disconnecting Bellcrank Rod From Latch/Lock Assembly
    G01719009Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the bellcrank rod from the latch/lock assembly.

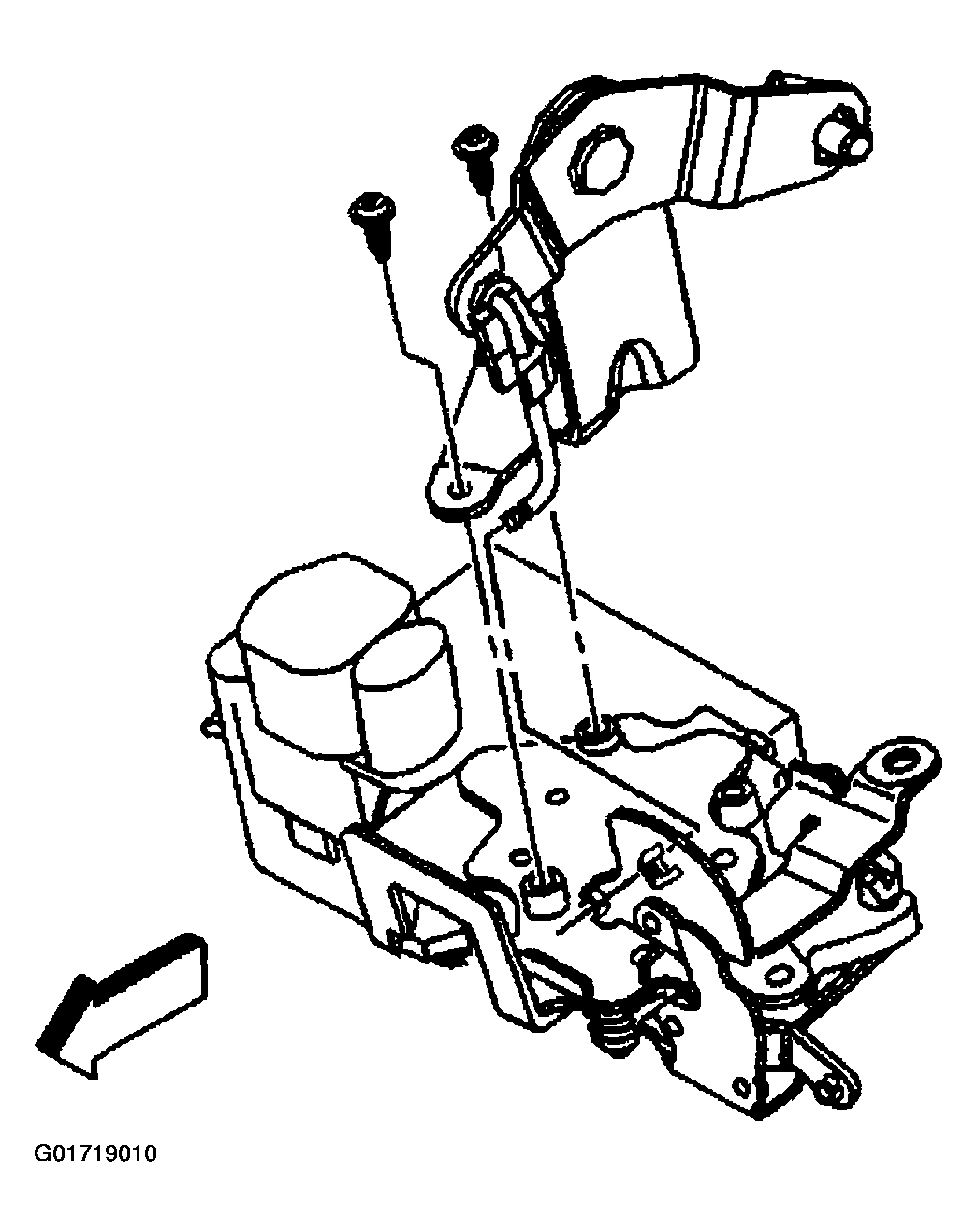

    5. Fig 2: Removing Screws Retaining Bellcrank To Latch/Lock
    G01719010Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws that retain the bellcrank to the latch/lock.
  6. Remove the bellcrank from the latch/lock.
  7. Disconnect the electrical connector from the latch assembly.
  8. Disconnect the lock cylinder bellcrank rod (1) from the latch assembly.

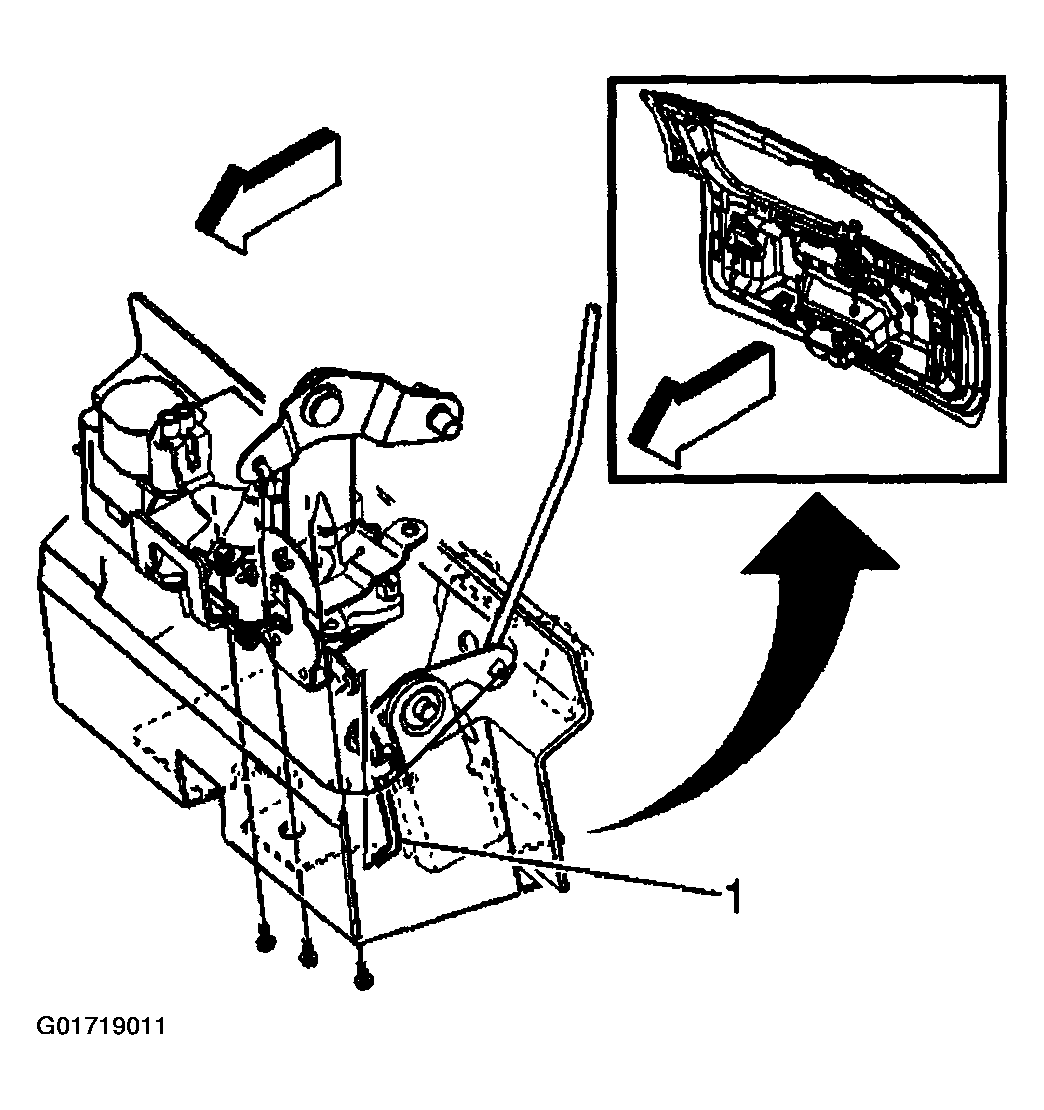

    9. Fig 3: Removing Screws Retaining Latch/Lock Assembly To Liftgate
    G01719011Courtesy of GENERAL MOTORS CORP.
  9. Remove the screws that retain the latch/lock assembly to the liftgate.
  10. Remove the latch/lock assembly from the liftgate.
