Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT--REAR WINDOW in Interior Trim.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .

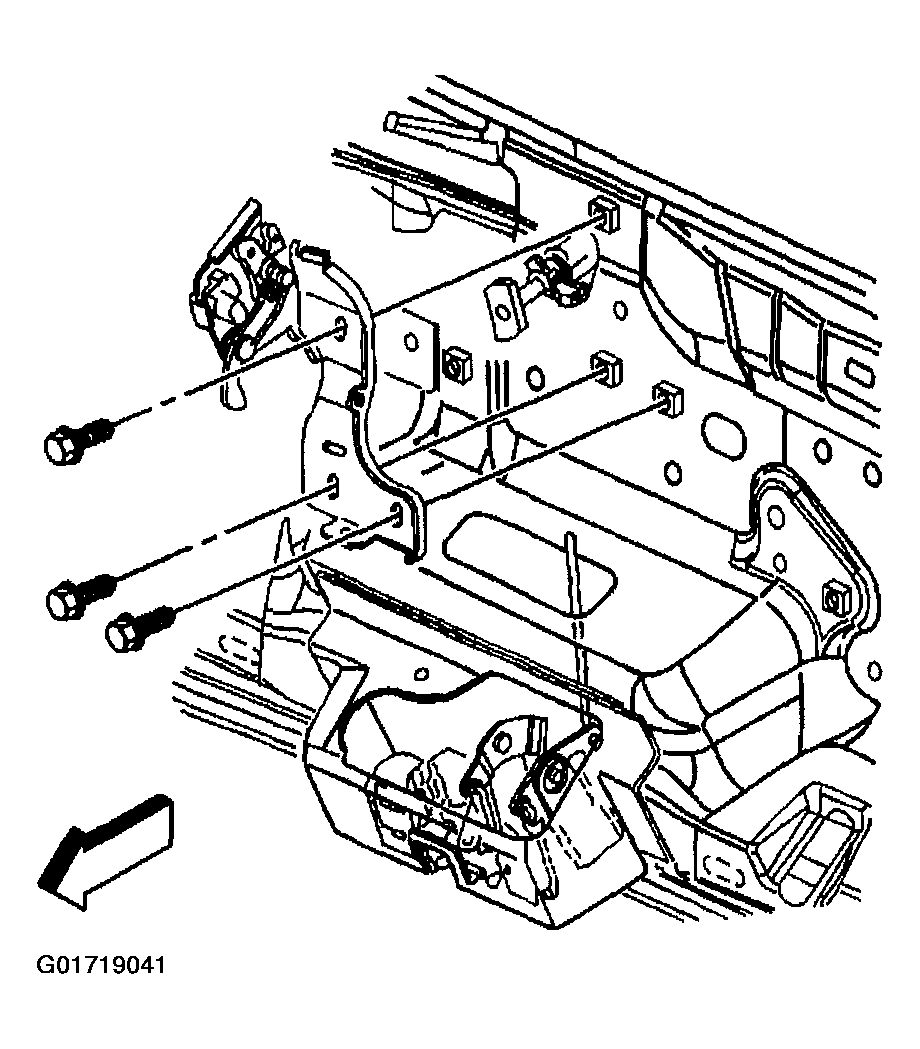

    3. Fig 1: Removing Bolts Retaining Latch To Liftgate
    G01719041Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts that retain the latch to the liftgate.
  4. Disconnect the electrical connector.
  5. Remove the latch from the liftgate.
