Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch to the liftgate.
  2. Connect the electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

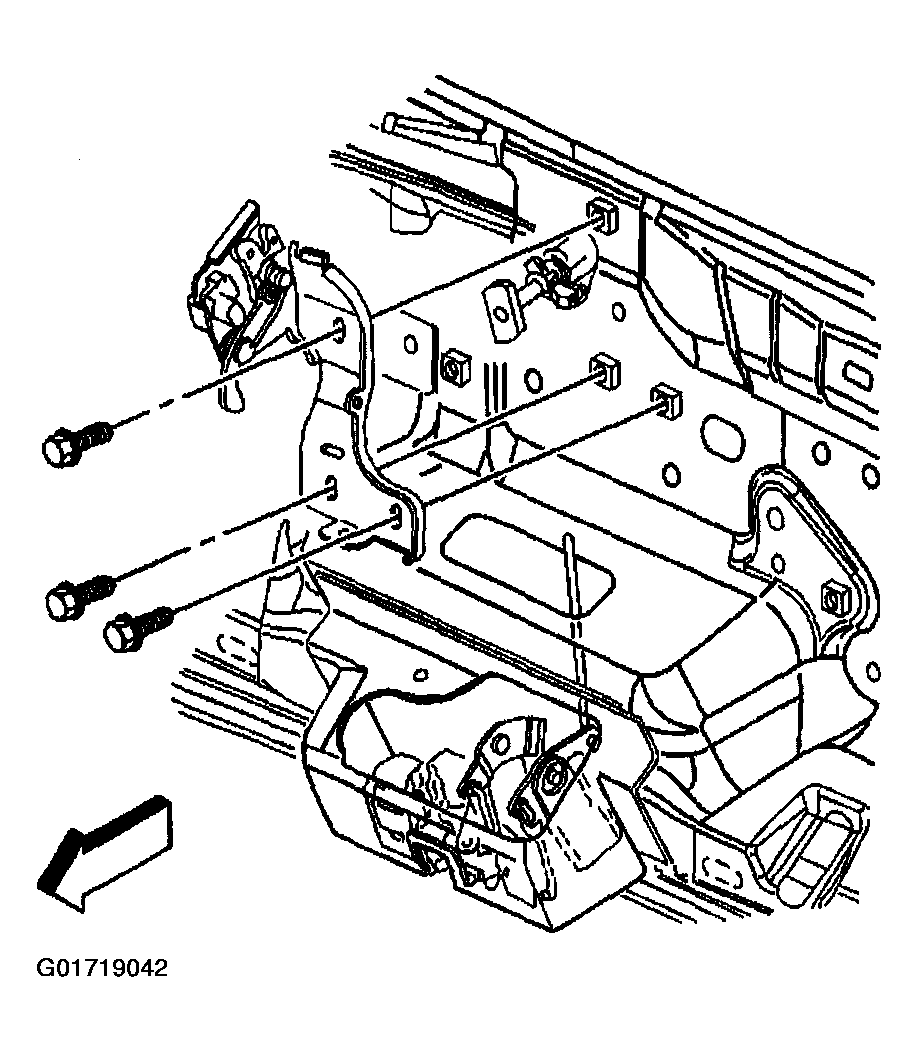

    3. Fig 1: Installing Bolts Retaining Latch To Liftgate
    G01719042Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts that retain the latch to the liftgate.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - Lift Gate (TrailBlazer, Envoy, Bravada) .
  5. Install the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT-REAR WINDOW in Interior Trim.
