Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bumper assembly to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

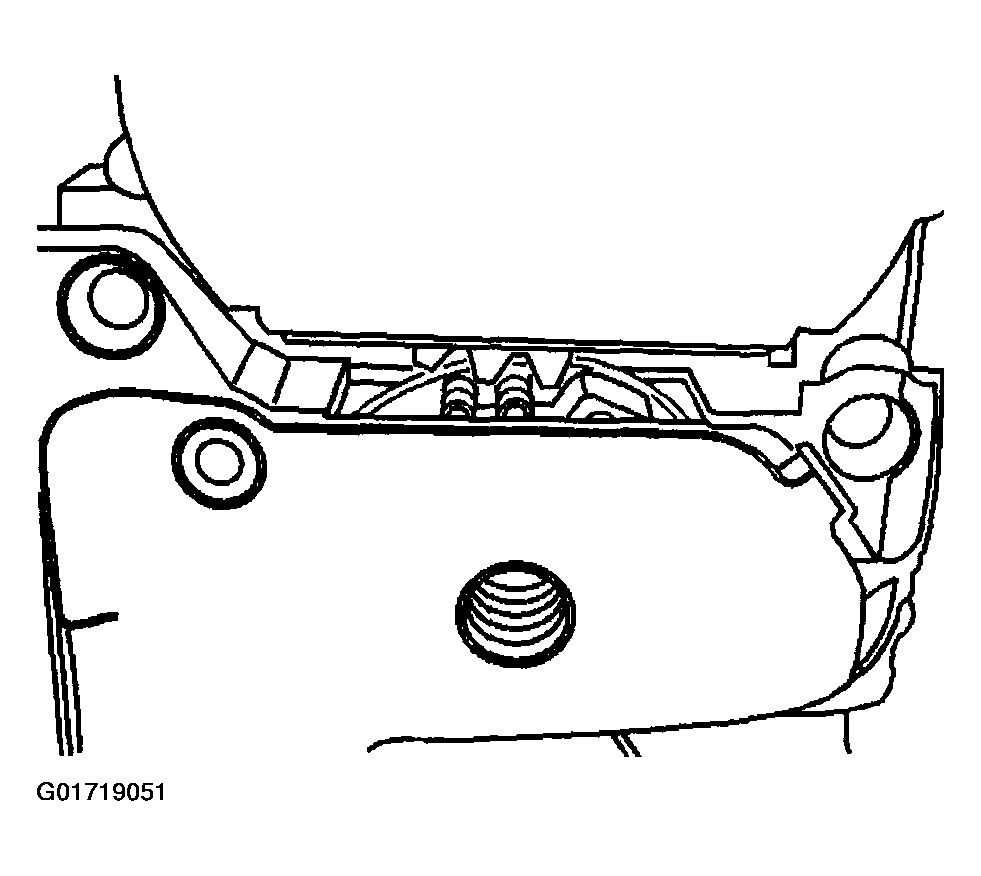

    2. Fig 1: Installing Bolts That Retaining Bumper Assembly To Body
    G01719051Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts that retain the bumper assembly to the body.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Close the liftgate.
