Body Rear End Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

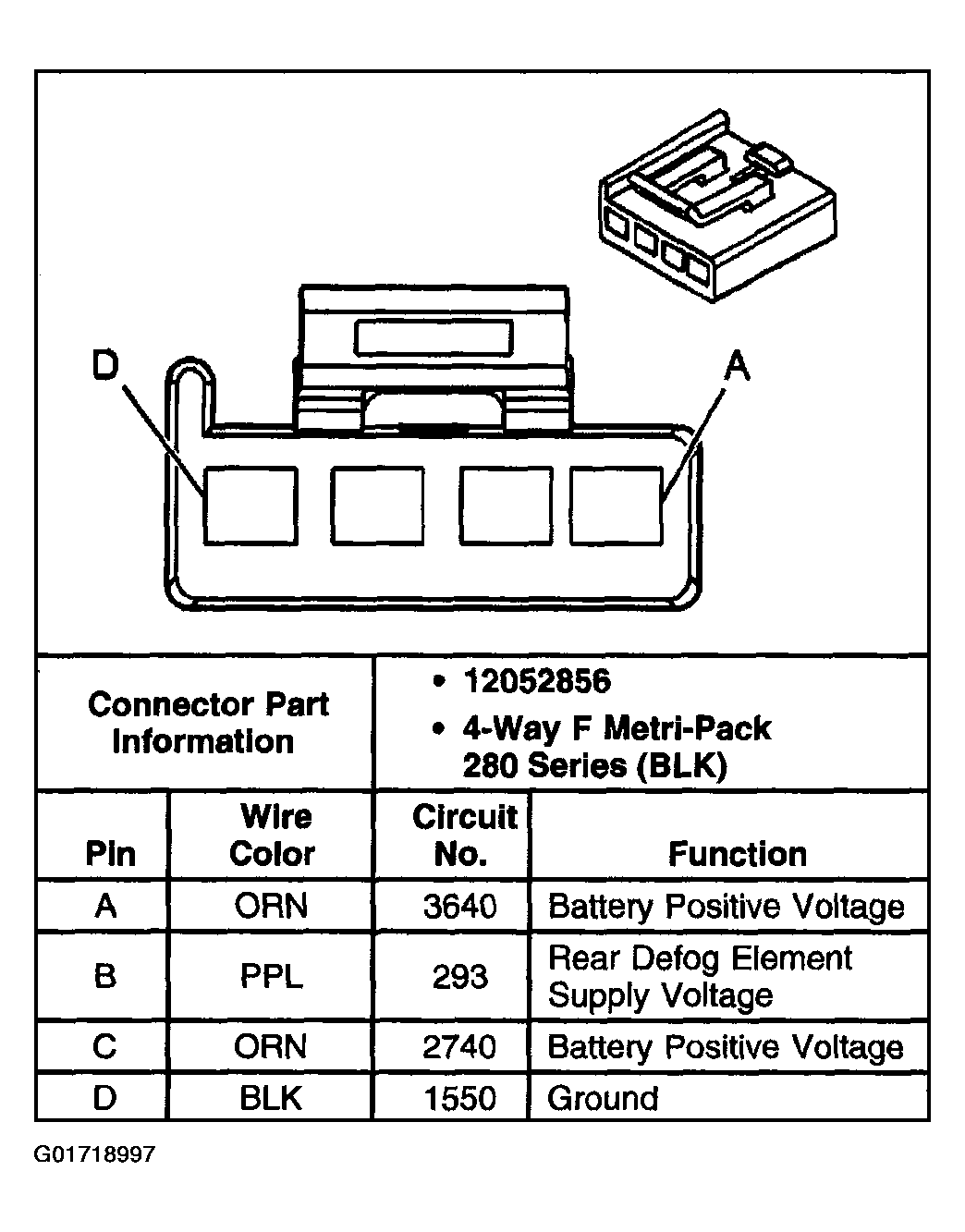

Fig 1: Liftgate Module (LGM) - C1

Courtesy of GENERAL MOTORS CORP.

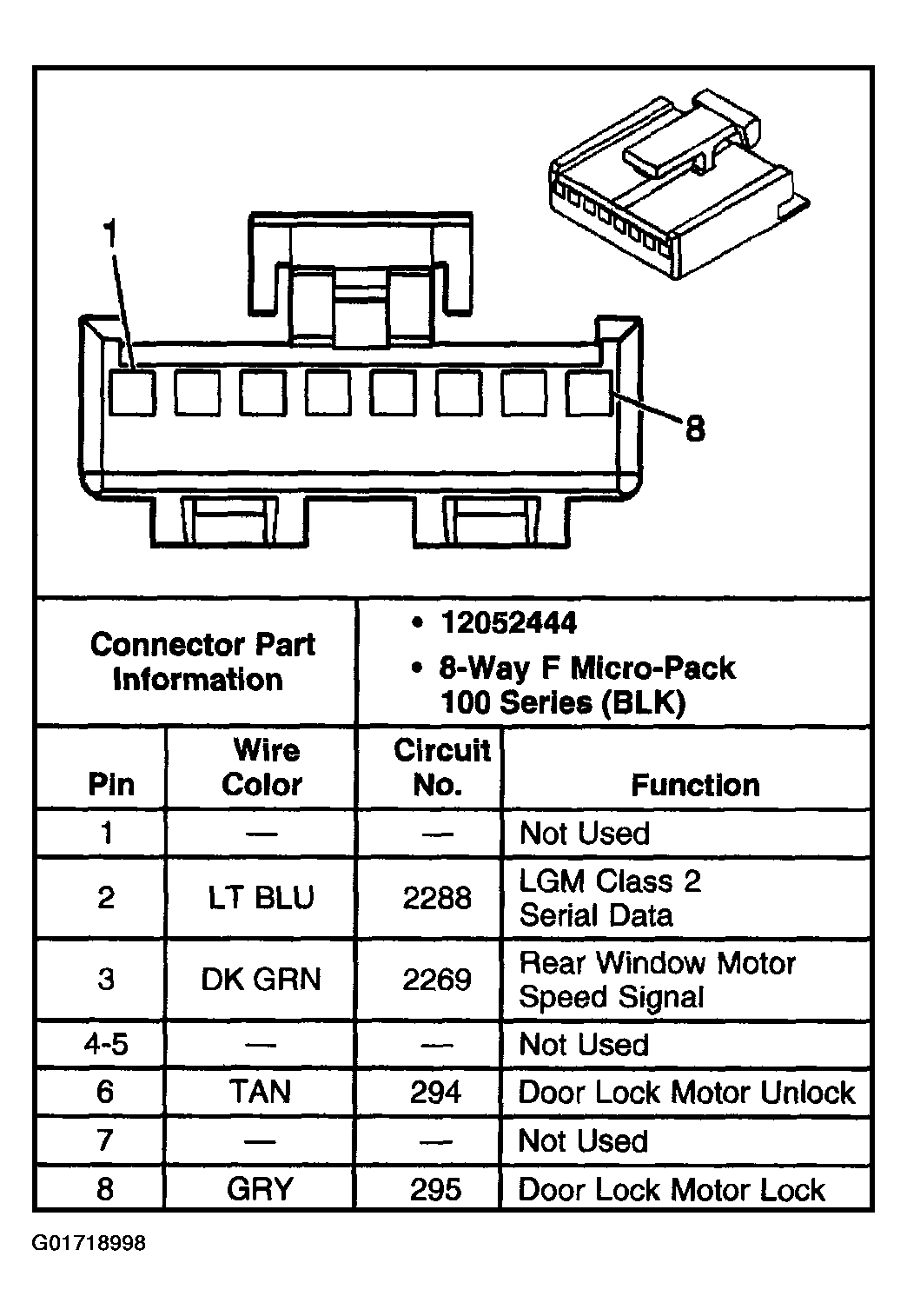

Fig 2: Liftgate Module (LGM) - C2

Courtesy of GENERAL MOTORS CORP.

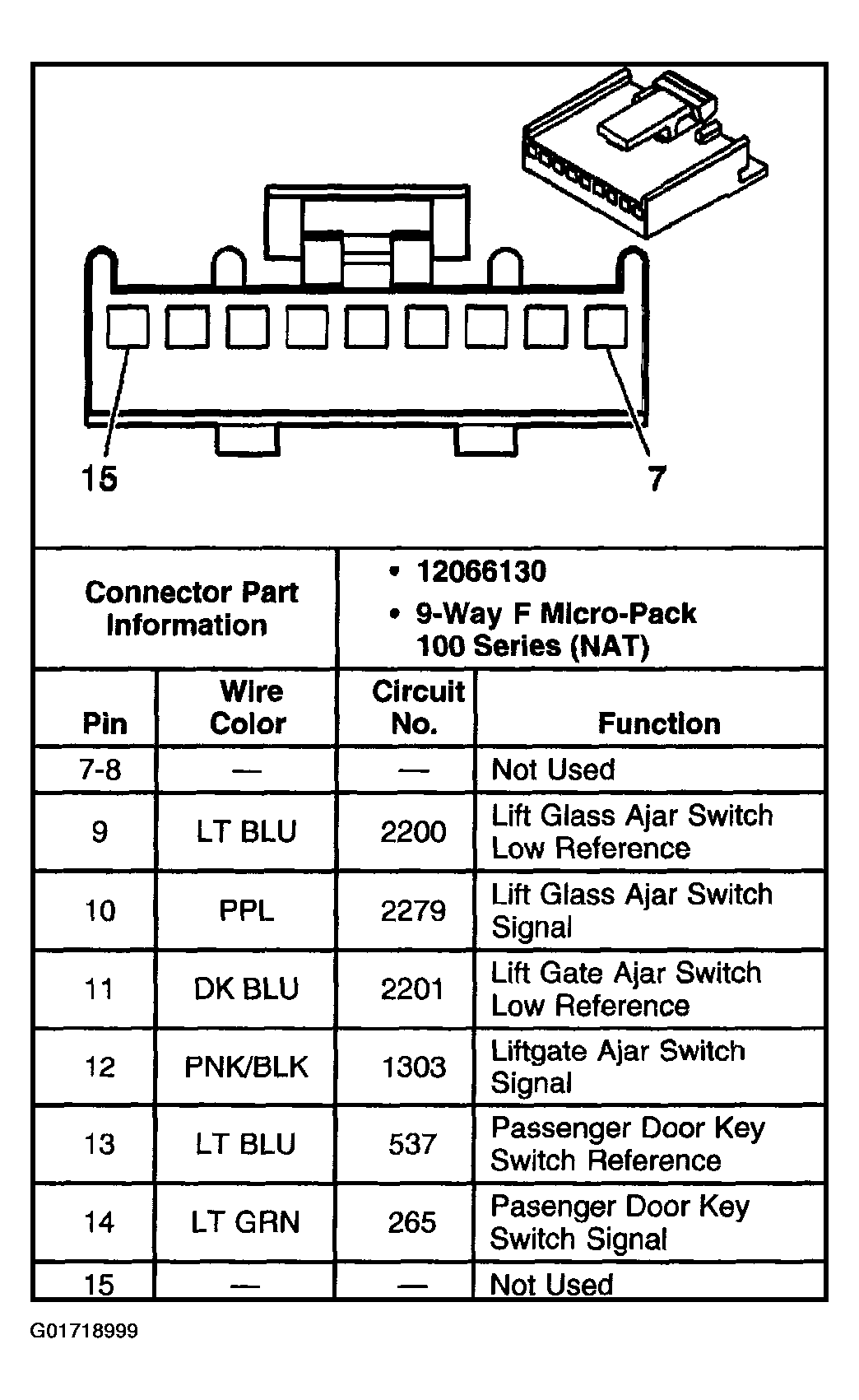

Fig 3: Liftgate Module (LGM) - C3

Courtesy of GENERAL MOTORS CORP.

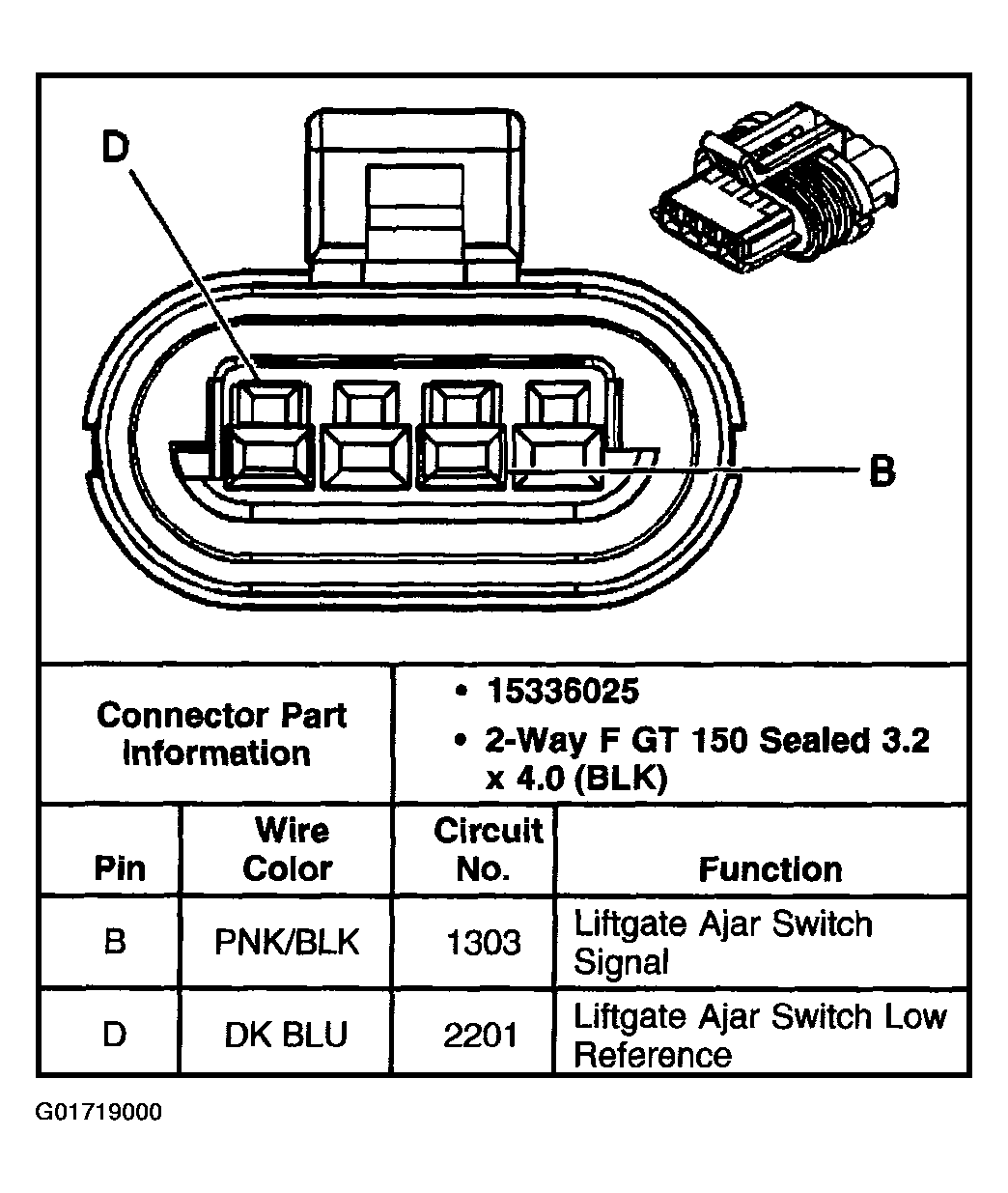

Fig 4: Liftgate Ajar Switch

Courtesy of GENERAL MOTORS CORP.

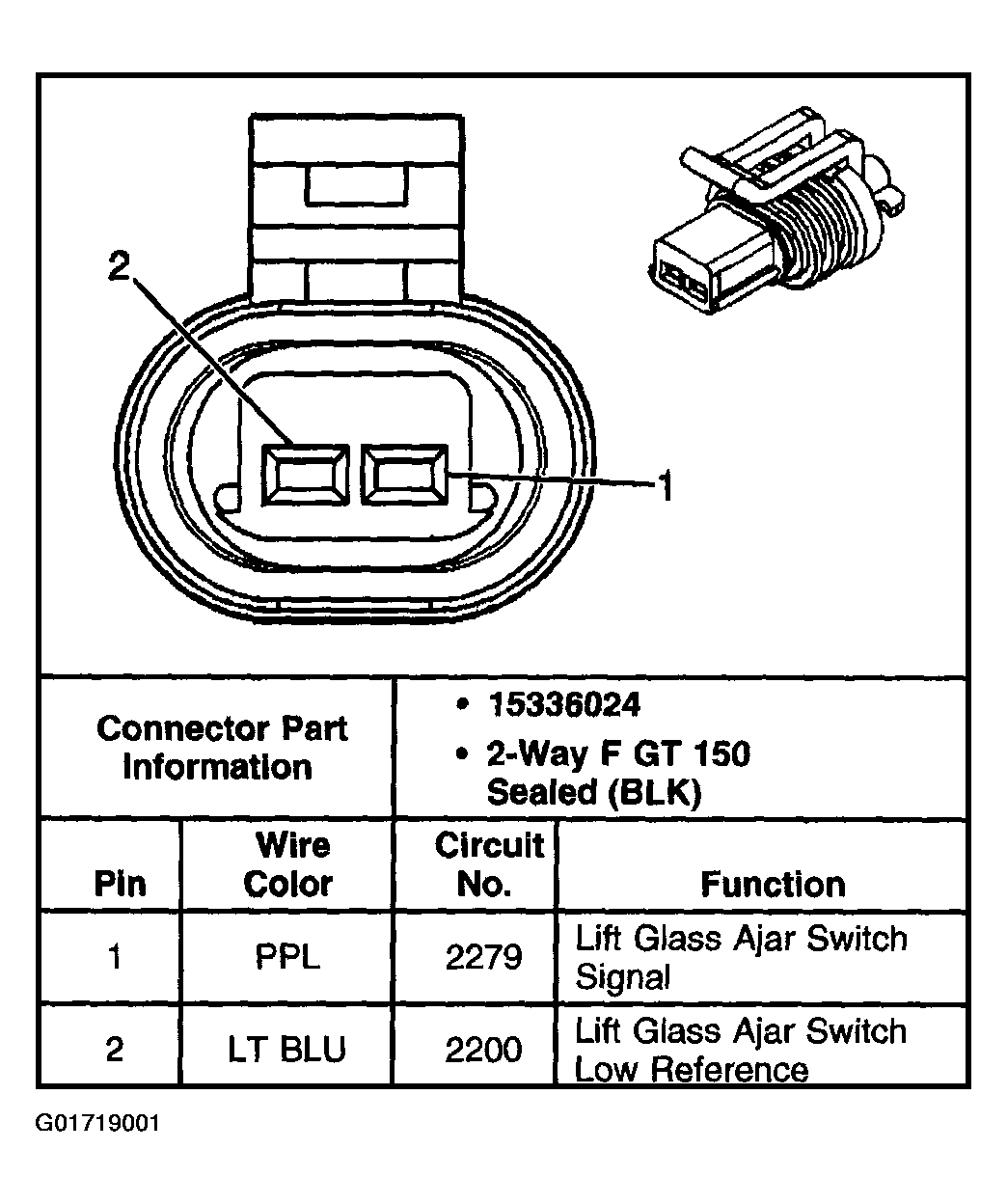

Fig 5: Liftglass Ajar Switch

Courtesy of GENERAL MOTORS CORP.
