Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

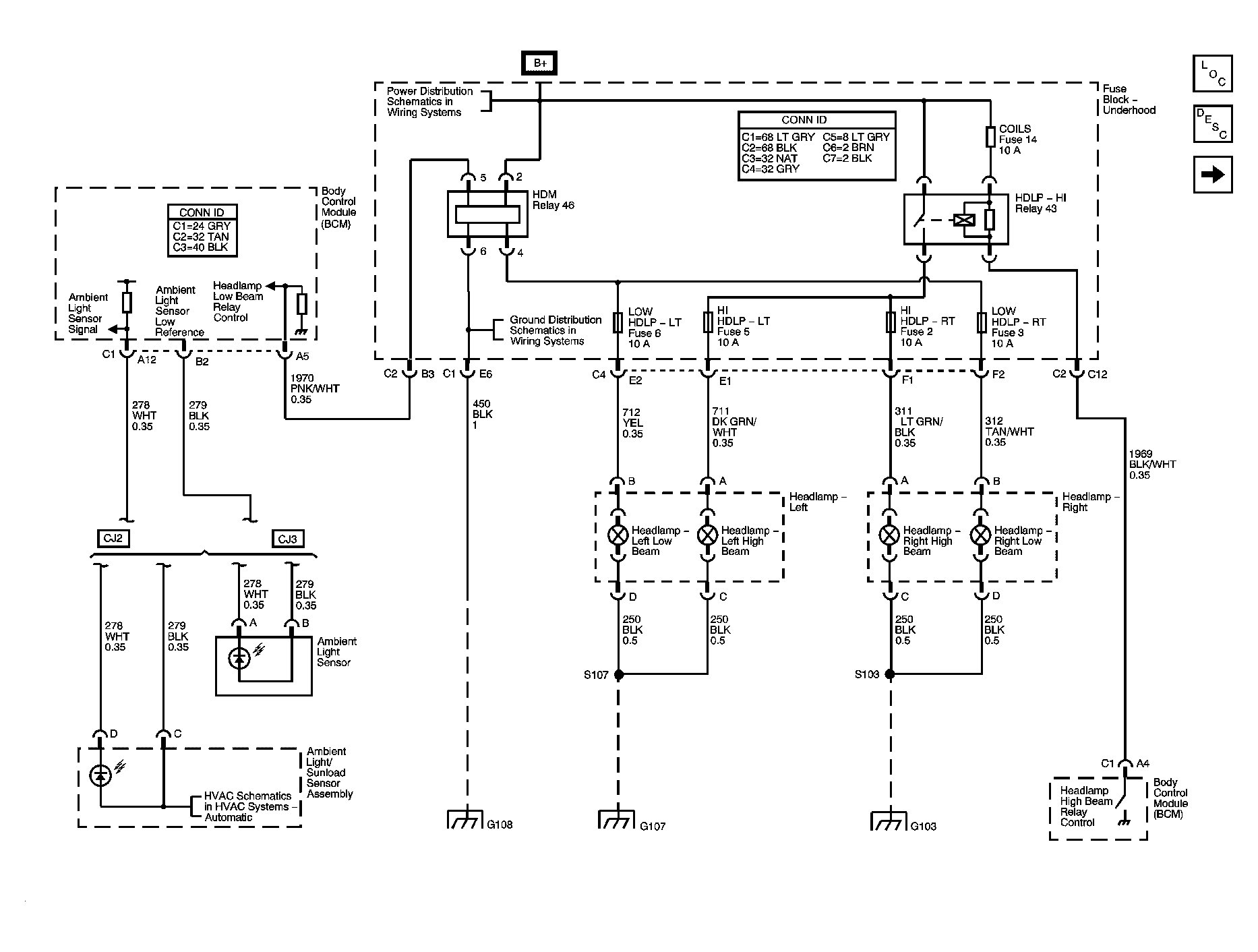

Fig 1: Headlamps Schematic
GM675947Courtesy of GENERAL MOTORS CORP.

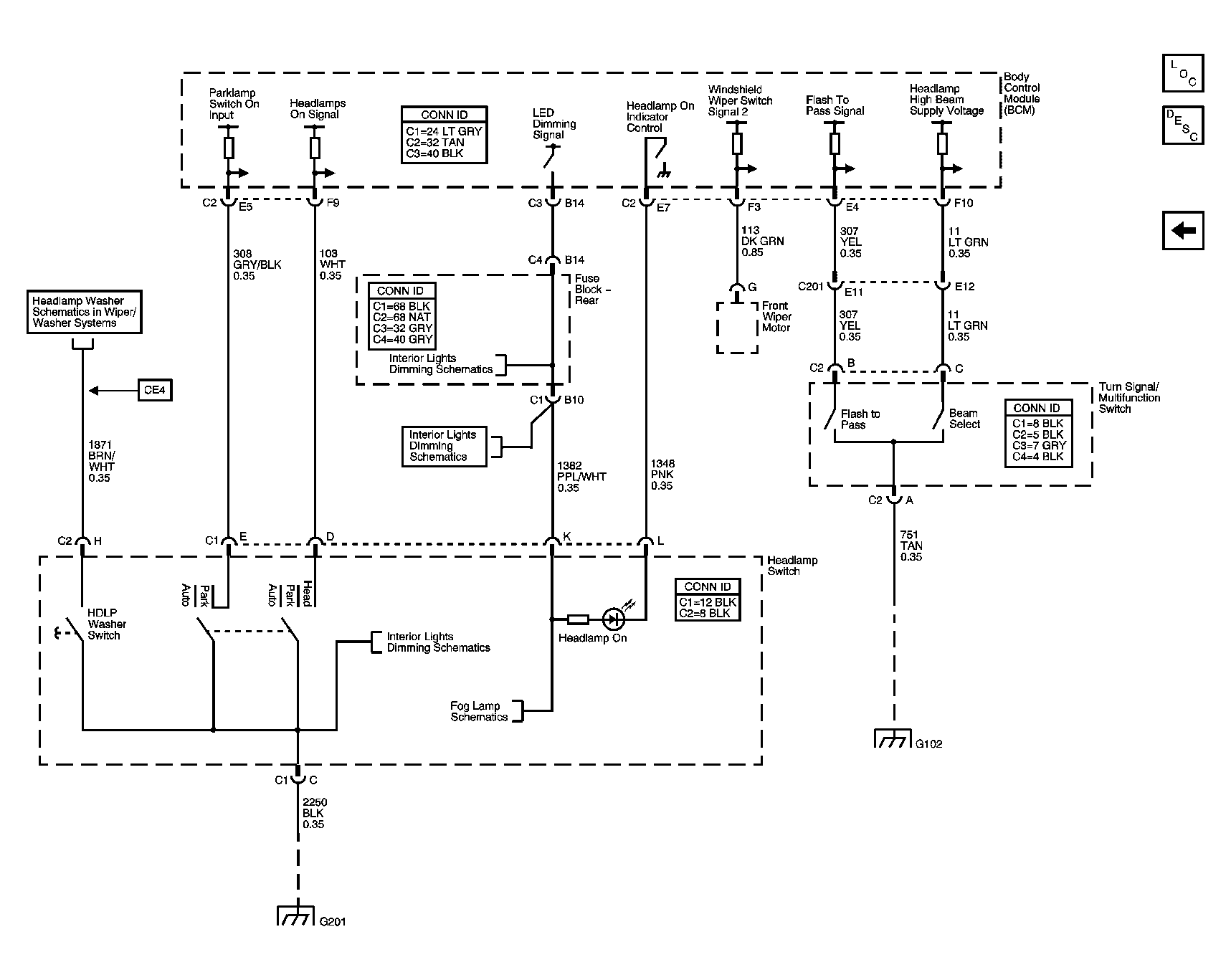

Fig 2: Headlamp Switch Schematic
GM675950Courtesy of GENERAL MOTORS CORP.
