Exterior Lights Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

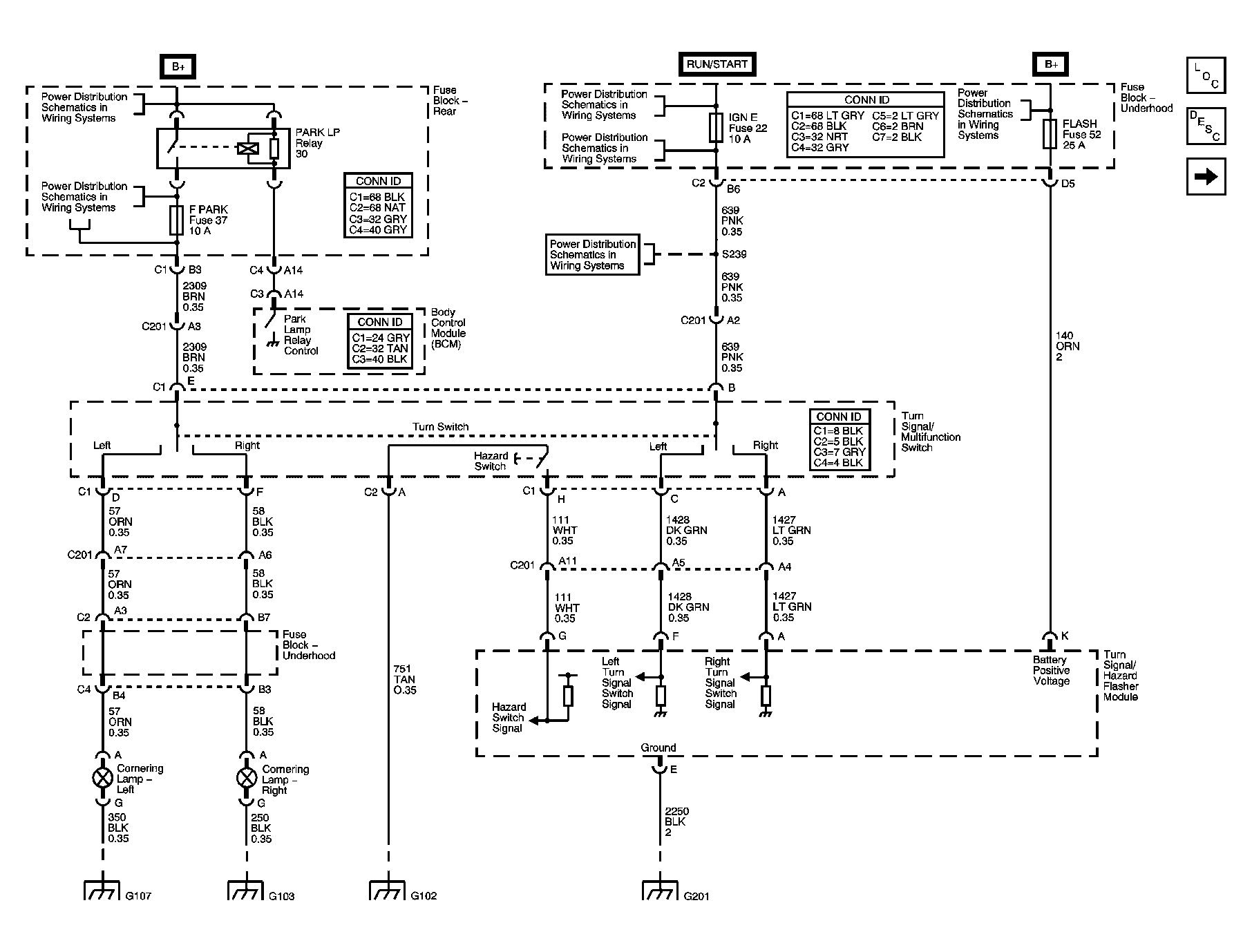

Fig 1: Park Lamp Control, Turn Signal Inputs, & Hazard Switch Schematic

Courtesy of GENERAL MOTORS CORP.

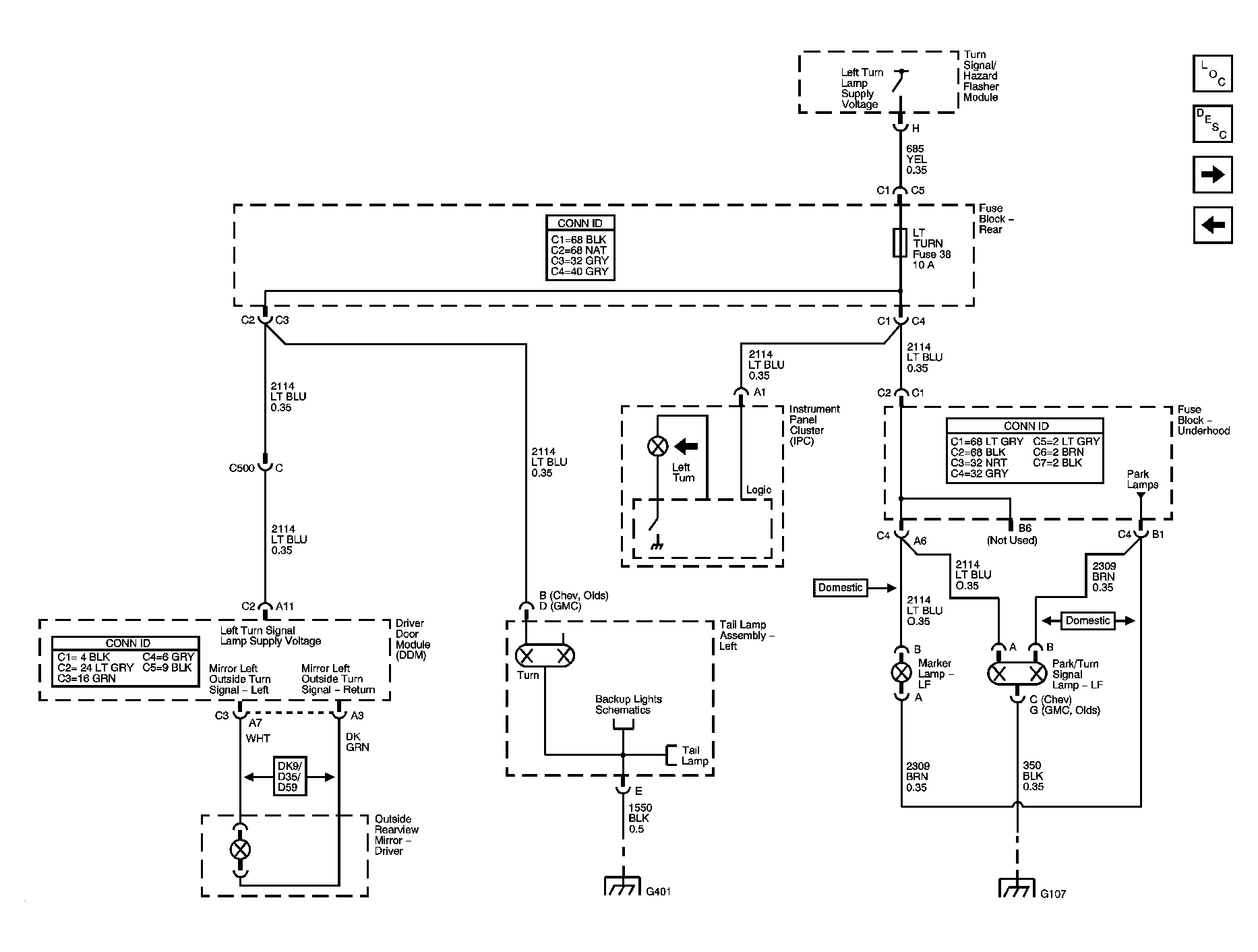

Fig 2: Left Turn Signals Schematic

Courtesy of GENERAL MOTORS CORP.

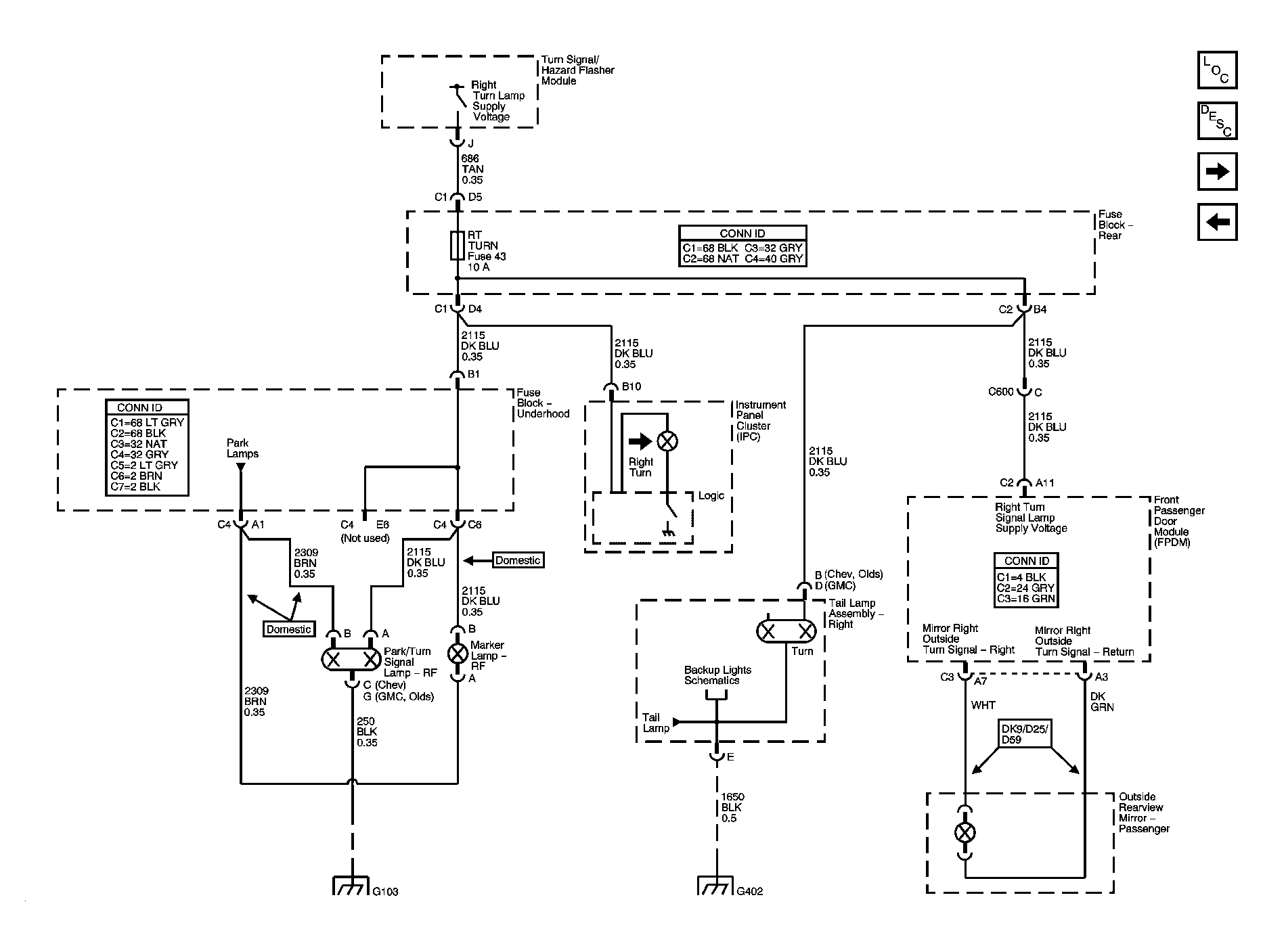

Fig 3: Right Turn Signals Schematic

Courtesy of GENERAL MOTORS CORP.

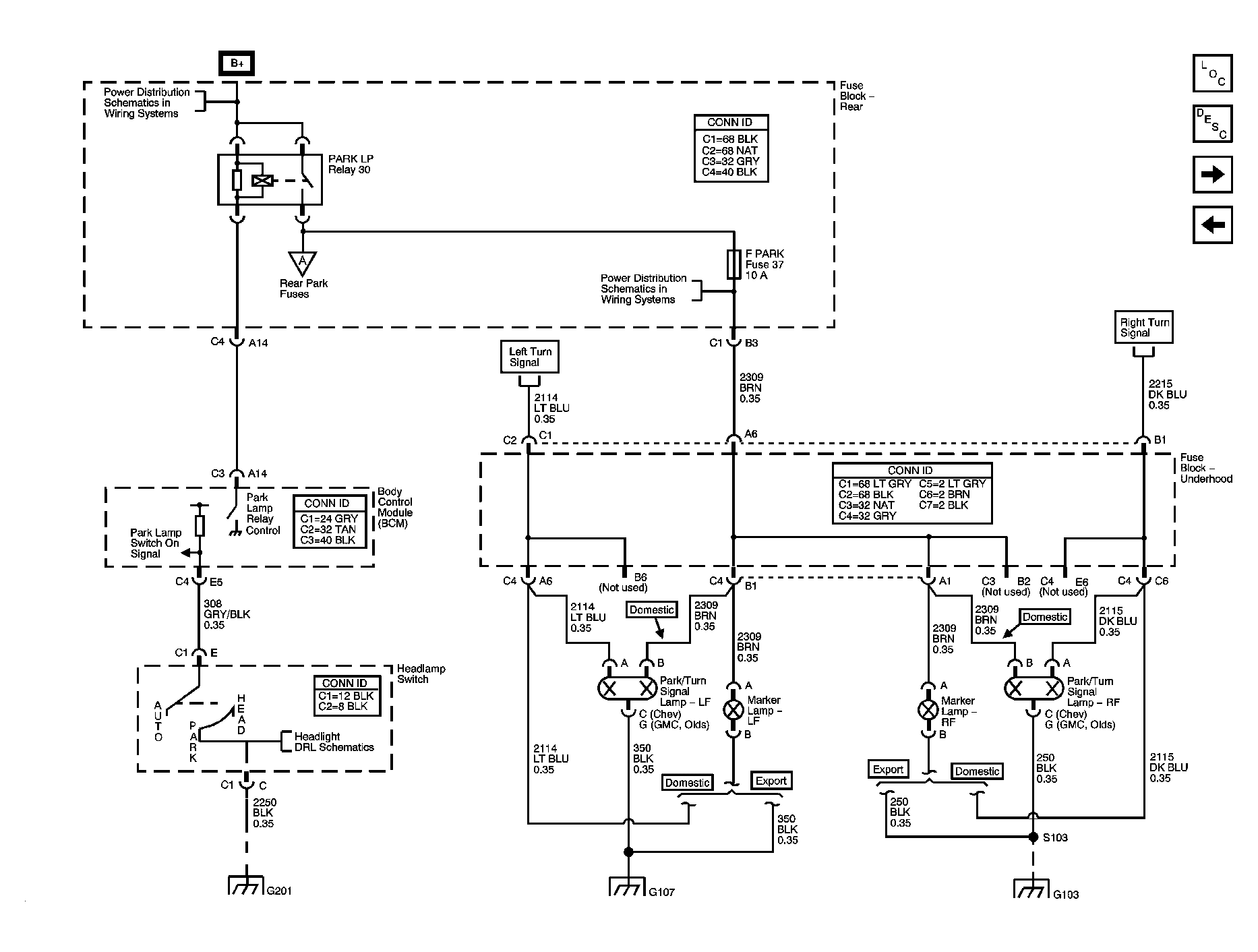

Fig 4: Front Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

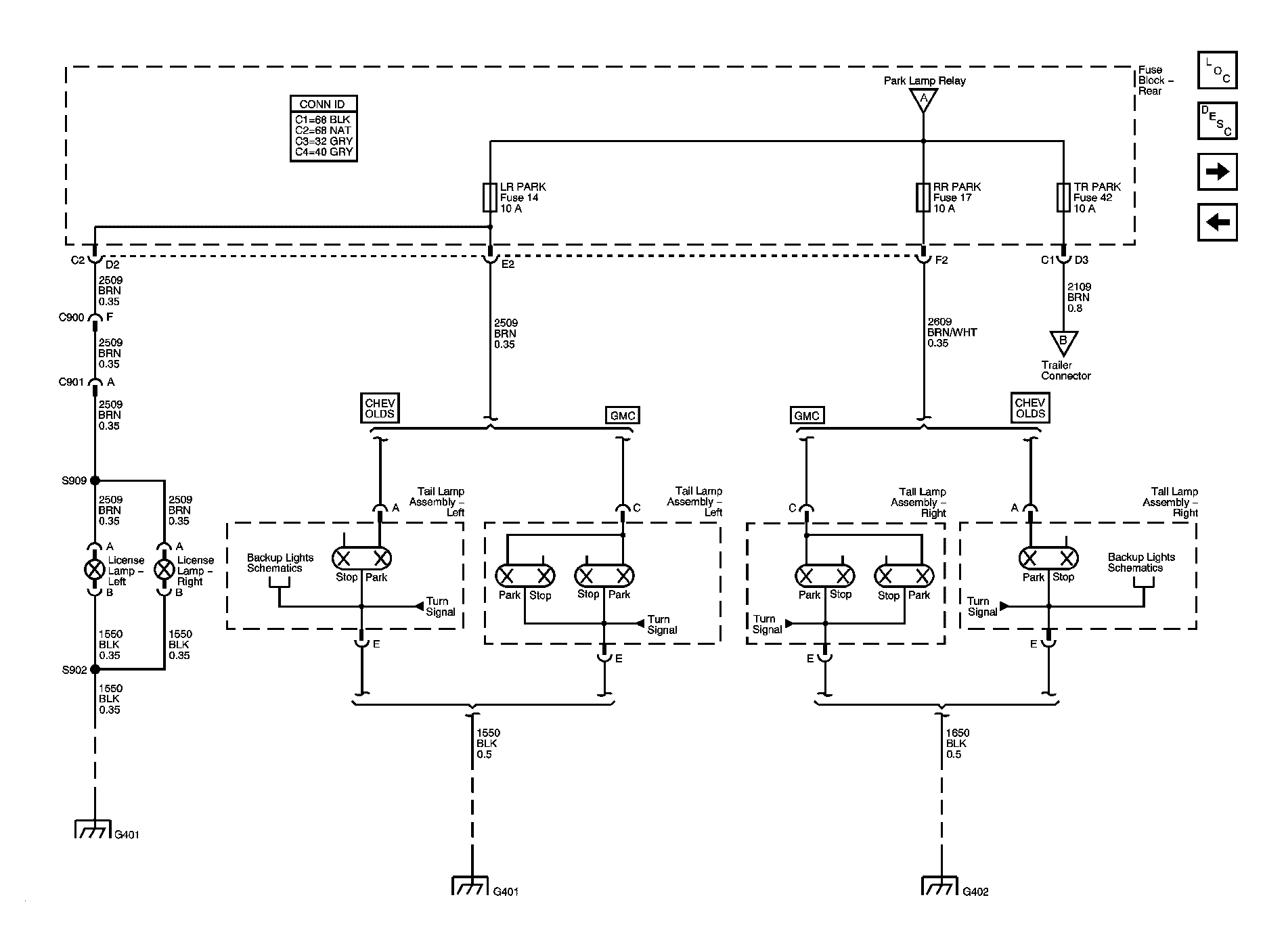

Fig 5: License & Tail Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

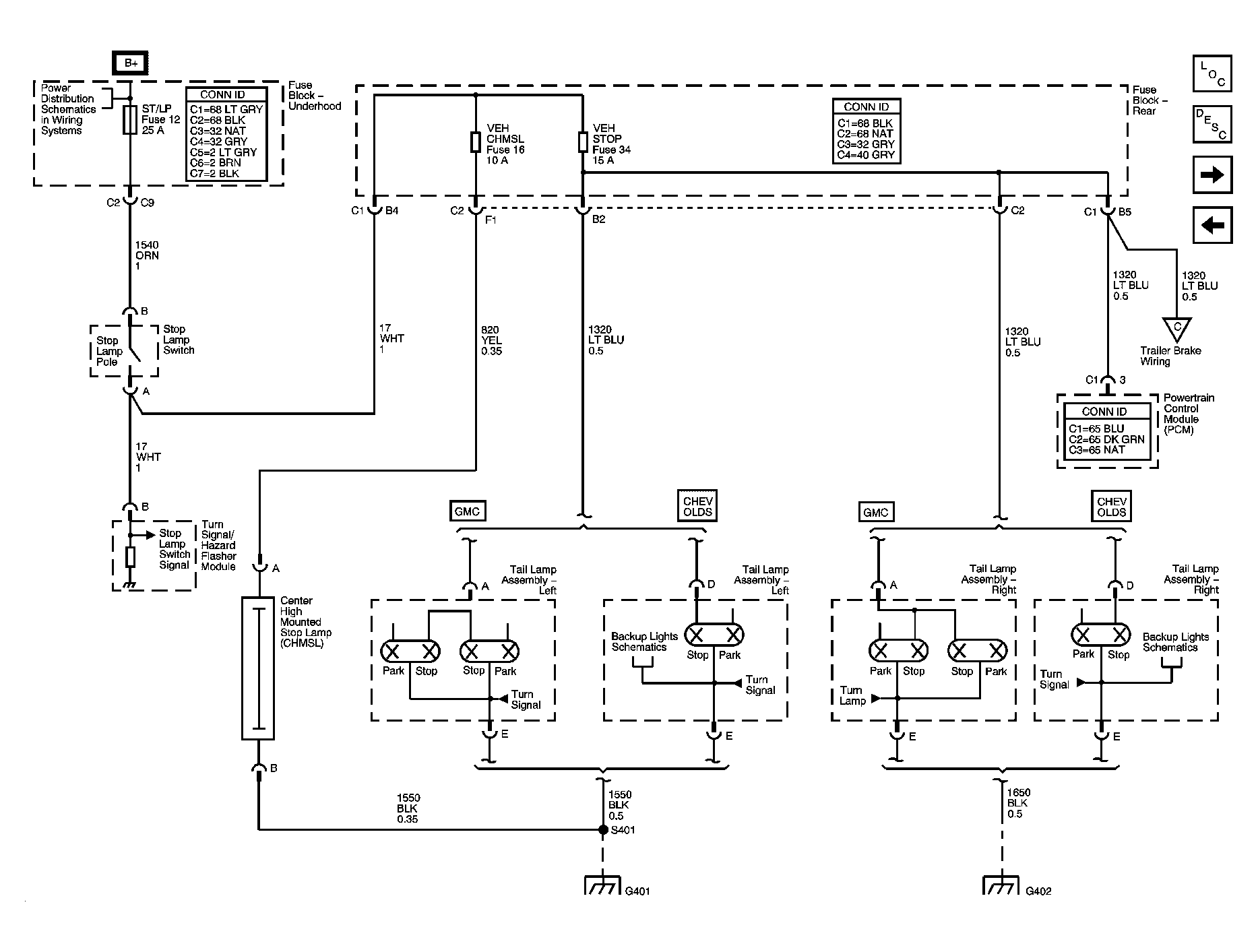

Fig 6: Stop Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Backup Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

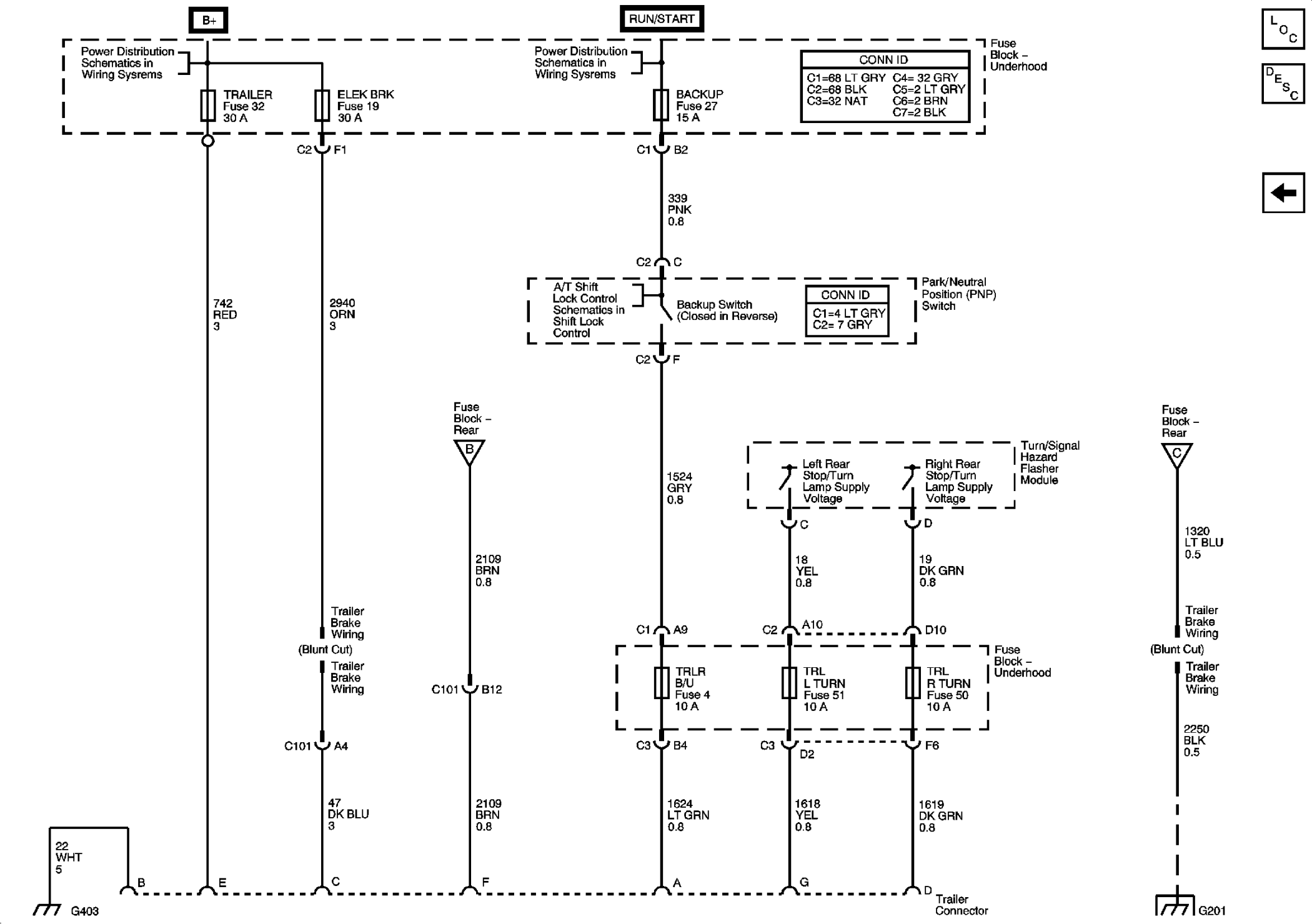

Fig 8: Trailer Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
