Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the left side second row seat in order to gain access to the bussed electrical center.
  2. Remove the bussed electrical center protective covers.
    Fig 1: View Of Rear Electrical Center Cover
    GM683548Courtesy of GENERAL MOTORS CORP.
  3. Use the J 43244  in order to remove the fog lamp relay from the bussed electrical center.

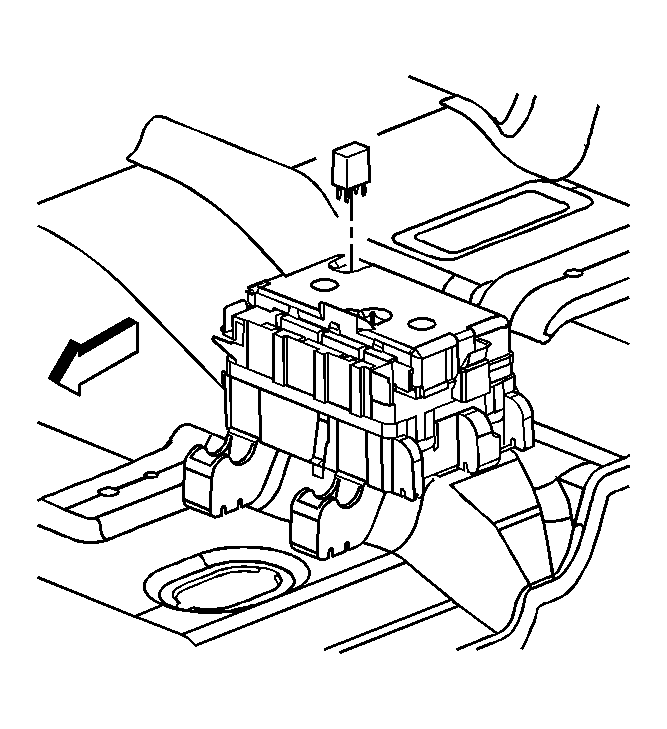

    Fig 2: Removing/Installing Fog Lamp Relay
    GM742555Courtesy of GENERAL MOTORS CORP.
