Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
Disconnect the battery positive cable (4) from the battery.

Fig 1: Identifying Battery cable Components
Courtesy of GENERAL MOTORS CORP.

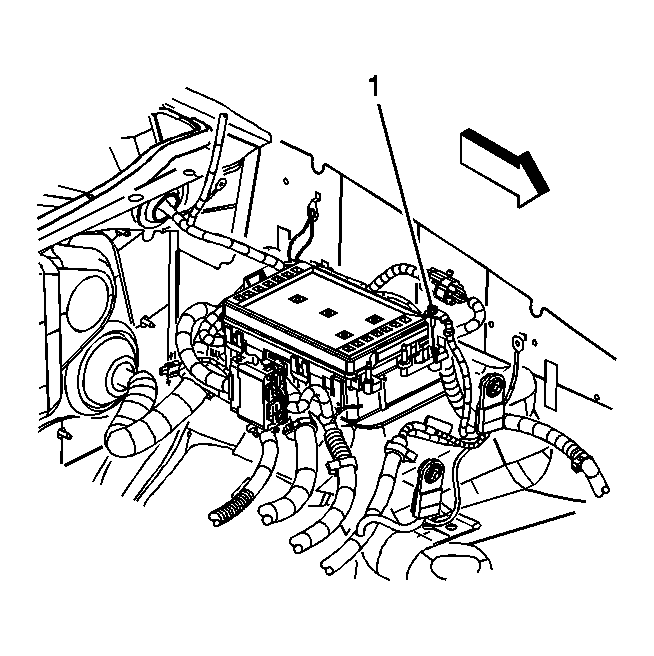

Disconnect the positive cable lead from the junction block (1).

Fig 2: View Of Positive Cable Lead
Courtesy of GENERAL MOTORS CORP.
Disconnect the battery cable conduit from the conduit retaining clip.
Remove the battery positive cable from the conduit.
Remove the battery positive cable harness from the fir-tree retainer on the powertrain control module (PCM) bracket.
Disconnect the positive cable lead from the starter (1).

Fig 3: View Of Starter & Related Components
Courtesy of GENERAL MOTORS CORP.
Disconnect the positive cable lead from the generator (1).

Fig 4: Rear Of Generator (Alternator) View
Courtesy of GENERAL MOTORS CORP.
Remove the battery positive cable from the vehicle.
