Lifting Front Of Vehicle With A Floor Jack

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.

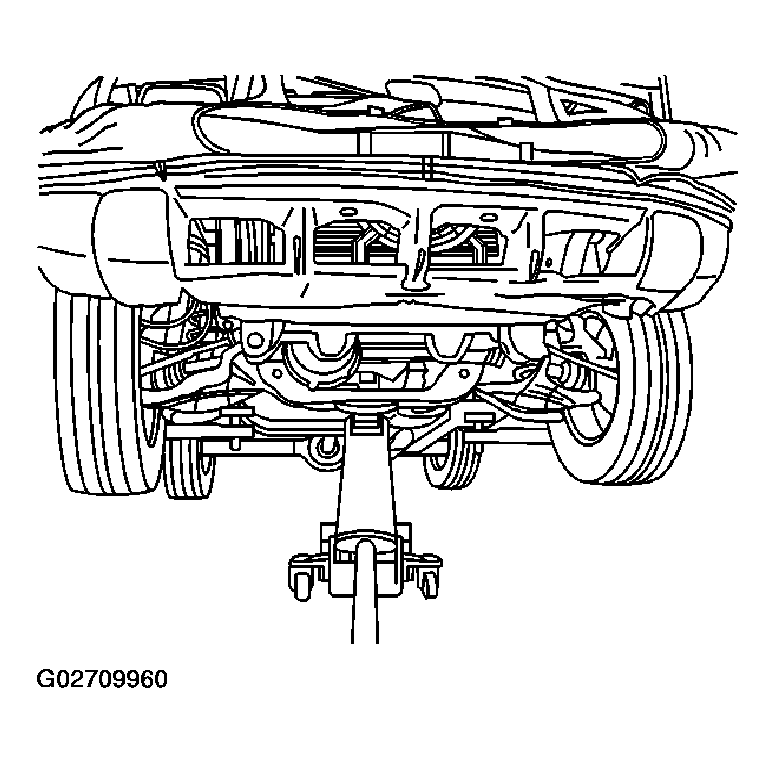

Fig 1: Lifting Front Of Vehicle By Placing Floor Jack Lift Pad
G02709960Courtesy of GENERAL MOTORS CORP.

Lift the front of the vehicle by placing the floor jack lift pad at the center of the front suspension crossmember.
