Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat, if required. Refer to SEAT REPLACEMENT-REAR (EXTENDED CAB W/4TH DOOR) or SEAT REPLACEMENT-REAR (EXTENDED CAB) or SEAT REPLACEMENT-REAR (60/40 SPLIT) .
Remove the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT-FRONT SEAT .
Remove the rear seat belt to body bolts.
Remove the rear seat belt retractor to body bolt (1).

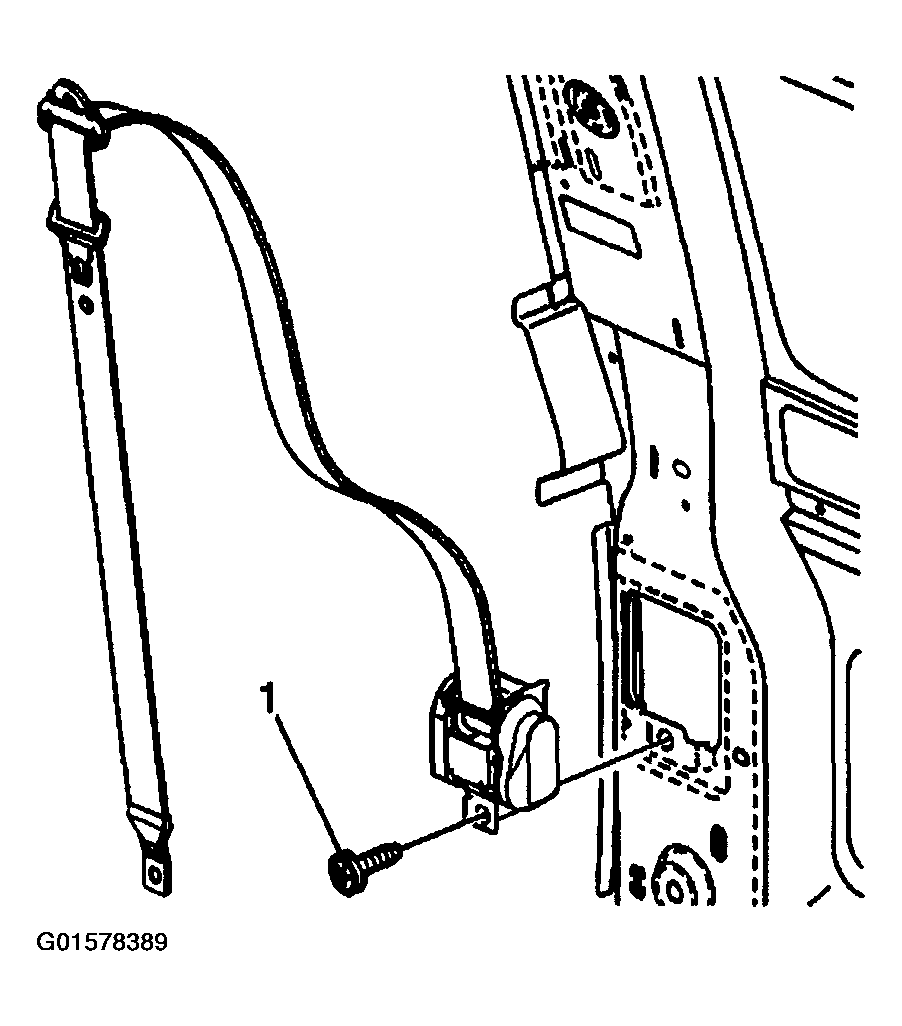

Fig 1: Removing Rear Seat Belt Retractor To Body Bolts (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Remove the retractor from the vehicle.
