Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Position the seat belt retractor onto the seat.
Line up the tab on the retractor to the tab on the seat frame.

NOTE: Refer to FASTENER NOTICE .
Install the upper anchor bolt.
Tighten

Tighten the bolt to 53 N.m (39 lb ft).

Fig 1: Installing Upper Anchor Bolt (Left Front)
Courtesy of GENERAL MOTORS CORP.
Install the retractor tower cover.
Install the retractor tower cover retaining screw.
Tighten

Tighten the screw to 2 N.m (18 lb in).

Fig 2: Installing Retractor Tower Cover Retaining Screw (Left Front)
Courtesy of GENERAL MOTORS CORP.
Install the retractor.
Install the retractor bolt.
Tighten

Tighten the bolt to 53 N.m (39 lb ft).
Install the rear cardboard panel retainers.
Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT-FRONT .
Move the seat to its original position.

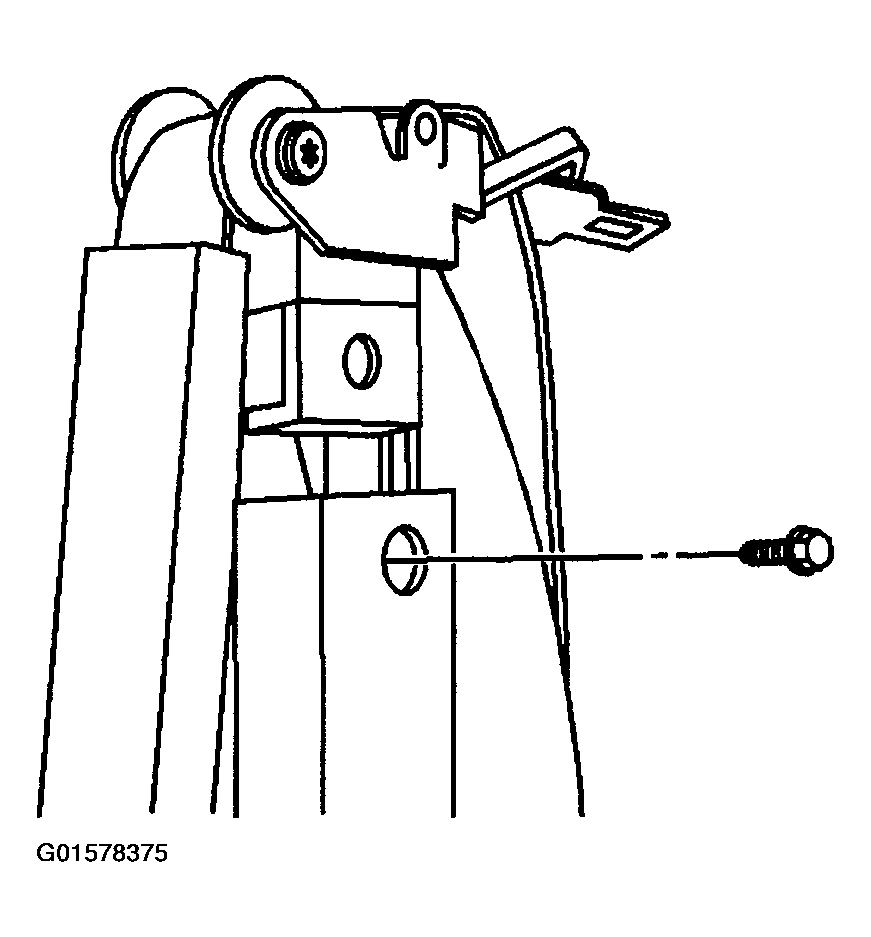

Fig 3: Installing Retractor Bolt (Left Front)
Courtesy of GENERAL MOTORS CORP.
