Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the bolt (1) to the seat belt anchor.
Tighten

Tighten the bolt to 52 N.m (38 lb ft).

Fig 1: Installing Rear Center Seat Belt Anchor Bolt
Courtesy of GENERAL MOTORS CORP.
Install the nut to the seat belt retractor.
Tighten

Tighten the nut to 52 N.m (38 lb ft).
Install the J-Clip under the center armrest.

Fig 2: Installing Seat Belt Retractor Nut
Courtesy of GENERAL MOTORS CORP.
Install the rear seat armrest. Refer to ARMREST REPLACEMENT-REAR SEAT (60/40 SPLIT) .
Install the seat belt guide cover (1).

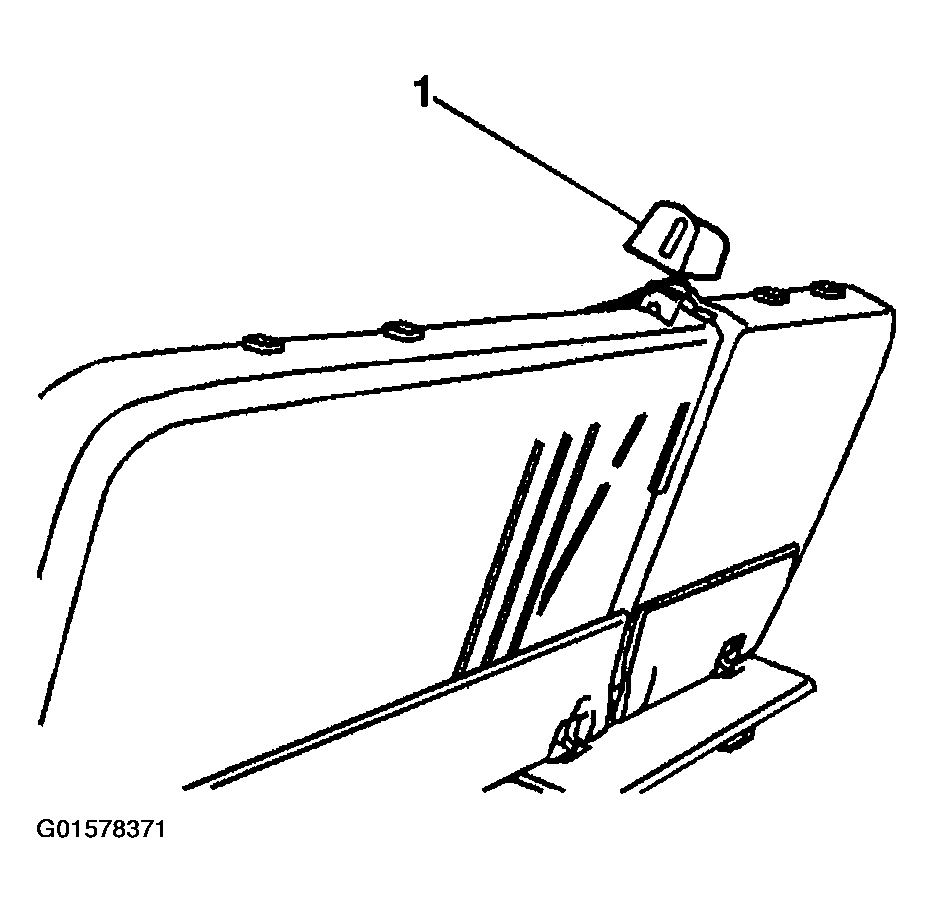

Fig 3: Installing Rear Center Seat Belt Guide Cover
Courtesy of GENERAL MOTORS CORP.
