Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the buckle assembly to the floor panel stud.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear seat belt buckle nuts.

    Tighten

    Tighten the nuts to 53 N.m (39 lb ft).

  3. Fold the rear seat down.
  4. Pull the seat belt buckle through the seat cushion.

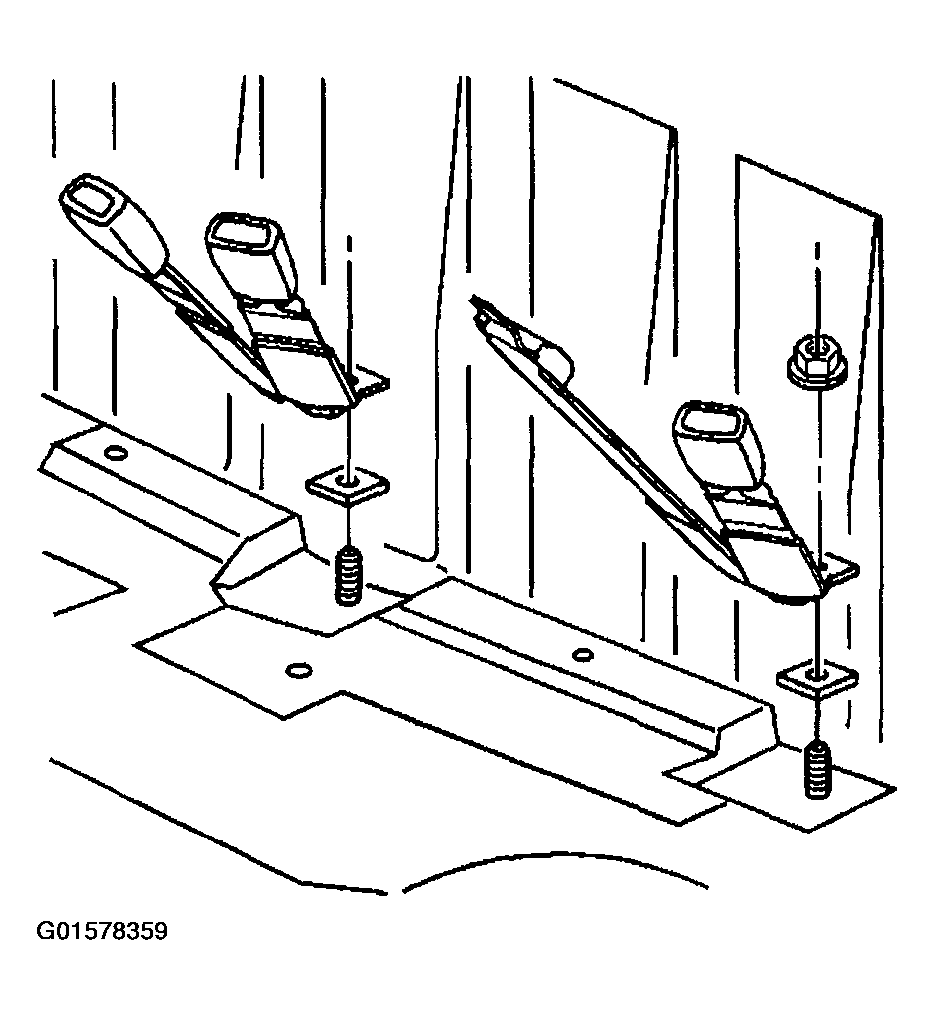

    Fig 1: Rear Seat Belt Buckle & Latch (Extended Cab)
    G01578359Courtesy of GENERAL MOTORS CORP.
