Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion and cover. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT-REAR .
  2. Remove the bolt (13) that retains the buckle assembly (14) to the seat frame.
  3. Remove the buckle assembly

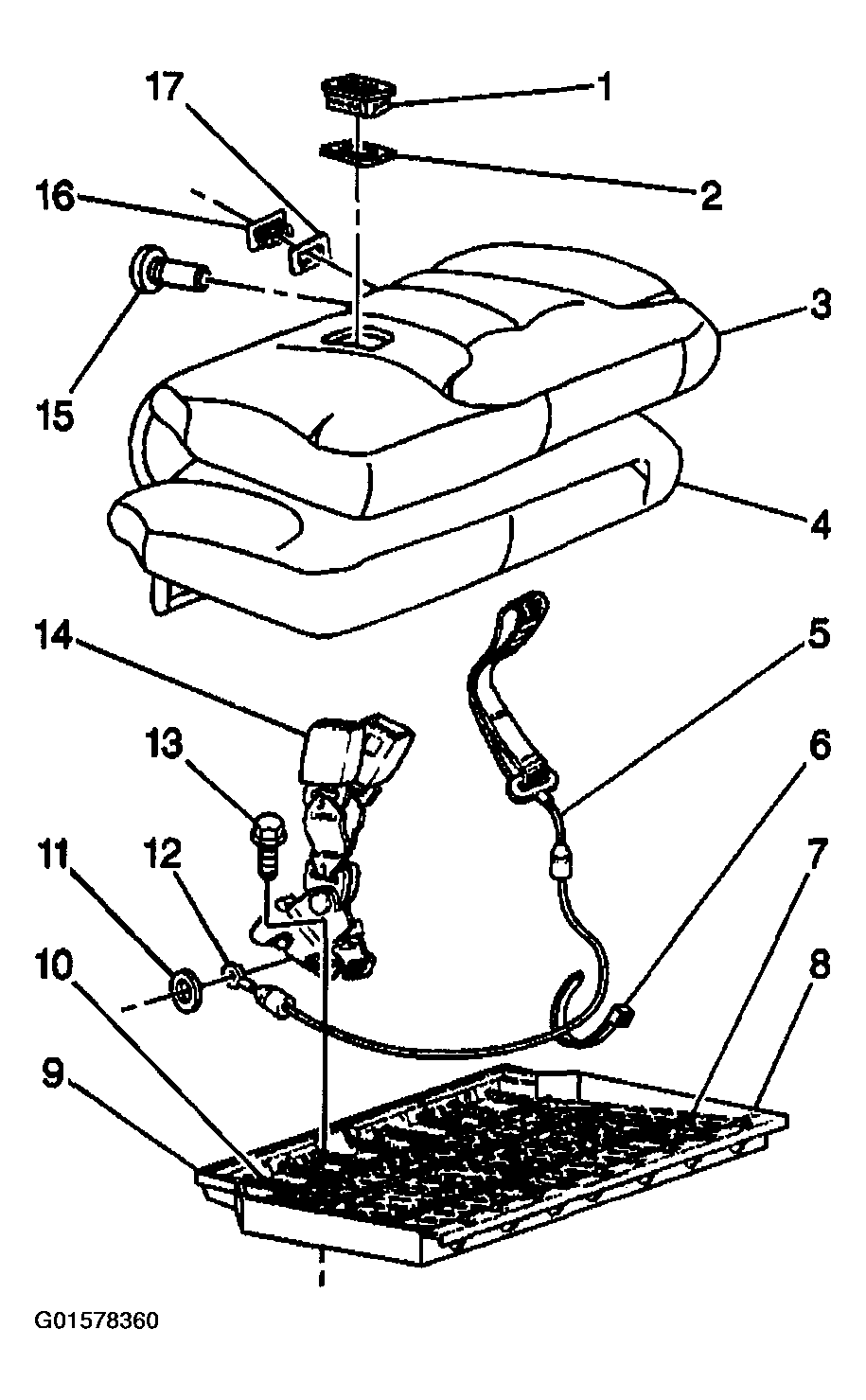

    Fig 1: Seat Belt Buckle & Latch - Rear (Crew Cab)
    G01578360Courtesy of GENERAL MOTORS CORP.
