Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the buckle assembly.
NOTE: Refer to FASTENER NOTICE .
Install the bolt (13) that retains the buckle assembly (14) to the seat frame.
Tighten

Tighten the bolts to 53 N.m (39 lb ft).
Install the rear seat cushion and cover. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT-REAR .

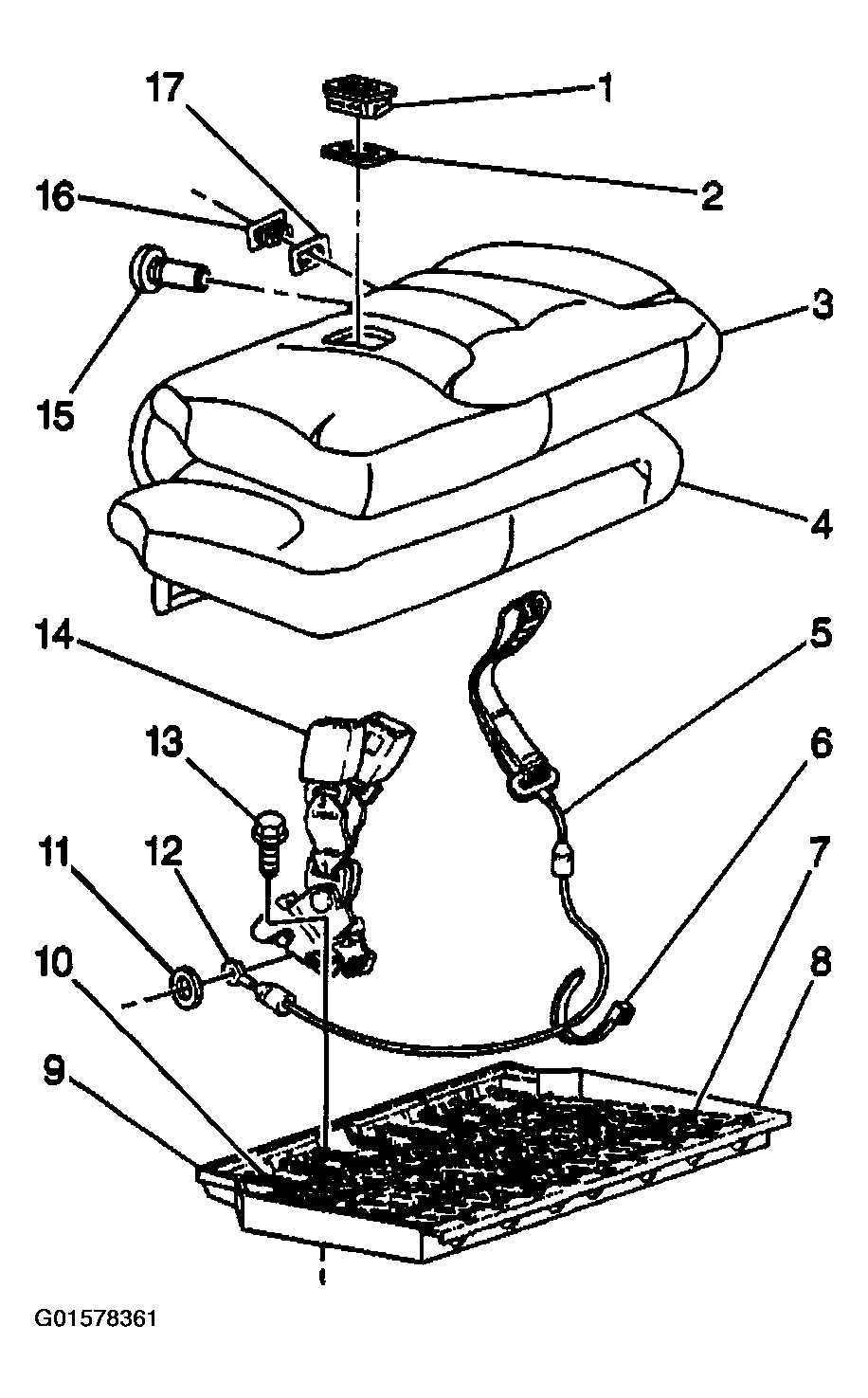

Fig 1: Seat Belt Buckle & Latch - Rear (Crew Cab)
Courtesy of GENERAL MOTORS CORP.
