Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle in the vehicle.
  2. Connect the electrical connection (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the front seat belt buckle nut (1).

    Tighten

    Tighten the nut to 53 N.m (39 lb ft).

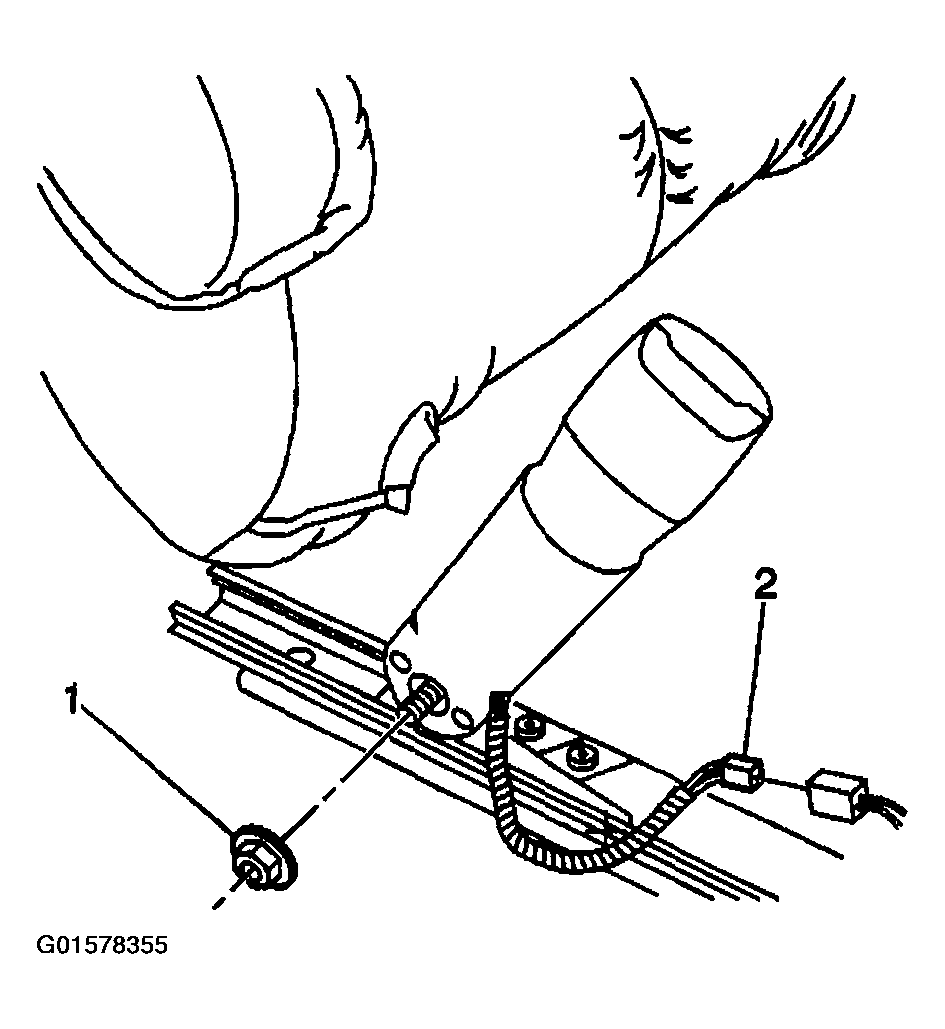

    Fig 1: Installing Front Seat Belt Buckle Nut
    G01578355Courtesy of GENERAL MOTORS CORP.
