Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tool storage compartment. Refer to Tool Storage Compartment Replacement (PRO) .
Remove the rear seat hinge filler panel cover and plastic push pins, in order to gain access to seat riser retaining nuts.
Remove the nuts that retain the tool storage compartment brackets (1), (2) to the seat riser studs.
Remove the bracket from the vehicle.

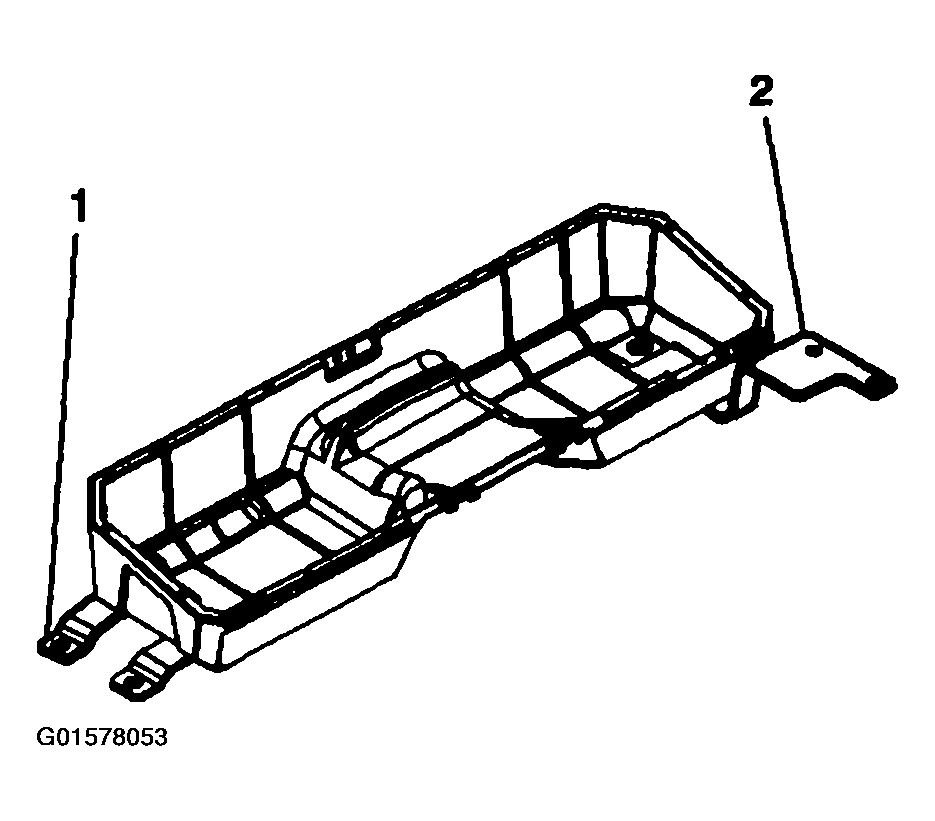

Fig 1: Tool Storage Compartment Bracket (PRO)
Courtesy of GENERAL MOTORS CORP.
