Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the molding straight out in order to release the retainers.
  2. Remove the windshield garnish molding.

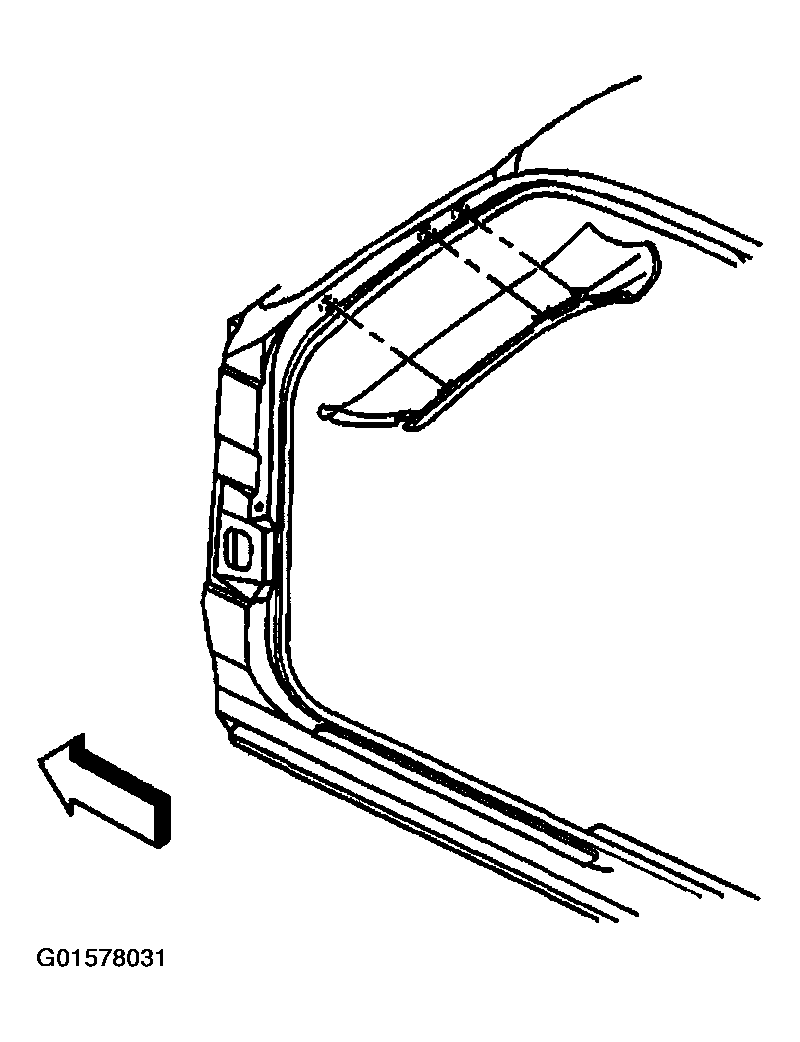

    Fig 1: Windshield Pillar Garnish Molding
    G01578031Courtesy of GENERAL MOTORS CORP.
