Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the bottom of the molding is seated in the slots on the I/P.
  2. Align the molding retainers to slots.
  3. Press the moldings straight in till fully seated.

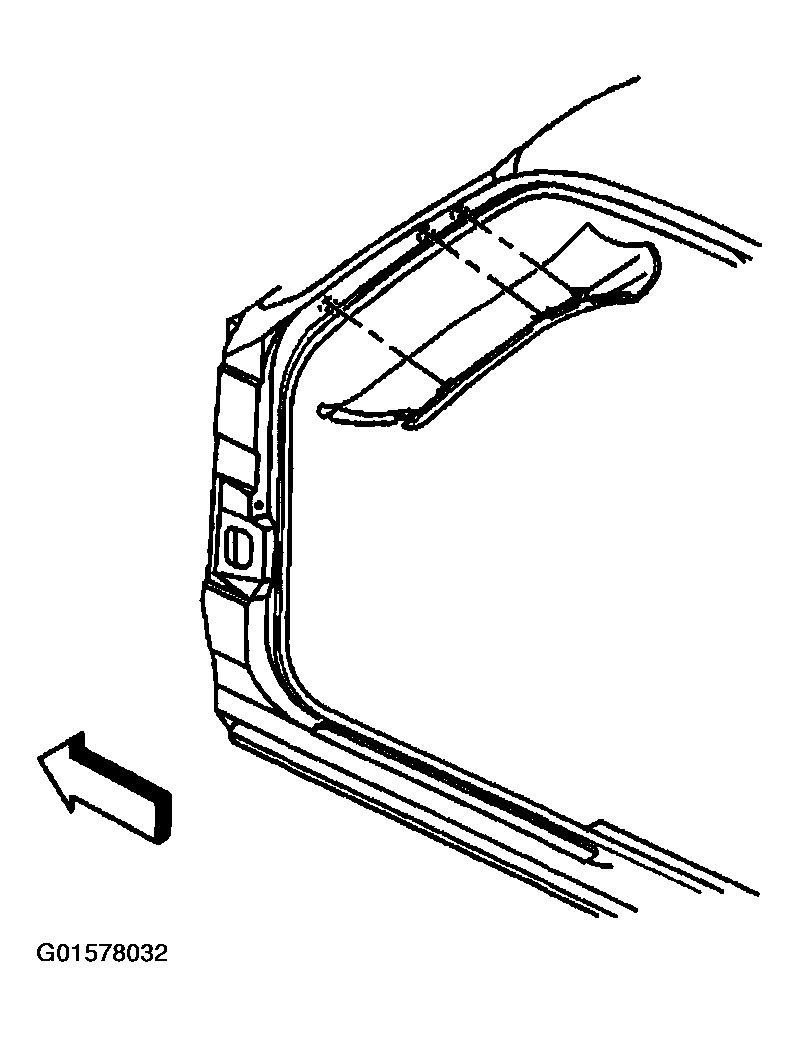

    Fig 1: Windshield Pillar Garnish Molding
    G01578032Courtesy of GENERAL MOTORS CORP.
