Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door sill plates. Refer to Door Sill Plate Replacement-Front   or Door Sill Plate Replacement-Rear .
  2. Remove the pillar moldings by holding the moldings firmly while pulling out.

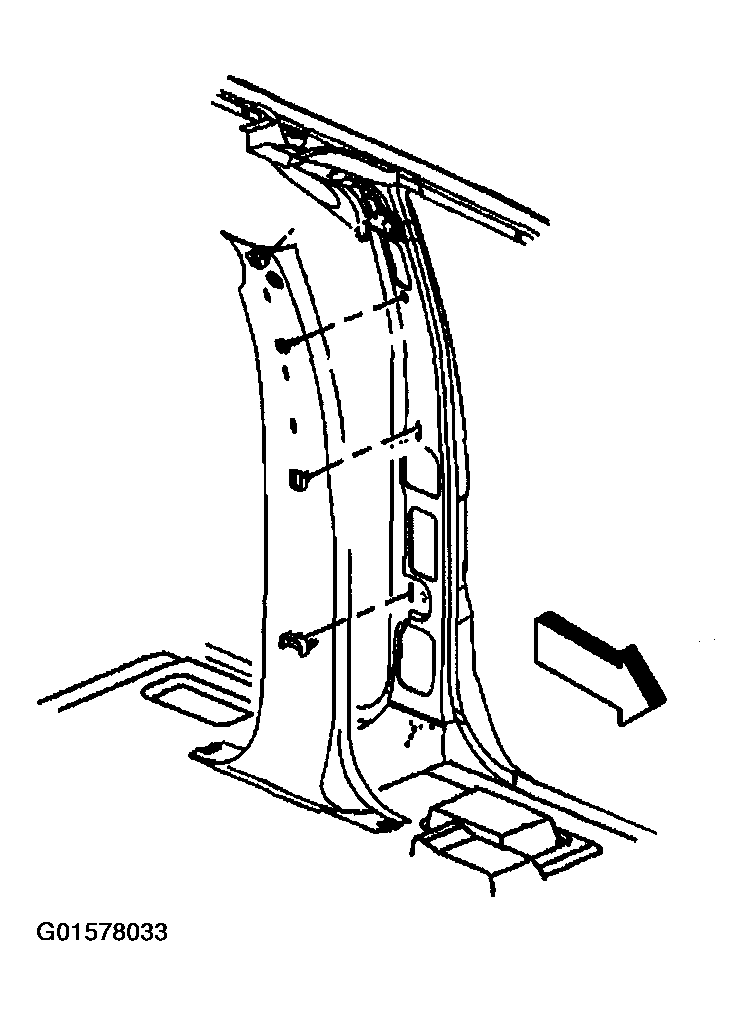

    Fig 1: Center Pillar Garnish Molding
    G01578033Courtesy of GENERAL MOTORS CORP.
