Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pillar moldings by pushing until the molding locks into place.
  2. Install the door sill trim plates. Refer to Door Sill Plate Replacement-Front   or Door Sill Plate Replacement-Rear   .

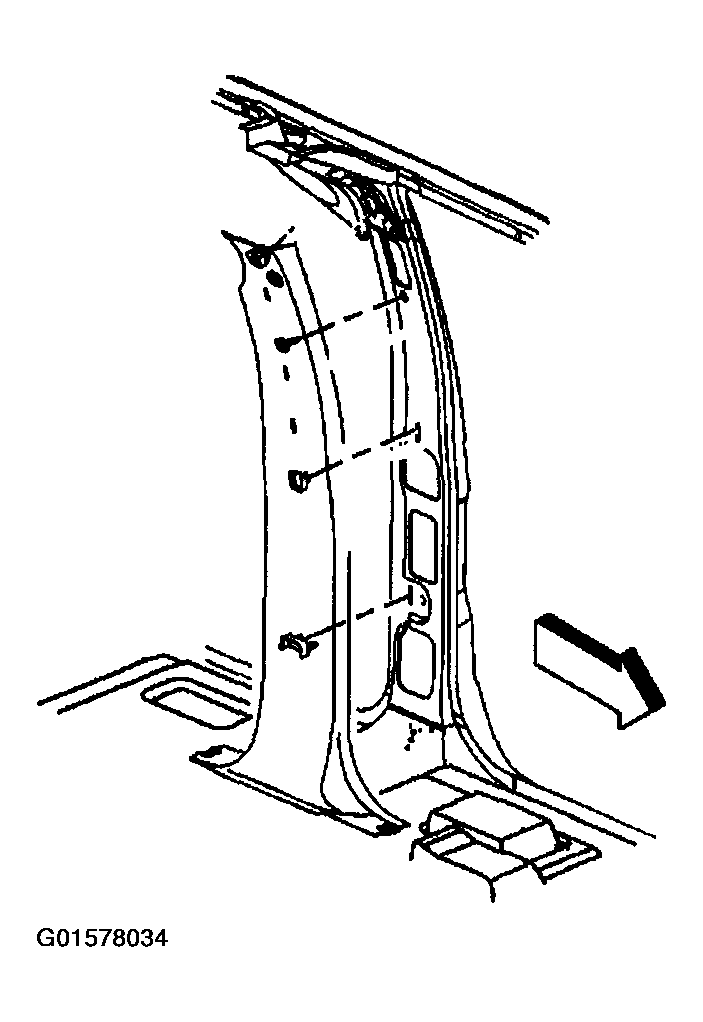

    Fig 1: Center Pillar Garnish Molding
    G01578034Courtesy of GENERAL MOTORS CORP.
