Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sill plate. Firmly pull the sill plate up and out from the retainers.
  2. Remove the sill plate from the vehicle. Start from the front of the door sill. Use a flat-bladed tool in order to pry the door sill plate.

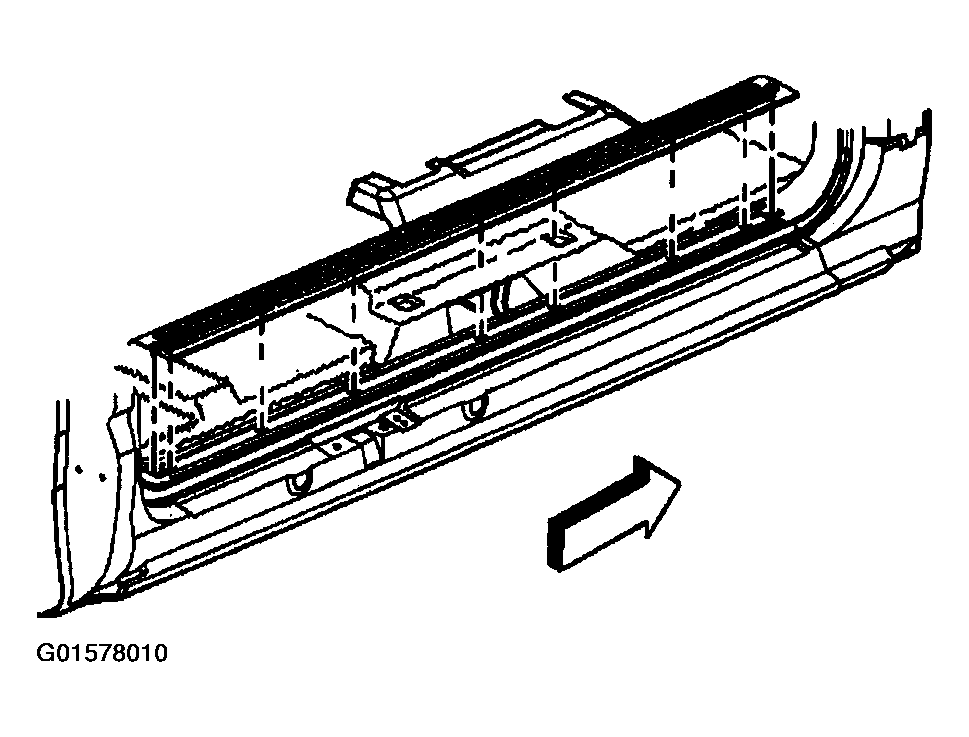

    Fig 1: Door Sill Plate (Front)
    G01578010Courtesy of GENERAL MOTORS CORP.
