Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small size flat-bladed tool in order to pry out the outer part of coat hook.
  2. Pull out the outer part of the coat hook.
    Fig 1: Pulling Out Outer Part Of Coat Hook
    G01578024Courtesy of GENERAL MOTORS CORP.
  3. Push down on the coat hook in order to release the tab from the headliner.
  4. Remove the coat hook from the headliner.

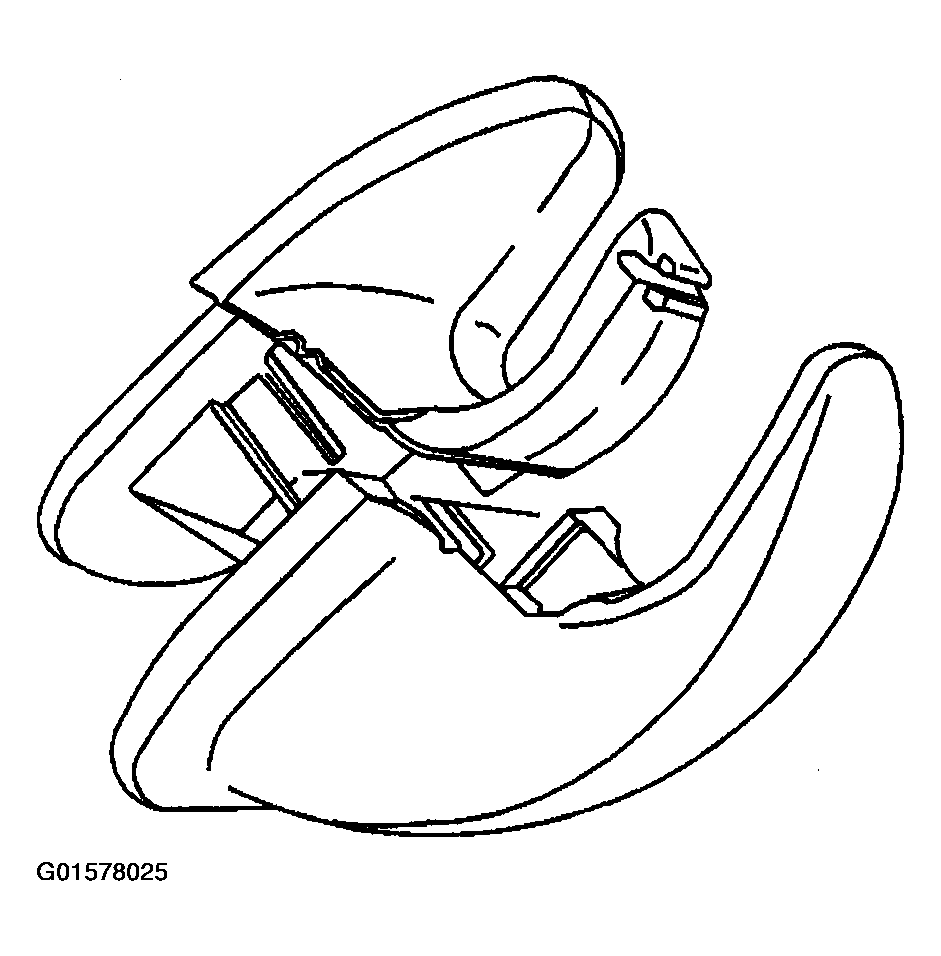

    Fig 2: Removing Coat Hook From Headliner
    G01578025Courtesy of GENERAL MOTORS CORP.
