Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace the inflatable restraint passenger presence system if the passenger seat cushion foam is damaged. Refer to PASSENGER PRESENCE SYSTEM (PPS) .
  2. Connect the cushion heater wiring harness.
  3. Install the seat cushion heater.
  4. Install the seat cushion trim cover. Refer to Seat Cushion Trim Cover And Pad Replacement   .
  5. Install the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  6. Re-zero the inflatable restraint passenger presence system for the front passenger seat. Refer to PASSENGER PRESENCE SYSTEM REZEROING PROCEDURE .

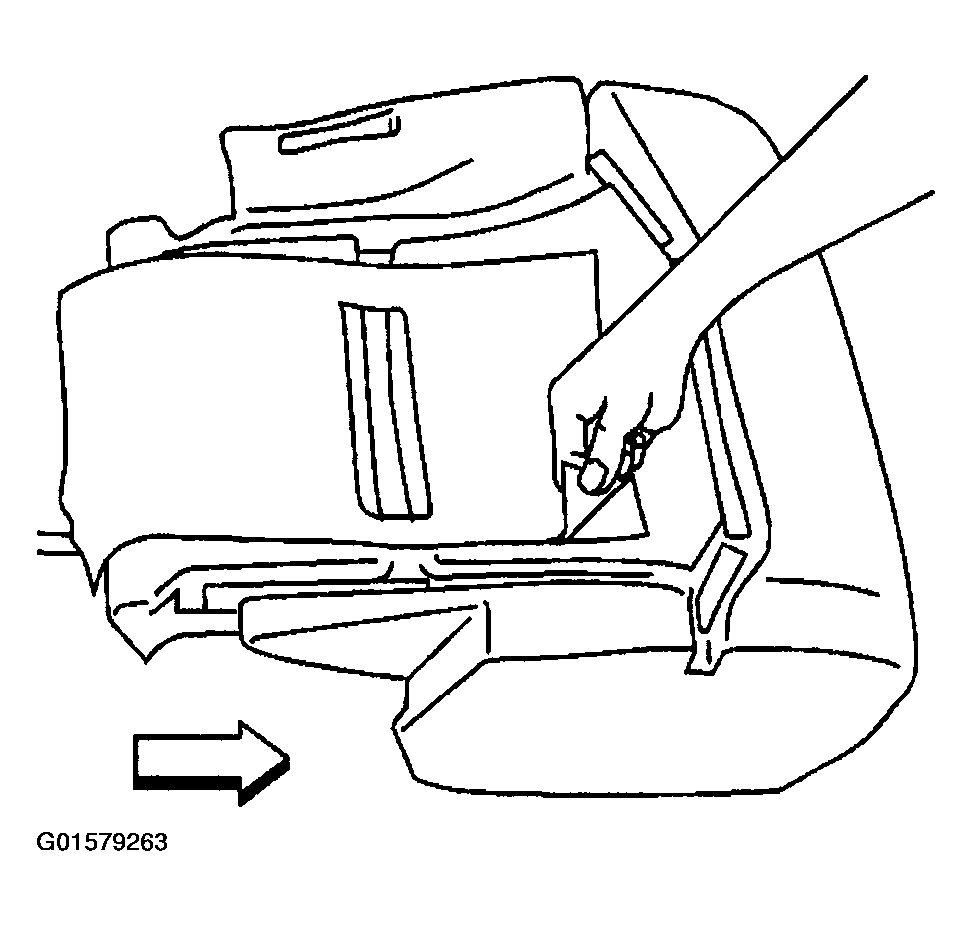

    Fig 1: Front Seat Cushion Heater Element
    G01579263Courtesy of GENERAL MOTORS CORP.
