Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw retaining the recliner handle to the trim panel.
  2. Remove the recliner handle.

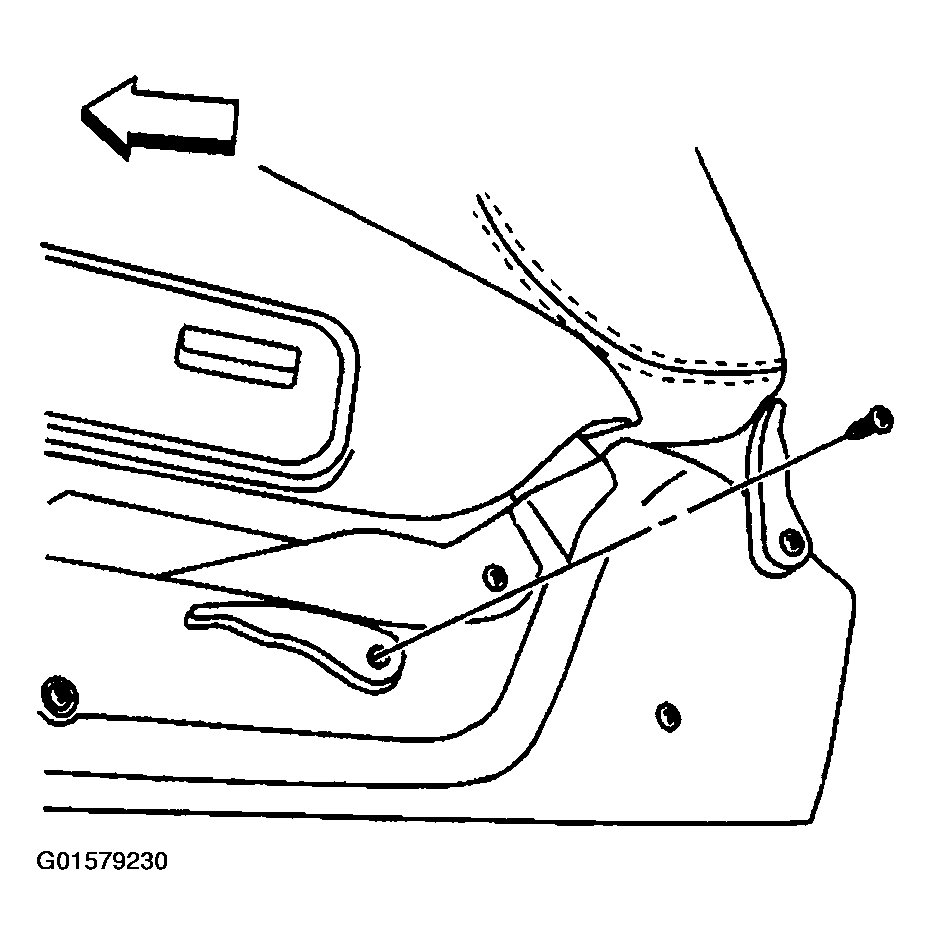

    Fig 1: Front Seat Back Recliner Handle
    G01579230Courtesy of GENERAL MOTORS CORP.
