Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement-Front Bucket   .
  2. Remove the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  3. Remove the seat cushion frame. Refer to Seat Cushion Frame Replacement-Front   .
  4. Remove the seat back frame. Refer to Seat Back Frame Replacement-Front   .
  5. Remove the outboard pivot bolt.

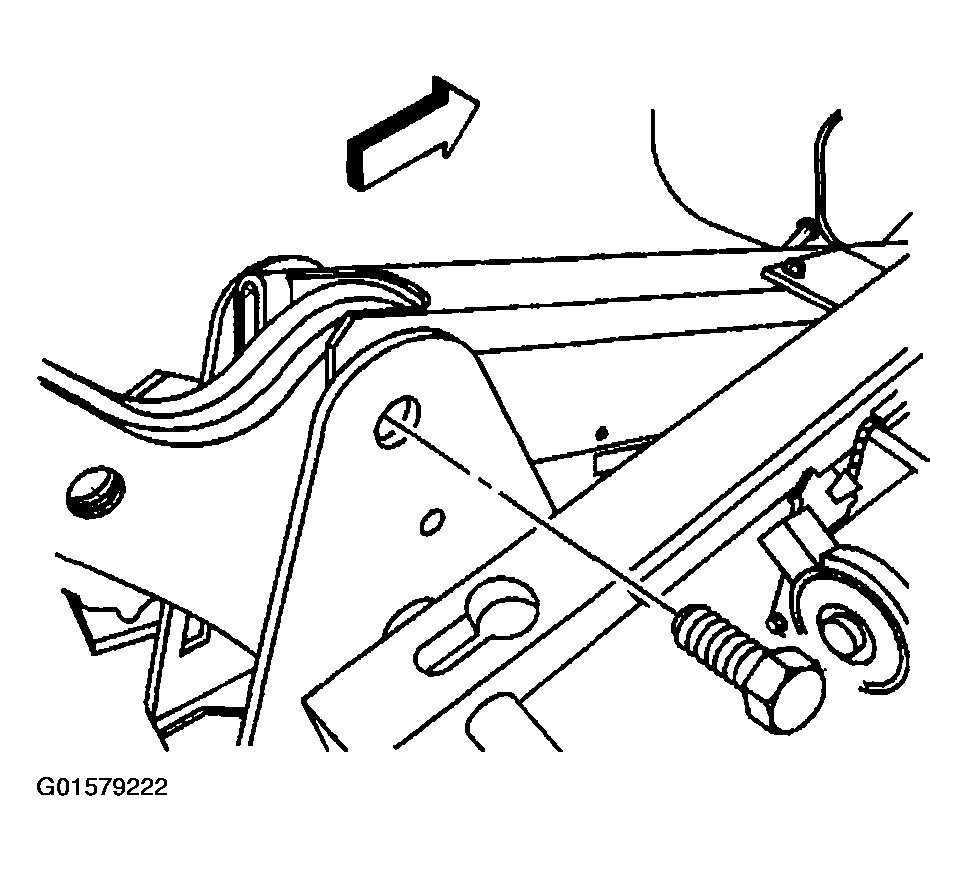

    Fig 1: Removing Outboard Pivot Bolt
    G01579222Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts holding the seat back folding mechanism.

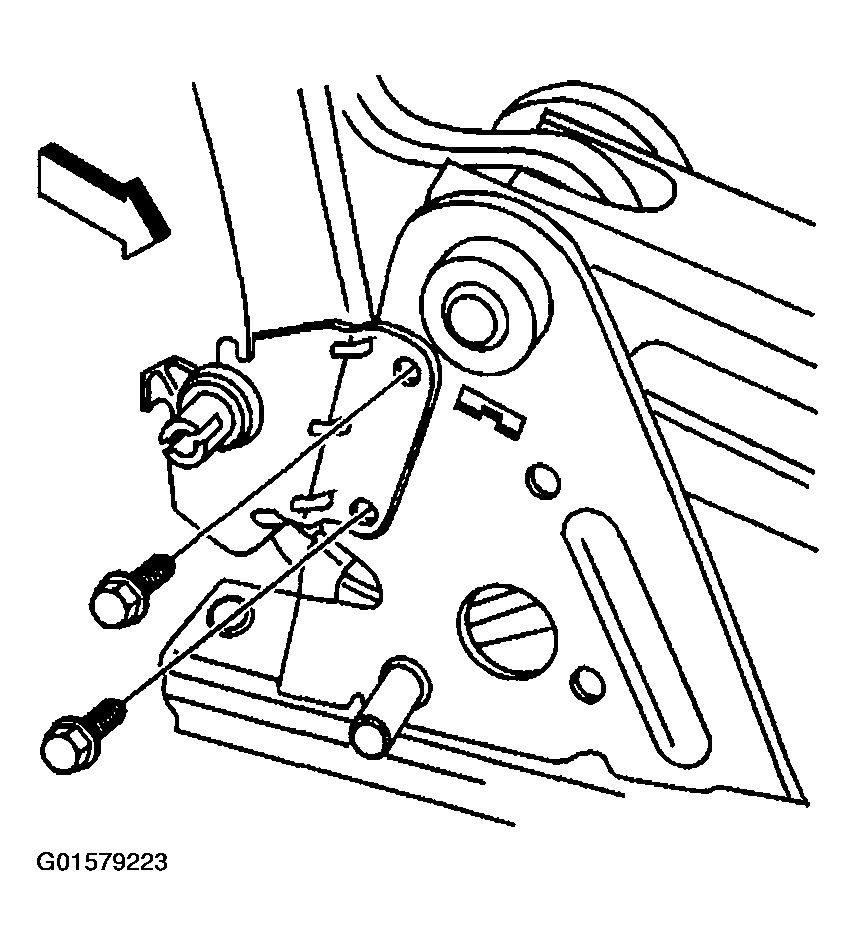

    Fig 2: Removing Bolts Holding Seat Back Folding Mechanism
    G01579223Courtesy of GENERAL MOTORS CORP.
  7. Unsnap the recliner cable (1) from the folding mechanism (3).
  8. Remove the front recliner attachment bolts (4).
  9. Remove the recliner screw (5).

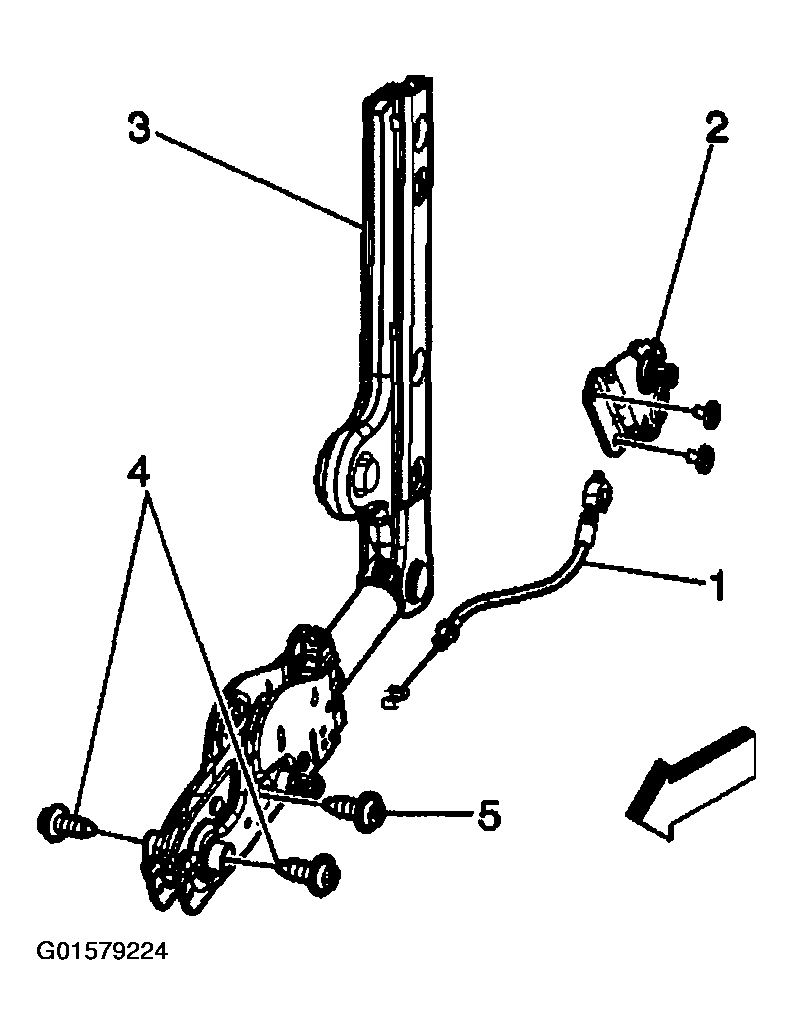

    Fig 3: Recliner Cable, Folding Mechanism, Attachment Bolts & Screw
    G01579224Courtesy of GENERAL MOTORS CORP.
  10. Remove the U-channel (1).
  11. Remove the drive cable, if equipped with a power recliner.
  12. Disconnect the recliner cable from the recliner mechanism.
  13. Remove the recliner from the seat frame.

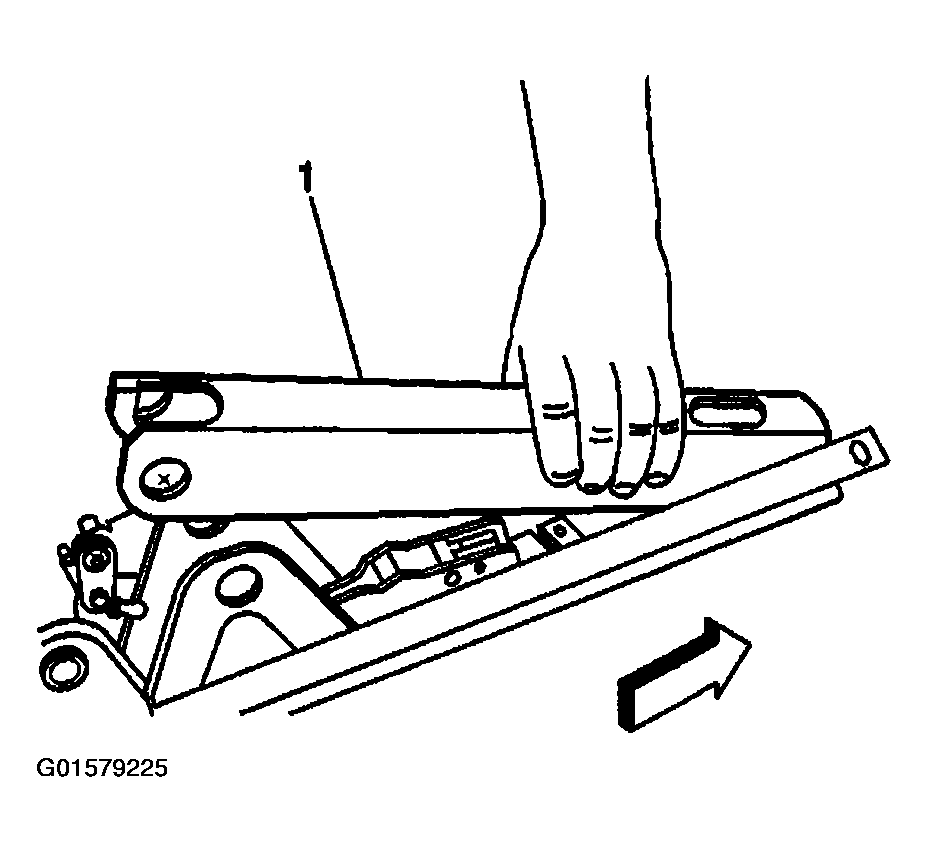

    Fig 4: Removing U-Channel
    G01579225Courtesy of GENERAL MOTORS CORP.
