Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the recliner cable to the recliner mechanism.
  2. Install the drive cable, if equipped with a power recliner.
  3. Install the U-channel (1).

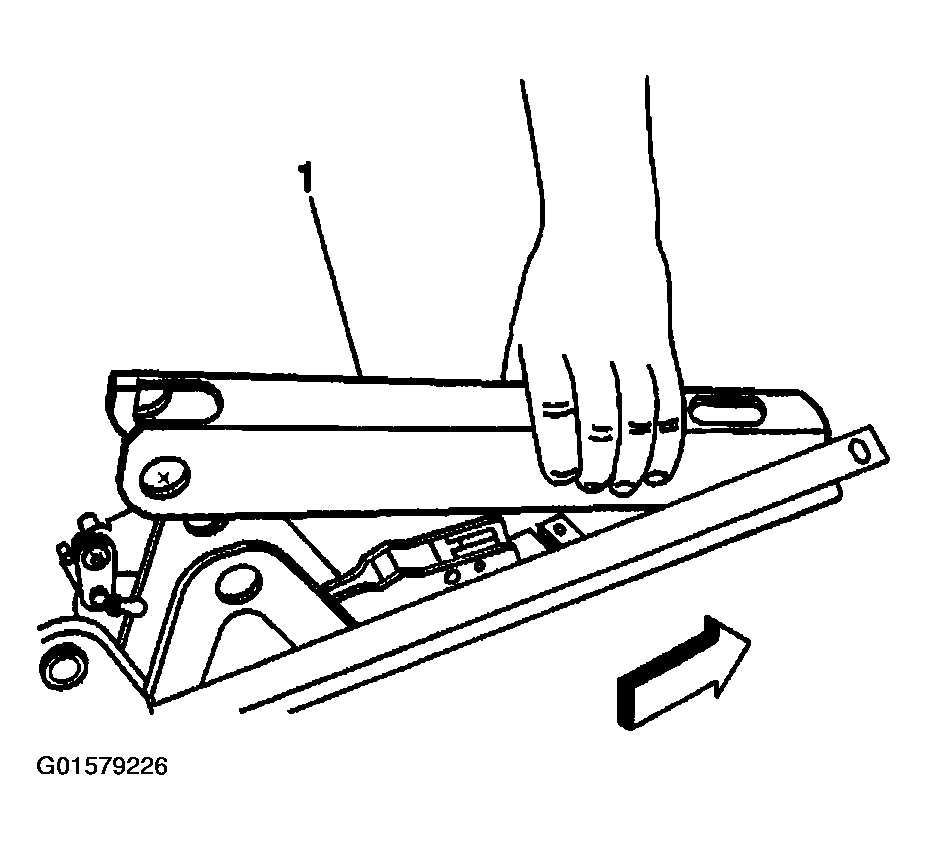

    Fig 1: Installing U-Channel
    G01579226Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the recliner screw (5).

    Tighten

    Tighten the screw to 10 N.m (89 lb in).

  5. Install the front recliner attachment bolts (4).

    Tighten

    Tighten the bolts to 53 N.m (39 lb ft).

  6. Attach the recliner cable (1) to the folding mechanism (3).

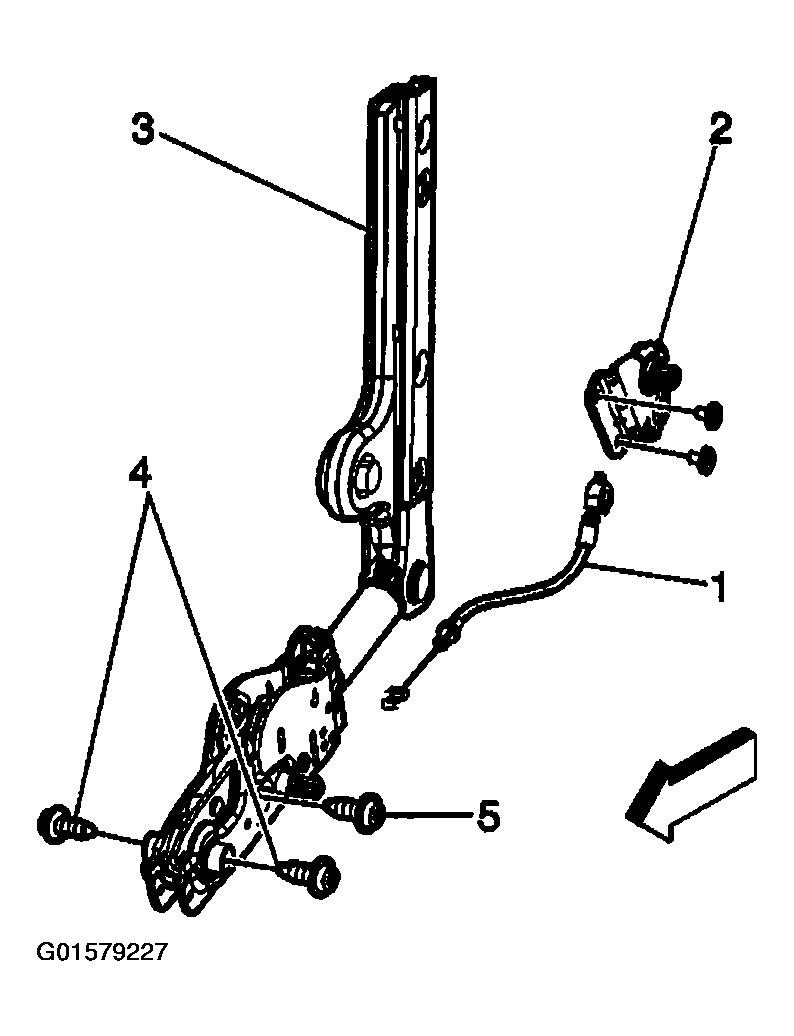

    Fig 2: Recliner Cable, Folding Mechanism, Attachment Bolts & Screw
    G01579227Courtesy of GENERAL MOTORS CORP.
  7. Attach the bolts holding the seat back folding mechanism.

    Tighten

    Tighten the bolts to 21 N.m (15 lb ft).

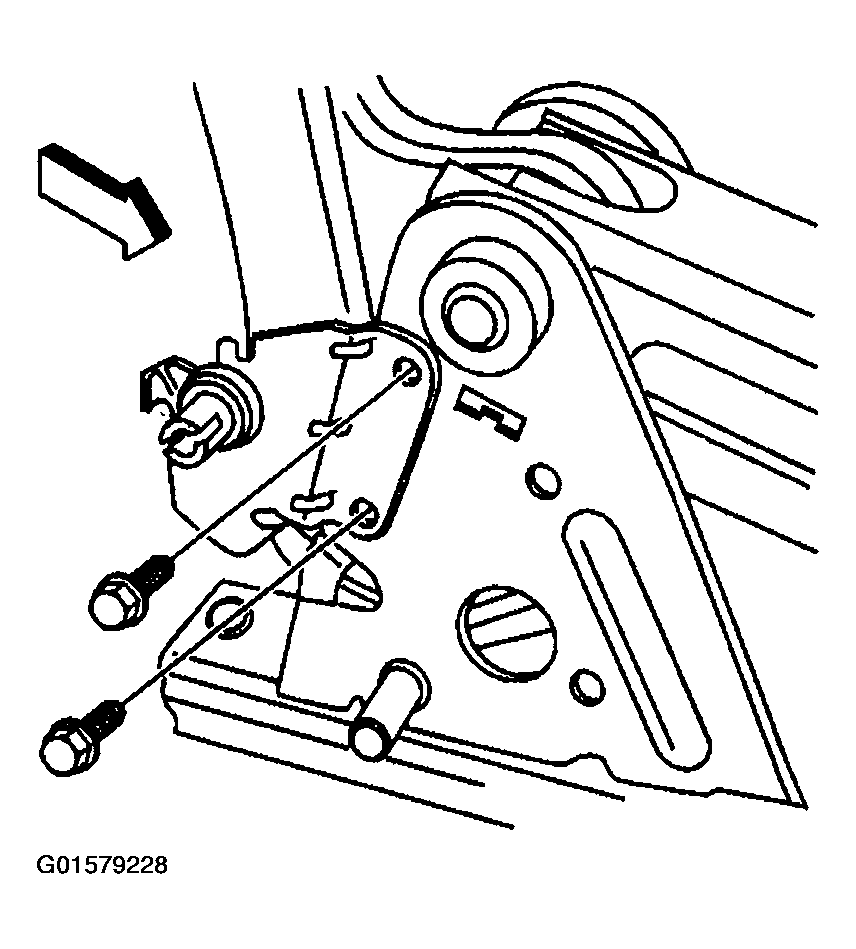

    Fig 3: Installing Bolts Holding Seat Back Folding Mechanism
    G01579228Courtesy of GENERAL MOTORS CORP.
  8. Install the outboard pivot bolt.

    Tighten

    Tighten the bolt to 35 N.m (26 lb ft).

  9. Install the seat back frame. Refer to Seat Back Frame Replacement-Front   .
  10. Install the seat cushion frame. Refer to Seat Cushion Frame Replacement-Front   .
  11. Install the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  12. Install the front seat in the vehicle. Refer to Seat Replacement-Front Bucket   .

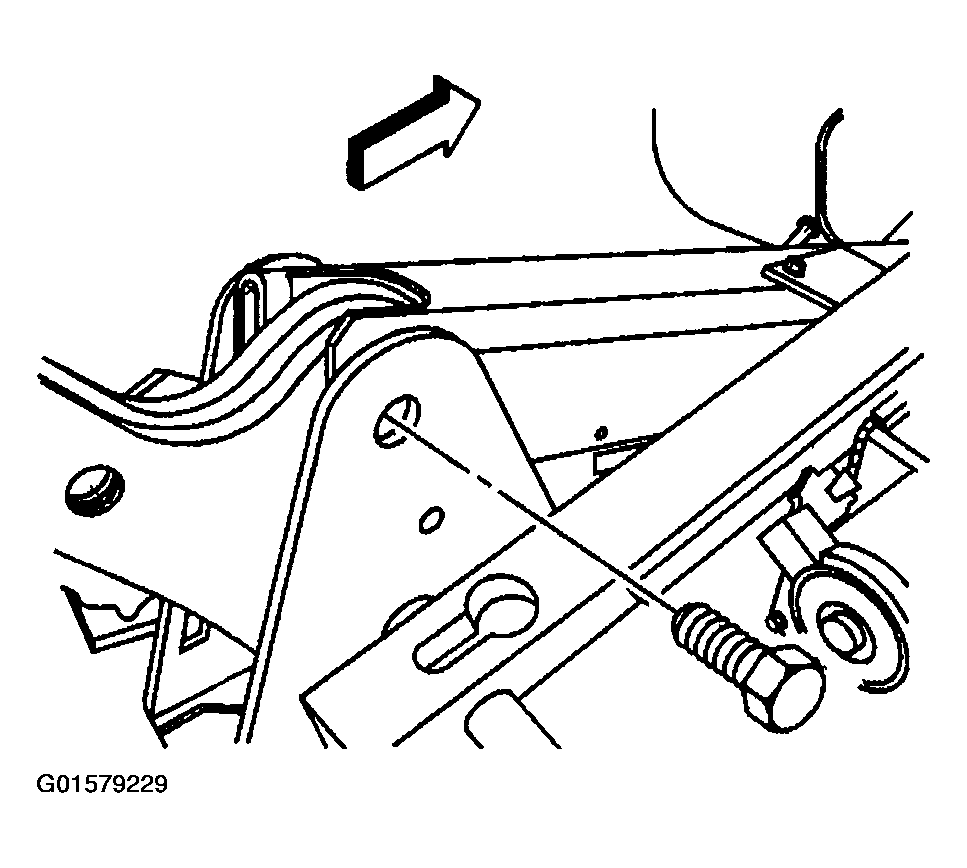

    Fig 4: Installing Outboard Pivot Bolt
    G01579229Courtesy of GENERAL MOTORS CORP.
