Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement-Front Bucket   .
  2. Unsnap the front tabs, then the rear tabs of the track cover.
  3. Remove the track cover from the vehicle.

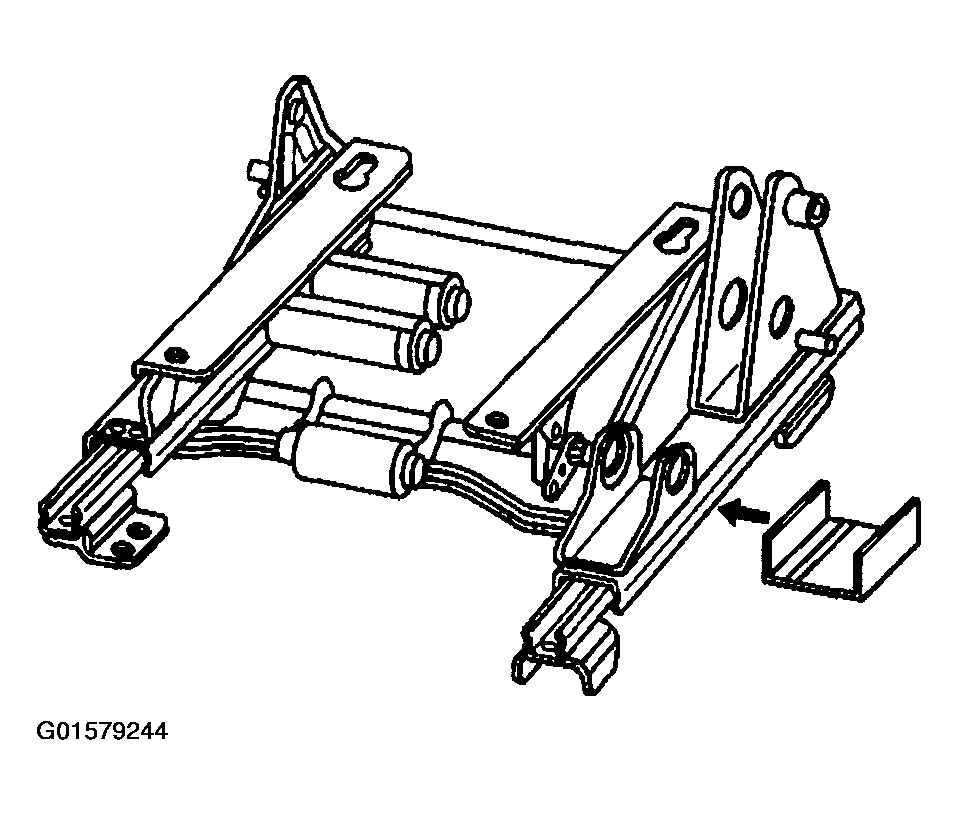

    Fig 1: Front Seat Adjuster Track Cover
    G01579244Courtesy of GENERAL MOTORS CORP.
